5PCS HSS Drills Set Inch Straight Flute Black and Gold HSS Step Drill Bit in Aluminum Case (SED-SD5-BG)

SHANGHAI EASYDRILL INDUSTRIAL CO., LTD.
  • Customized：Customized
  • Standard：DIN
  • Length：Jobber-length
  • Type：Center Drill Bit
  • Material：High Speed Steel
  • Usage：Metal Drilling

Base Info

  • Model NO.：SED-SD5-BG
  • Dia Size：1mm-20mm
  • Production Art：Fully Ground or Forged
  • Min Quantity：100PCS
  • Packaging：PVC Bag,Setcase,Plastic Box,Metal Box
  • Surface Finish：Black and Amber
  • Transport Package：PVC Bag, Blister Card, Plastic Box, Metal Box etc
  • Specification：ISO9001, SGS, CE
  • Trademark：EASYDRILL
  • Origin：China
  • HS Code：820750900
  • Production Capacity：200, 000PCS,Month

Description

Procuct Name

5Pcs Straight Flute  black and amber surface HSS Step Drill Bit

for Multiple Hole in Aluminum Case

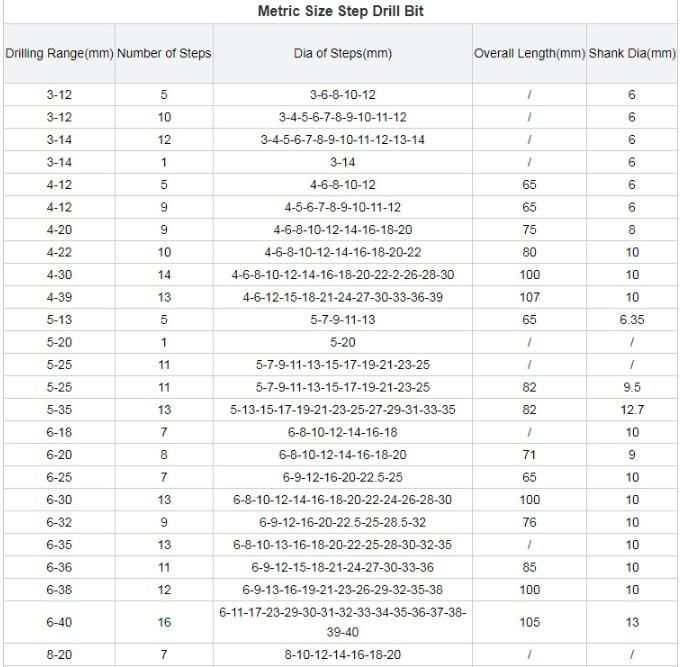

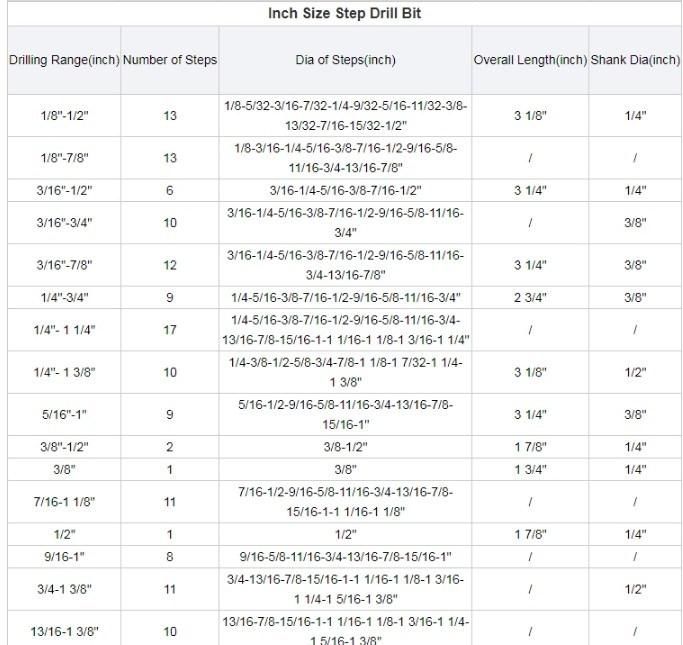

Sizes1/8-1/2", 3/16-1/2", 3/16-7/8", 1/4-3/4", 1/4-1 3/8"   (Metric Size is Available)MaterialHSS    (Cobalt M35 is Available)Flute TypeStraight Flute   (Spiral Flute is Available)Flute NumberTwo Flutes   (Single Flute, Three Flutes are Available)Shank Three Flats Shank   (Quick Change Hex Shank, Round Shank, Double R Shank are Available)Surface FinishBlack & Amber   (TiN, Bright, Co-coated, Black Oxide, Black & Bright, TiAIN are Available)Package5Pcs in Aluminum Case   Features

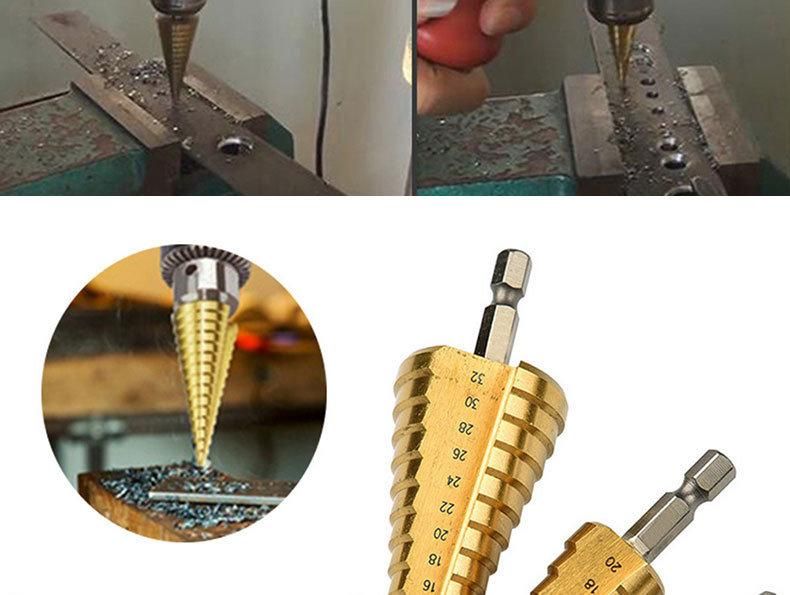

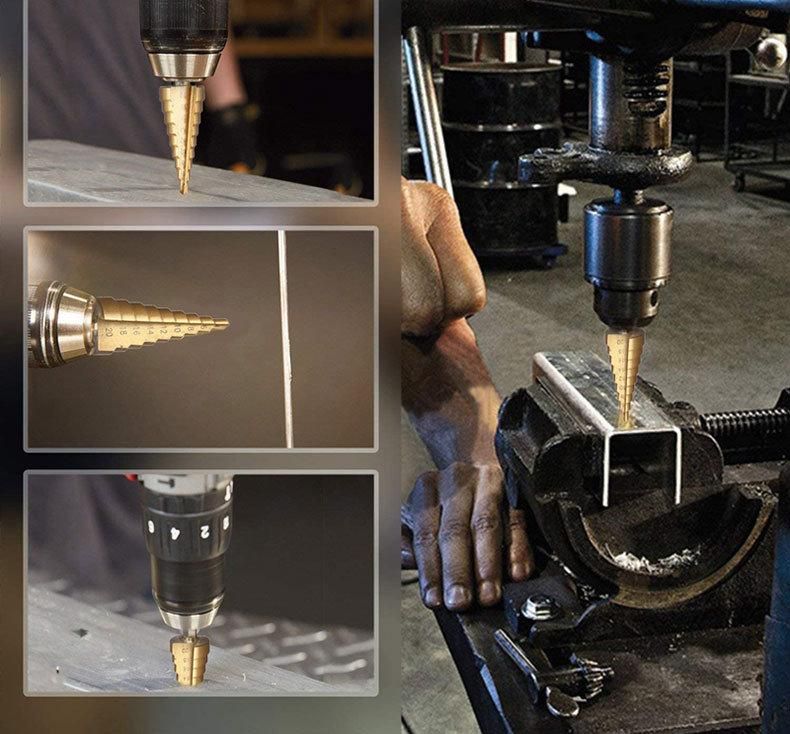

1. Step drill bits are perfect for drilling and enlarging multiple-holes in thin sections of sheet metals, pipes, plexiglass, plastics, wood up to a thickness of 5mm.

2. 135° Split Point Tip: increases cutting speed with self-centering and the drills do not run off center.

3. A variety of hole diameters can be drilled using only one tool.

4. The dimension of drilled hole is exact.

5. Two Flute Design: provides longer life and better chip removal.

6. Only for rotary use.
