135 Degree DIN345 HSS Morse Taper Shank Twist Drill Bit for Metal Drilling (SED-HTSB)
SHANGHAI EASYDRILL INDUSTRIAL CO., LTD.- Customized：Customized
- Standard：DIN
- Length：Taper-length
- Type：Twist Drill Bit
- Material：High Speed Steel
- Usage：Metal Drilling
Base Info
- Model NO.：SED-HTSB
- Shank：Taper Shank
- Manufacturing Art：Roll Forged
- Surface Finish：Black Oxide
- Point Angle：135 or 118
- Min Qty：200PCS
- Transport Package：Oil Paper, Paper Box, Plastic Tube, Set Cases
- Specification：SGS
- Trademark：EASYDRILL
- Origin：China
- HS Code：820750900
- Production Capacity：20, 000PCS,Month
Description
DIN345 (ANSI, DIN1870, DIN341 are Also Available)
No.1 to No.6

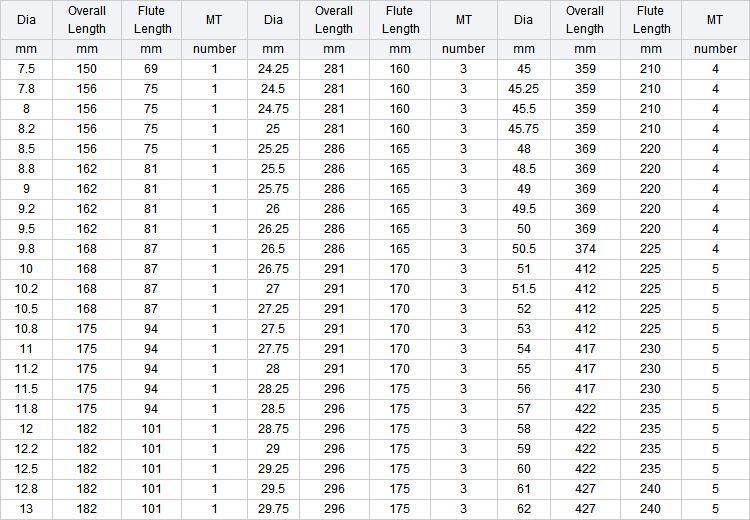

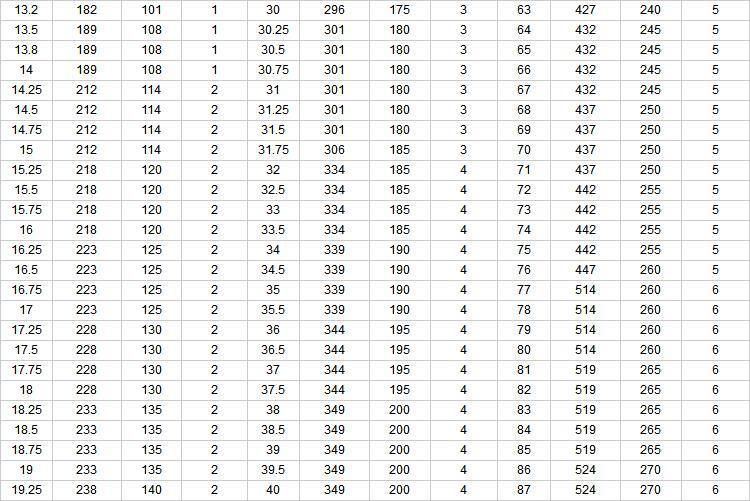

7.5mm - 100mm or 3/8'' - 4''
Type N, Right Hand Cutting
2. Taper Shank Drills have a tanged conical shank to fit directly into the tapered holes of drill press spindles, driving sleeves or sockets.
3. High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials
4. Spiral flutes are constructed with a higher flute angle to remove chips more easily.
5.Black Flute and White body, anti-rusted and reduce friction for fast drilling speed
6. Usage for Metal Drilling, cast steel, grey cast iron, malleable iron, sintered metal and low hardness alloyed materials
Details:

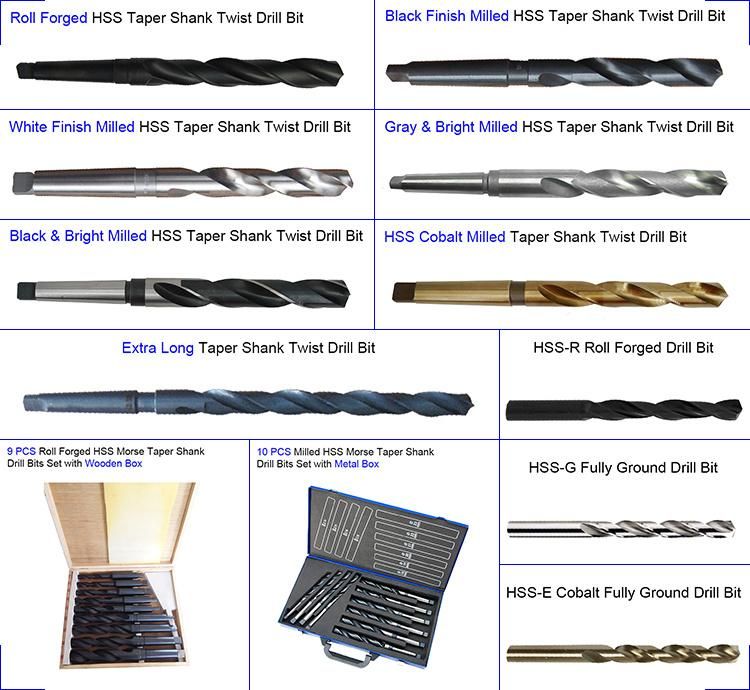

1. Process: 6.0-33.0mm Roll Forged, 31.0-100.0mm Milled
2. Standard: Strictly as per DIN345 specification requested.
Point Angle:118 angle and 135angle
3. Application: Drilling deep hole on Non-Alloy Steel, Alloy Steel, Grey Cast Iron, Malleable Cast Iron, special aluminum or magnesium alloy.
4.118degree or 135 degree
5. Package: One PC into a Paper Tube or Plastic Tube, also Set Cases are available.
