Drilling Tools

Home > Product > Drill Bit

DIN8375 90 Degree HSS Jobber Drills Subland Taper Shank Twist Drill Bit for Metal Drilling and Kreg Pocket Hole Jigging (SED-HTSS)

SHANGHAI EASYDRILL INDUSTRIAL CO., LTD.
  • Customized：Customized
  • Standard：DIN
  • Length：Taper-length
  • Type：Twist Drill Bit
  • Material：High Speed Steel
  • Usage：Metal Drilling

Base Info

  • Model NO.：SED-HTSS
  • Shank：Taper Shank
  • Manufacturing Art：Rolled
  • Surface Finish：Black
  • Angle：135 or 118
  • Min Qty：200PCS
  • Transport Package：Oil Paper, Paper Box, Plastic Tube, Set Cases
  • Specification：SGS
  • Trademark：EASYDRILL
  • Origin：China
  • HS Code：820750900
  • Production Capacity：20, 000PCS,Month

Description

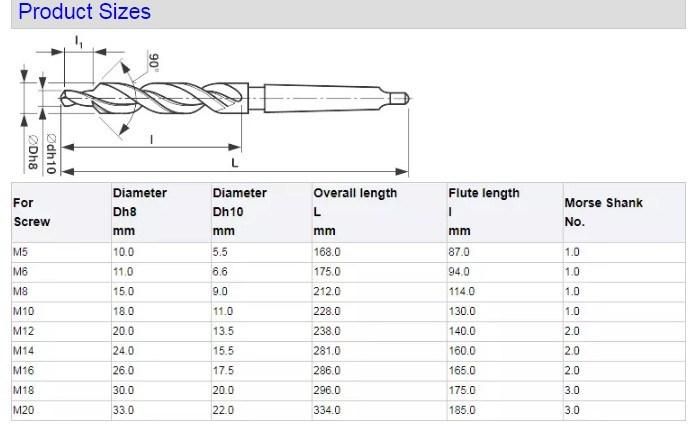

Procuct NameDIN8375 Taper Shank 90 Degree HSS Subland Two Steps Twist Drill Bit for Metal DrillingMaterialHSSProcessFully GroundStandardDIN8375  (DIN8374, DIN8376 are Available)SizeM5 - M20Point Angle90 Degree  (180 Degree is Available)Shank Taper Shank  (Straight Shank, Hex Shank are Available)Surface FinishBlack Oxide  (Bright, Titanium Coated are Available)Package10/5 Pcs in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell.Features1. A Subland Drill is basically two drills of different diameters combined into one tool, retaining the individual characteristics and proper geometry for each diameter.
2. The dual cutting diameters produce holes properly sized for each size screw.
3. Recommended for use with corded high-rpm drills.
4. The Subland Drill provides superior tool life compared to that of a basic step drill.
5. Useful for applications like cabinet making, fastening, woodworking, and other home and professional applications.

Details:
1. Process: 6.0-33.0mm Roll Forged, 31.0-100.0mm Milled
2. Standard: Strictly as per DIN345 specification requested.
Point Angle:118 angle and 135angle
3. Application: Drilling deep hole on Non-Alloy Steel, Alloy Steel, Grey Cast Iron, Malleable Cast Iron, special aluminum or magnesium alloy.
4.118degree or 135 degree
5. Package: One PC into a Paper Tube or Plastic Tube, also Set Cases are available.
