• Model NO.：SED-HTSW
• Shank：Taper Shank
• Manufacturing Art：Forged
• Surface Finish：White
• Angle：135 or 118
• Min Qty：100PCS
• Transport Package：Oil Paper, Paper Box, Plastic Tube, Set Cases
• Specification：SGS
• Trademark：EASYDRILL
• Origin：China
• HS Code：820750900
• Production Capacity：20, 000PCS,Month

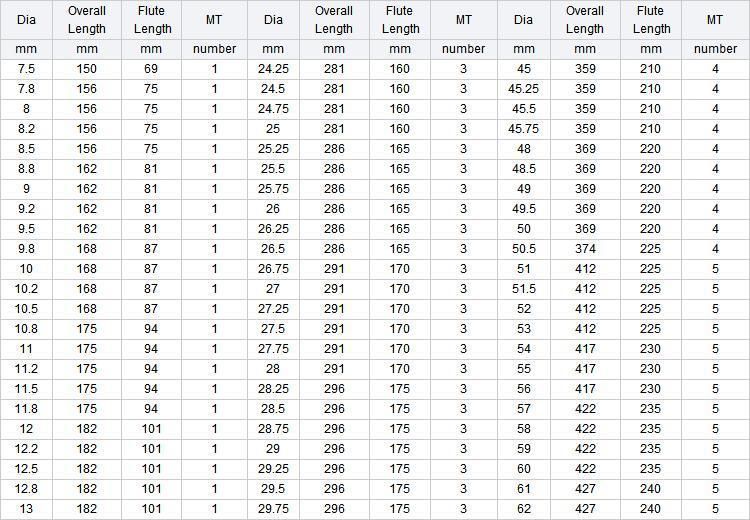

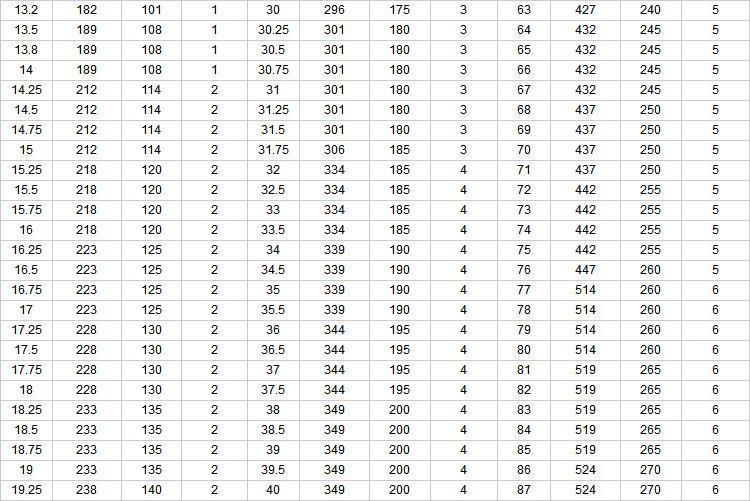

DIN341  (ANSI, DIN345, DIN1870 are Also Available)

No.1 to No.4

1. Precise dimension,long life and high efficiency.

2. High-speed steel (HSS) provides hardness for wear resistance

3. Bright finish increases chip flow in softer materials such as aluminum, wood and plastic

4. Self-centering 118-degree notched point penetrates material without a pilot hole more easily than a conventional point, and maintains a sharp cutting edge

5. Morse taper shank allows the tool to be inserted directly into the machine's spindle to facilitate high-torque applications such as large cut diameters

6. When run in a counterclockwise direction (right-hand cut) spiral fluted tools evacuate chips up and out of the cut to reduce clogging

7. Designed to perform in a broad range of materials in the iron and steel families

Details:
1. Process: 6.0-33.0mm Roll Forged, 31.0-100.0mm Milled
2. Standard: Strictly as per DIN345 specification requested.
Point Angle:118 angle and 135angle
3. Application: Drilling deep hole on Non-Alloy Steel, Alloy Steel, Grey Cast Iron, Malleable Cast Iron, special aluminum or magnesium alloy.
4.118degree or 135 degree
5. Package: One PC into a Paper Tube or Plastic Tube, also Set Cases are available.
