DIN345 Forged HSS Jobber Drills HSS Morse Taper Shank Twist Drill Bit for Metal Drilling (SED-HTSF)
SHANGHAI EASYDRILL INDUSTRIAL CO., LTD.- Customized：Customized
- Standard：DIN
- Length：Taper-length
- Type：Twist Drill Bit
- Material：High Speed Steel
- Usage：Metal Drilling
Base Info
- Model NO.：SED-HTSF
- Shank：Taper Shank
- Manufacturing Art：Forged
- Surface Finish：Black
- Angle：135 or 118
- Min Qty：100PCS Per Size
- Transport Package：Oil Paper, Paper Box, Plastic Tube, Set Cases
- Specification：SGS
- Trademark：EASYDRILL
- Origin：China
- HS Code：820750900
- Production Capacity：20, 000PCS,Month
Description

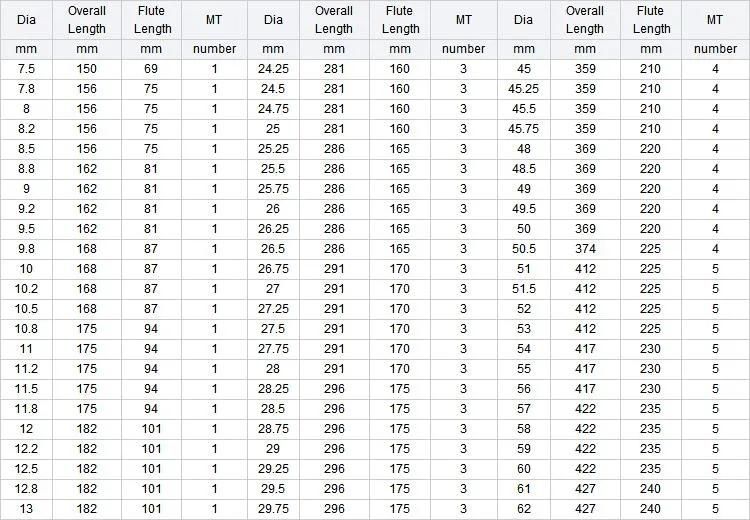

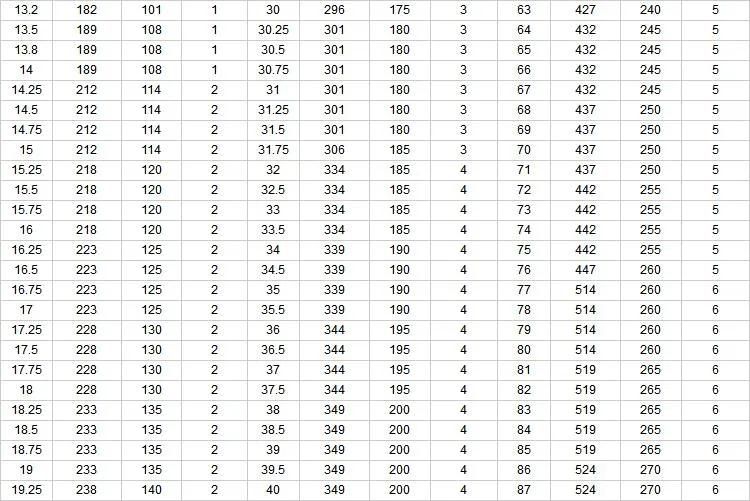

ANSI (DIN345, DIN341, DIN1870 are Also Available)
No.1 to No.6
1. Precise dimension,long life and high efficiency.
2. High-speed steel (HSS) provides hardness for wear resistance
3. Black Flute and White body, anti-rusted and reduce friction for fast drilling speed
4. Self-centering 118-degree notched point penetrates material without a pilot hole more easily than a conventional point, and maintains a sharp cutting edge
5. Morse taper shank allows the tool to be inserted directly into the machine's spindle to facilitate high-torque applications such as large cut diameters
6. When run in a counterclockwise direction (right-hand cut) spiral fluted tools evacuate chips up and out of the cut to reduce clogging
7. Designed to perform in a broad range of materials in the iron and steel families
1. Process: 6.0-33.0mm Roll Forged, 31.0-100.0mm Milled
2. Standard: Strictly as per DIN345 specification requested.
Point Angle:118 angle and 135angle
3. Application: Drilling deep hole on Non-Alloy Steel, Alloy Steel, Grey Cast Iron, Malleable Cast Iron, special aluminum or magnesium alloy.
4.118degree or 135 degree
5. Package: One PC into a Paper Tube or Plastic Tube, also Set Cases are available.
