HSS M2 Drill Bit HSS Drill P6m5 Morse Taper Shank Twist Drills for Metal Drilling (SED-HTSM2)

SHANGHAI EASYDRILL INDUSTRIAL CO., LTD.
  • Customized：Customized
  • Standard：DIN
  • Length：Taper-length
  • Type：Twist Drill Bit
  • Material：High Speed Steel
  • Usage：Metal Drilling

Base Info

  • Model NO.：SED-HTSM2
  • Shank：Morse Taper Shank
  • Manufacturing Art：Forged
  • Surface Finish：Black
  • Angle：135 or 118
  • Min Qty：100PCS,Size
  • Transport Package：Oil Paper, Paper Box, Plastic Tube, Set Cases
  • Specification：SGS
  • Trademark：EASYDRILL
  • Origin：China
  • HS Code：820750900
  • Production Capacity：20, 000PCS,Month

Description

Procuct Name Gost Standard HSS P6M5 Morse Taper Shank Twist Drill Bit for Metal DrillingMaterialHSS 4241 4341 6542-M2 (Co 5% M35 is Available)ProcessMilled (Roll Forged is Available)StandardDIN345 - Gost 10903-77  (ANSI, DIN1870, DIN341 are Also Available)MT No.

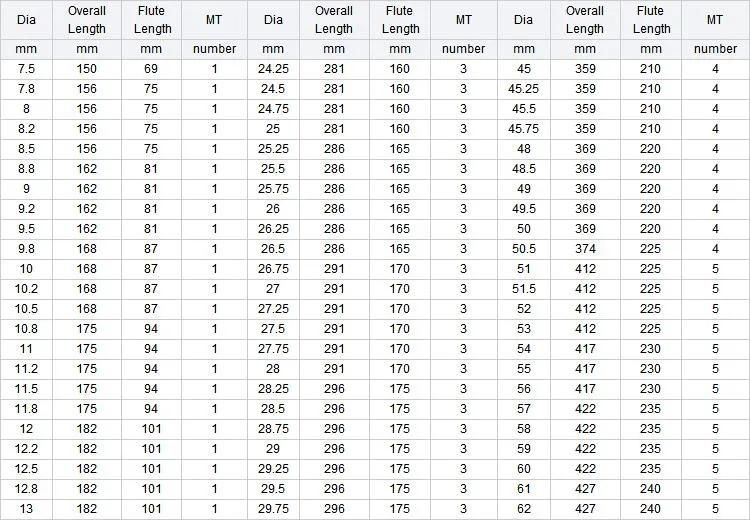

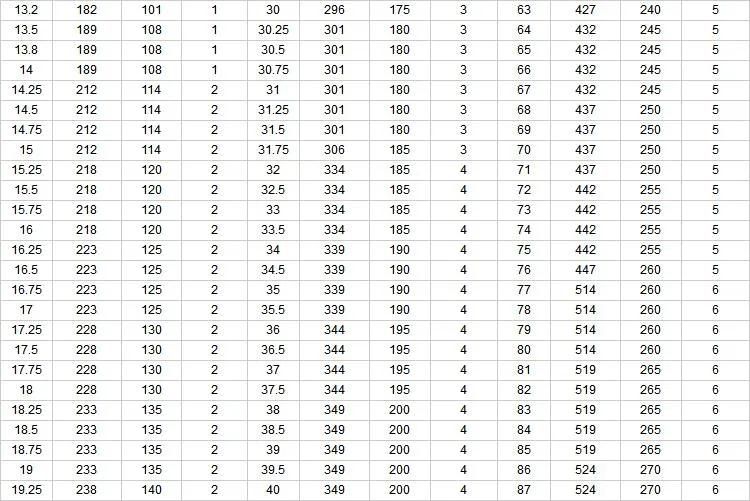

No.1 to No.6

Size

7.5mm - 100mm or 3/8'' - 4''

Flute Type

Type N, Right Hand Cutting

Point Angle118 Degree (135 Degree Split Point, Thinning Point are Available)Surface FinishGray & Bright (Black Oxide, Black & White, Bright, Amber Color, Titanium Coating are Also available)PackageOne Piece in Paper Box, Plastic Box, or Wooden BoxFeatures1. Taper Shank Drills have a tanged conical shank to fit directly into the tapered holes of drill press spindles, driving sleeves or sockets.They are designed for general purpose drlling in ferrous or non-ferrous metal.
2. High-speed steel tools are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance.
3. Spiral flutes are constructed with a higher flute angle to remove chips more easily.
4. High performance HSS twist drill bit with morse taper shank for high precise drilling of larger bore diameter.
5. Heavy-duty geometry for drilling in tough, high-tensile materials under extreme operating conditions

Details:

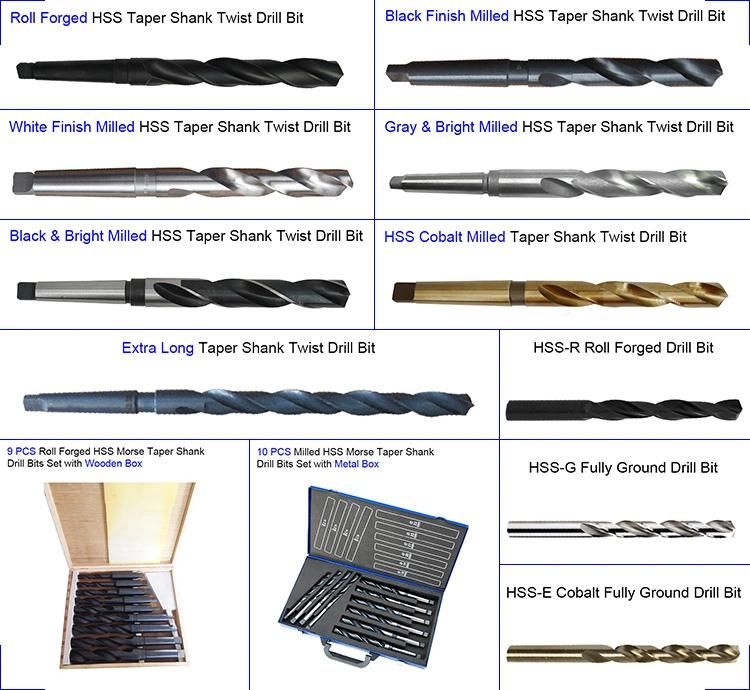

1. Process: 6.0-33.0mm Roll Forged, 31.0-100.0mm Milled
2. Standard: Strictly as per DIN345 specification requested.
Point Angle:118 angle and 135angle
3. Application: Drilling deep hole on Non-Alloy Steel, Alloy Steel, Grey Cast Iron, Malleable Cast Iron, special aluminum or magnesium alloy.
4.118degree or 135 degree
5. Package: One PC into a Paper Tube or Plastic Tube, also Set Cases are available.
