Black and Bright DIN1412 HSS Jobber Drills Morse Taper Shank Twist Drill Bit for Metal Drilling (SED-HTS1412)

SHANGHAI EASYDRILL INDUSTRIAL CO., LTD.
  • Customized：Customized
  • Standard：DIN
  • Length：Taper-length
  • Type：Twist Drill Bit
  • Material：High Speed Steel
  • Usage：Metal Drilling

Base Info

  • Model NO.：SED-HTS1412
  • Shank：Taper Shank
  • Manufacturing Art：Roll Forged
  • Surface Finish：Black
  • Point Angle：135 or 118
  • Min Qty：200PCS
  • Transport Package：Oil Paper, Paper Box, Plastic Tube, Set Cases
  • Specification：SGS
  • Trademark：EASYDRILL
  • Origin：China
  • HS Code：820750900
  • Production Capacity：20, 000PCS,Month

Description

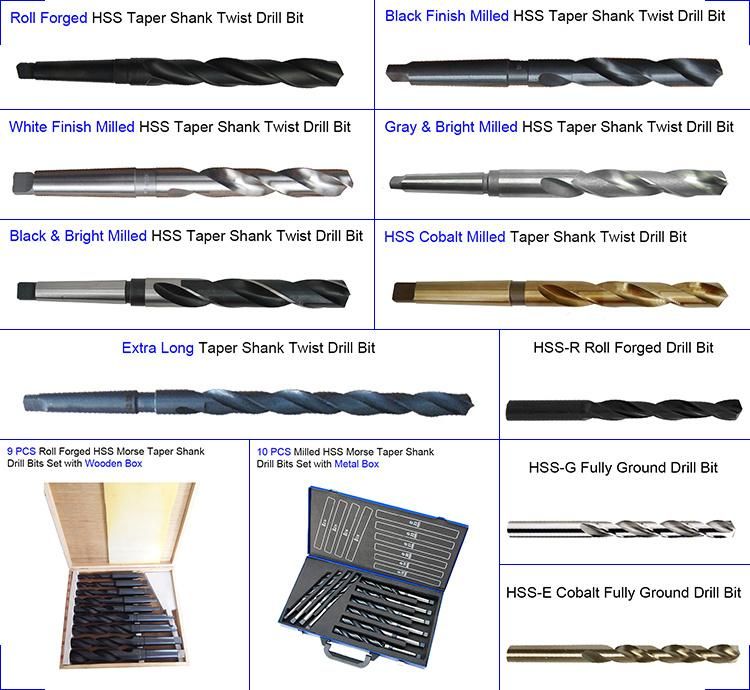

Procuct NameBlack and Bright DIN1412 Form A Thinning Point HSS Taper Shank Drill Bits for Metal DrillingMaterialHSS 4241 4341 6542-M2 (Cobalt 5% M35 is Available)ProcessMilled (Roll Forged is Available)StandardDIN345  (ANSI, DIN1870, DIN341 are Also Available)MT No.No.1 to No.6Size7.5mm - 100mm or 3/8'' - 4''Flute TypeType N, Right Hand CuttingPoint AngleForm A Thinning Point (135 Degree Split Point, 118 Degree are Available)Surface FinishBlack & White (Black Oxide, Gray & Bright, Bright, Amber Color, Titanium Coating are Also available)PackageOne Piece in Paper Box, Plastic Box, or Wooden BoxFeatures1. 118° Form A degree  notch point reduces thrust forces and easier penetration.
2. High-speed steel tools are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance.
3. High performance HSS twist drill bit with morse taper shank for high precise drilling of larger bore diameter.
4. Taper shank drills are designed to give maximum performance in drilling many different materials, under a wide range of applications.
5. Black & Bright  treatment adds lubricity and creates small pockets on the surface of the tool that act to hold coolant near the cutting edge.
6. When run in a counterclockwise direction (right-hand cut) spiral fluted tools evacuate chips up and out of the cut to reduce clogging

Details:
1. Process: 6.0-33.0mm Roll Forged, 31.0-100.0mm Milled
2. Standard: Strictly as per DIN345 specification requested.
Point Angle:118 angle and 135angle
3. Application: Drilling deep hole on Non-Alloy Steel, Alloy Steel, Grey Cast Iron, Malleable Cast Iron, special aluminum or magnesium alloy.
4.118degree or 135 degree
5. Package: One PC into a Paper Tube or Plastic Tube, also Set Cases are available.
