• Model NO.：2329
• Carbide Type：Virgin Yg9
• Steel Type：40cr
• Flute Type：4h-Plus
• Cutting Head：SSD Patented Cross 4cutter
• Marking：Stamped
• Surface Treatment：Shot-Peened
• Shank Type：SDS Plus
• Welding Type：AVS. (Automatic Vacuum Soldering)
• Certificated：Bosch Audited SDS-Plus Logo
• Transport Package：Clip Hanger, Color Paper Hanger, Paper Box, Tubes
• Specification：5mm to 32mm diameter
• Trademark：OEM, HTT
• Origin：China
• HS Code：8207509000
• Production Capacity：2400000PCS,Year

Basic Info.

Model NO. 2329 Carbide Type Virgin Yg9 Steel Type 40cr Flute Type 4h-Plus Cutting Head SSD Patented Cross 4cutter Marking Stamped Surface Treatment Shot-Peened Shank Type SDS Plus Welding Type AVS. (Automatic Vacuum Soldering) Certificated Bosch Audited SDS-Plus Logo Transport Package Clip Hanger, Color Paper Hanger, Paper Box, Tubes Specification 5mm to 32mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 2400000PCS/Year

Product Description

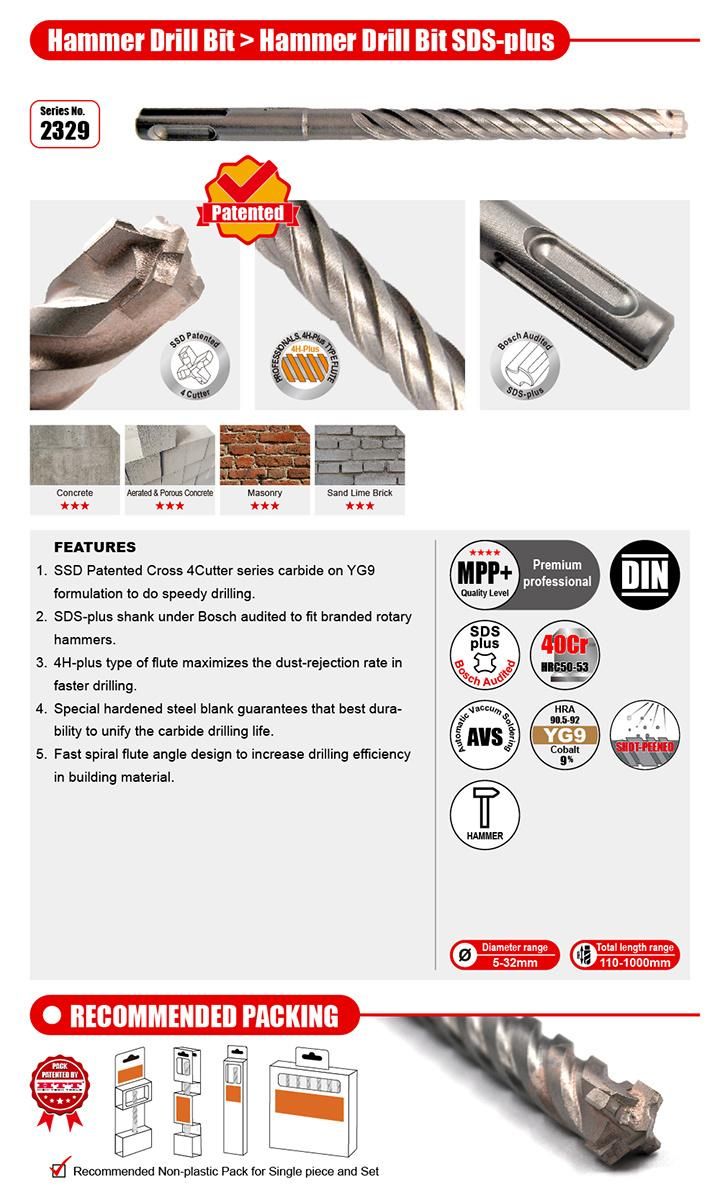

*SSD Patented Cross 4Cutter Hammer Drill Bit SDS plus DIN standard for drilling concrete brick stone cement etc.

*Virgin YG9 formulation Cross tip for concrete stone brick drilling.

*4H-plus type of flute design maximizes drilling dust rejection rate without stuffed problem, to increase the drilling speed with more comfortable operation feelings.

*Lower vibration for an easy longer-time drilling job
of
*SDS-plus shank all 100% pass Bosch audited SDS-plus gouge inspection with the stamped logo of SDS-plus audited by Bosch.

*SGS-approved anti-rust oil treatment and color paints to protect the final users under the Reach standard.




*Other special sizes are also available on the customers' special requests.

Item Number	Diameter(mm)	Working Length(mm)	Overall Length(mm)
2329.050110	5	60	110
2329.055110	5.5	60	110
2329.060110	6	60	110
2329.065110	6.5	60	110
2329.070110	7	60	110
2329.080110	8	60	110
2329.090110	9	60	110
2329.100110	10	60	110
2329.110110	11	60	110
2329.050160	5	110	160
2329.055160	5.5	110	160
2329.060160	6	110	160
2329.065160	6.5	110	160
2329.070160	7	110	160
2329.080160	8	110	160
2329.090160	9	110	160
2329.100160	10	110	160
2329.110160	11	110	160
2329.120160	12	110	160
2329.130160	13	110	160
2329.140160	14	110	160
2329.150160	15	110	160
2329.160160	16	110	160
2329.180160	18	110	160
2329.190160	19	110	160
2329.200160	20	110	160
2329.220160	22	110	160
2329.240160	24	110	160
2329.250160	25	110	160
2329.260160	26	110	160
2329.280160	28	110	160
2329.300160	30	110	160
2329.320160	32	110	160
2329.050180	5	130	180
2329.055180	5.5	130	180
2329.060180	6	130	180
2329.065180	6.5	130	180
2329.080180	8	130	180
2329.100180	10	130	180
2329.050210	5	160	210
2329.055210	5.5	160	210
2329.060210	6	160	210
2329.065210	6.5	160	210
2329.070210	7	160	210
2329.080210	8	160	210
2329.090210	9	160	210
2329.100210	10	160	210
2329.110210	11	160	210
2329.120210	12	160	210
2329.130210	13	160	210
2329.140210	14	160	210
2329.150210	15	160	210
2329.160210	16	160	210
2329.180210	18	160	210
2329.190210	19	160	210
2329.200210	20	160	210
2329.220210	22	160	210
2329.240210	24	160	210
2329.250210	25	160	210
2329.260210	26	160	210
2329.280210	28	160	210
2329.300210	30	160	210
2329.320210	32	160	210
2329.050260	5	210	260
2329.055260	5.5	210	260
2329.060260	6	210	260
2329.065260	6.5	210	260
2329.070260	7	210	260
2329.080260	8	210	260
2329.090260	9	210	260
2329.100260	10	210	260
2329.110260	11	210	260
2329.120260	12	210	260
2329.130260	13	210	260
2329.140260	14	210	260
2329.150260	15	210	260
2329.160260	16	210	260
2329.180260	18	210	260
2329.190260	19	210	260
2329.200260	20	210	260
2329.220260	22	210	260
2329.240260	24	210	260
2329.250260	25	210	260
2329.260260	26	210	260
2329.280260	28	210	260
2329.300260	30	210	260
2329.320260	32	210	260
2329.050310	5	260	310
2329.055310	5.5	260	310
2329.060310	6	260	310
2329.065310	6.5	260	310
2329.070310	7	260	310
2329.080310	8	260	310
2329.090310	9	260	310
2329.100310	10	260	310
2329.110310	11	260	310
2329.120310	12	260	310
2329.130310	13	260	310
2329.140310	14	260	310
2329.150310	15	260	310
2329.160310	16	260	310
2329.180310	18	260	310
2329.190310	19	260	310
2329.200310	20	260	310
2329.220310	22	260	310
2329.240310	24	260	310
2329.250310	25	260	310
2329.260310	26	260	310
2329.280310	28	260	310
2329.300310	30	260	310
2329.320310	32	260	310
2329.050350	5	300	350
2329.055350	5.5	300	350
2329.060350	6	300	350
2329.065350	6.5	300	350
2329.070350	7	300	350
2329.080350	8	300	350
2329.090350	9	300	350
2329.100350	10	300	350
2329.110350	11	300	350
2329.120350	12	300	350
2329.130350	13	300	350
2329.140350	14	300	350
2329.150350	15	300	350
2329.160350	16	300	350
2329.180350	18	300	350
2329.190350	19	300	350
2329.200350	20	300	350
2329.220350	22	300	350
2329.240350	24	300	350
2329.250350	25	300	350
2329.260350	26	300	350
2329.280350	28	300	350
2329.300350	30	300	350
2329.320350	32	300	350
2329.050410	5	360	410
2329.055410	5.5	360	410
2329.060410	6	360	410
2329.065410	6.5	360	410
2329.070410	7	360	410
2329.080410	8	360	410
2329.090410	9	360	410
2329.100410	10	360	410
2329.110410	11	360	410
2329.120410	12	360	410
2329.130410	13	360	410
2329.140410	14	360	410
2329.150410	15	360	410
2329.160410	16	360	410
2329.180410	18	360	410
2329.190410	19	360	410
2329.200410	20	360	410
2329.220410	22	360	410
2329.240410	24	360	410
2329.250410	25	360	410
2329.260410	26	360	410
2329.280410	28	360	410
2329.300410	30	360	410
2329.320410	32	360	410
2329.050460	5	410	460
2329.055460	5.5	410	460
2329.060460	6	410	460
2329.065460	6.5	410	460
2329.070460	7	410	460
2329.080460	8	410	460
2329.090460	9	410	460
2329.100460	10	410	460
2329.110460	11	410	460
2329.120460	12	400	460
2329.130460	13	400	460
2329.140460	14	400	460
2329.150460	15	400	460
2329.160460	16	400	460
2329.180460	18	400	460
2329.190460	19	400	460
2329.200460	20	400	460
2329.220460	22	400	460
2329.240460	24	400	460
2329.250460	25	400	460
2329.260460	26	400	460
2329.280460	28	400	460
2329.300460	30	400	460
2329.320460	32	400	460
2329.060550	6	500	550
2329.065550	6.5	500	550
2329.070550	7	500	550
2329.080550	8	500	550
2329.090550	9	500	550
2329.100550	10	500	550
2329.110550	11	500	550
2329.120550	12	500	550
2329.130550	13	500	550
2329.140550	14	500	550
2329.150550	15	500	550
2329.160550	16	500	550
2329.180550	18	500	550
2329.190550	19	500	550
2329.200550	20	500	550
2329.220550	22	500	550
2329.240550	24	500	550
2329.250550	25	500	550
2329.260550	26	500	550
2329.280550	28	500	550
2329.300550	30	500	550
2329.320550	32	500	550
2329.060600	6	550	600
2329.065600	6.5	550	600
2329.070600	7	550	600
2329.080600	8	550	600
2329.090600	9	550	600
2329.100600	10	550	600
2329.110600	11	550	600
2329.120600	12	550	600
2329.130600	13	550	600
2329.140600	14	550	600
2329.150600	15	550	600
2329.160600	16	550	600
2329.180600	18	550	600
2329.190600	19	550	600
2329.200600	20	550	600
2329.220600	22	550	600
2329.240600	24	550	600
2329.250600	25	550	600
2329.260600	26	550	600
2329.280600	28	550	600
2329.300600	30	550	600
2329.320600	32	550	600
2329.080800	8	750	800
2329.090800	9	750	800
2329.100800	10	750	800
2329.110800	11	750	800
2329.120800	12	750	800
2329.130800	13	750	800
2329.140800	14	750	800
2329.150800	15	750	800
2329.160800	16	750	800
2329.180800	18	750	800
2329.190800	19	750	800
2329.200800	20	750	800
2329.220800	22	750	800
2329.240800	24	750	800
2329.250800	25	750	800
2329.260800	26	750	800
2329.280800	28	750	800
2329.300800	30	750	800
2329.320800	32	750	800
2329.101000	10	950	1000
2329.111000	11	950	1000
2329.121000	12	950	1000
2329.131000	13	950	1000
2329.141000	14	950	1000
2329.151000	15	950	1000
2329.161000	16	950	1000
2329.181000	18	950	1000
2329.191000	19	950	1000
2329.201000	20	950	1000
2329.221000	22	950	1000
2329.241000	24	950	1000
2329.251000	25	950	1000
2329.261000	26	950	1000
2329.281000	28	950	1000
2329.301000	30	950	1000
2329.321000	32	950	1000
