Drilling Tools

Home > Product > Drill Bit

Premium Quality 2cutter Quick Stop Hammer Drill SDS Plus Shank with Hex Shoulder for Bolt Anchor Punching Driving Tube for Concrete Brick Reinforcement Drilling

ZHENJIANG HTT TOOL CO., LTD.
  • Customized：Customized
  • Standard：DIN
  • Length：125mm to 155mm
  • Type：Twist Drill Bit
  • Material：Tungsten Carbide
  • Usage：Masonry Drilling

Base Info

  • Model NO.：WJ722
  • Carbide Type：Virgin Yg9 2cutter
  • Steel Type：40cr
  • Flute Type：U
  • Cutting Head：130degrees Triangle
  • Marking：Laser Marking
  • Surface Treatment：Shot-Peened
  • Shank Type：SDS Plus
  • with Stopper：Yes
  • with Hex Shoulder：Yes to Drive Punching Tube Impact Anchors
  • Welding Type：AVS. (Automatic Vacuum Soldering)
  • Certificated：Pgm, Bosch Audited SDS-Plus Logo
  • Transport Package：Clip Hanger, Color Paper Hanger, Paper Box, Tubes
  • Specification：8mm to 14mm diameter
  • Trademark：OEM, HTT
  • Origin：China
  • HS Code：8207509000
  • Production Capacity：1200000PCS,Year

Description

Basic Info.

Model NO. WJ722 Carbide Type Virgin Yg9 2cutter Steel Type 40cr Flute Type U Cutting Head 130degrees Triangle Marking Laser Marking Surface Treatment Shot-Peened Shank Type SDS Plus with Stopper Yes with Hex Shoulder Yes to Drive Punching Tube Impact Anchors Welding Type AVS. (Automatic Vacuum Soldering) Certificated Pgm, Bosch Audited SDS-Plus Logo Transport Package Clip Hanger, Color Paper Hanger, Paper Box, Tubes Specification 8mm to 14mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 1200000PCS/Year

Product Description

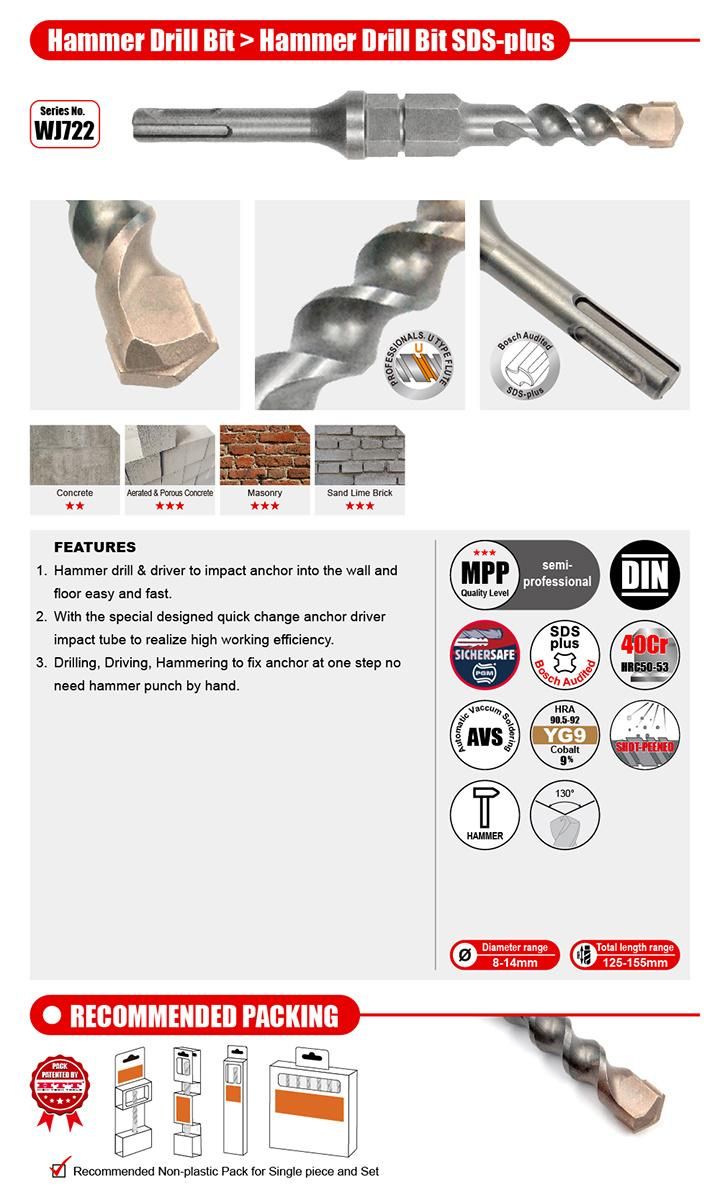

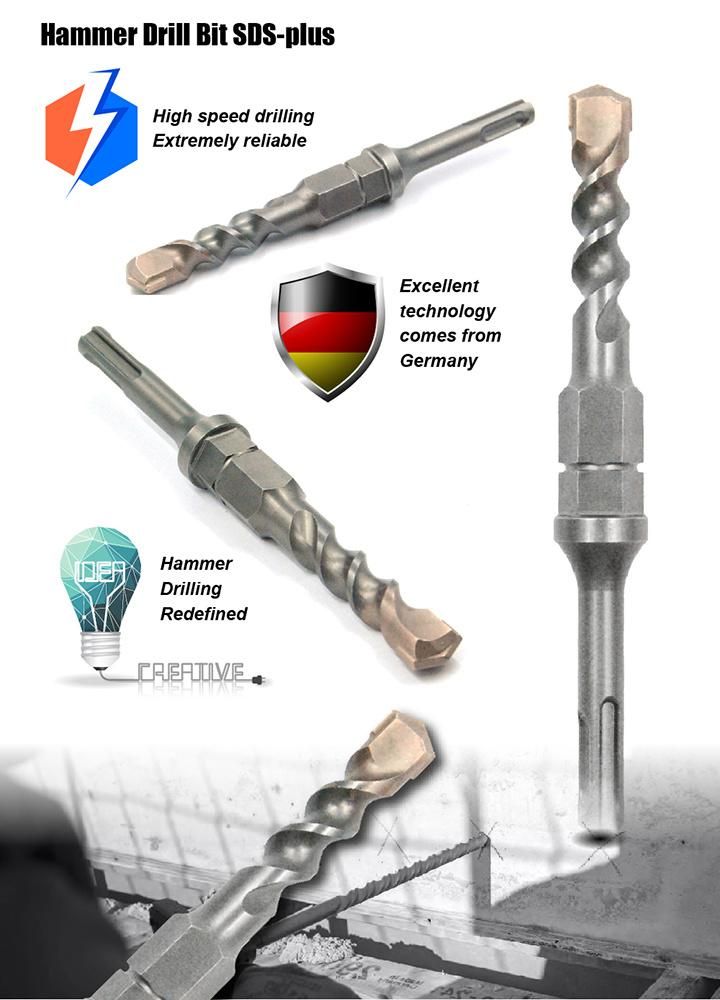

*Triangle Cutter Quick Stop Hammer Drill Bit SDS plus DIN standard with hex shoulder to drive anchor punching tube for depth-controlled drilling concrete brick stone cement etc and punch the bolt and anchor into the hole quickly.

*Premium quality carbide tips made on the formulation of virgin YG9 for longer life to do concrete stone brick drilling.

* U type of flute design by CNC processed maximizes drilling dust rejection rate without stuffed problem, to increase the drilling speed with more comfortable operation feelings.

*Lower vibration for an easy longer-time drilling job

*Specially designed hex with a groove to fit the impact punching hollow tube to do anchor hammering job easily and quickly.

*SDS-plus shank all 100% pass Bosch audited SDS-plus gouge inspection with the stamped logo for SDS-plus audited by Bosch.

*SGS-approved anti-rust oil treatment and color paints to protect the final users under the Reach standard.

Premium Quality 2cutter Quick Stop Hammer Drill SDS Plus Shank with Hex Shoulder for Bolt Anchor Punching Driving Tube for Concrete Brick Reinforcement DrillingPremium Quality 2cutter Quick Stop Hammer Drill SDS Plus Shank with Hex Shoulder for Bolt Anchor Punching Driving Tube for Concrete Brick Reinforcement Drilling
Premium Quality 2cutter Quick Stop Hammer Drill SDS Plus Shank with Hex Shoulder for Bolt Anchor Punching Driving Tube for Concrete Brick Reinforcement Drilling
Premium Quality 2cutter Quick Stop Hammer Drill SDS Plus Shank with Hex Shoulder for Bolt Anchor Punching Driving Tube for Concrete Brick Reinforcement DrillingPremium Quality 2cutter Quick Stop Hammer Drill SDS Plus Shank with Hex Shoulder for Bolt Anchor Punching Driving Tube for Concrete Brick Reinforcement Drilling
*Other special sizes are also available for the customers' special requests.
Item NumberDiameter(mm)Drill In-depth (for Anchor length) mmOverall Length(mm)
WJ722.0835125835125
WJ722.10451351045135
WJ722.12551451255145
WJ722.14651551465155
