• Model NO.：5022
• Carbide Type：Ceratizit CT-4 Bc20
• Steel Type：40cr
• Flute Type：H-Plus
• Cutting Head：Splus Cross 4cutter
• Marking：Stamped
• Surface Treatment：Shot-Peened
• Shank Type：SDS Max
• Welding Type：AVS. (Automatic Vacuum Soldering)
• Transport Package：Clip Hanger, Color Paper Hanger, Paper Box, Tubes
• Specification：10mm to 35mm diameter
• Trademark：OEM, HTT
• Origin：China
• HS Code：8207509000
• Production Capacity：2400000PCS,Year

Basic Info.

Model NO. 5022 Carbide Type Ceratizit CT-4 Bc20 Steel Type 40cr Flute Type H-Plus Cutting Head Splus Cross 4cutter Marking Stamped Surface Treatment Shot-Peened Shank Type SDS Max Welding Type AVS. (Automatic Vacuum Soldering) Transport Package Clip Hanger, Color Paper Hanger, Paper Box, Tubes Specification 10mm to 35mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 2400000PCS/Year

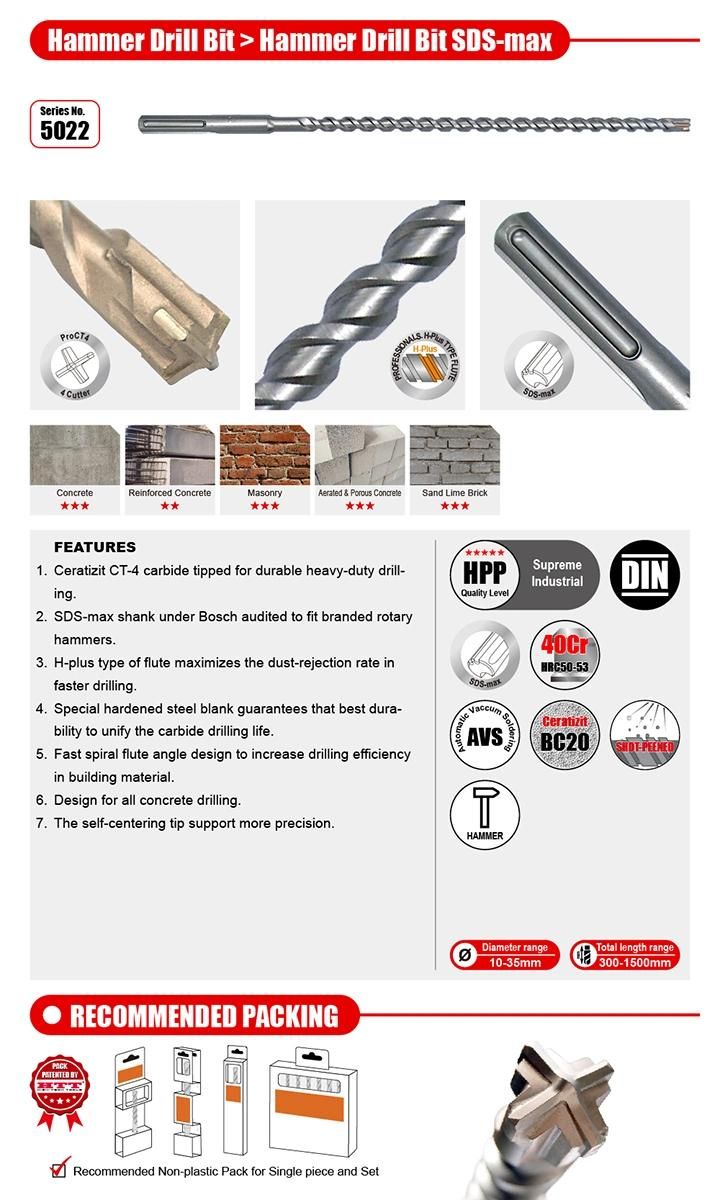

Product Description

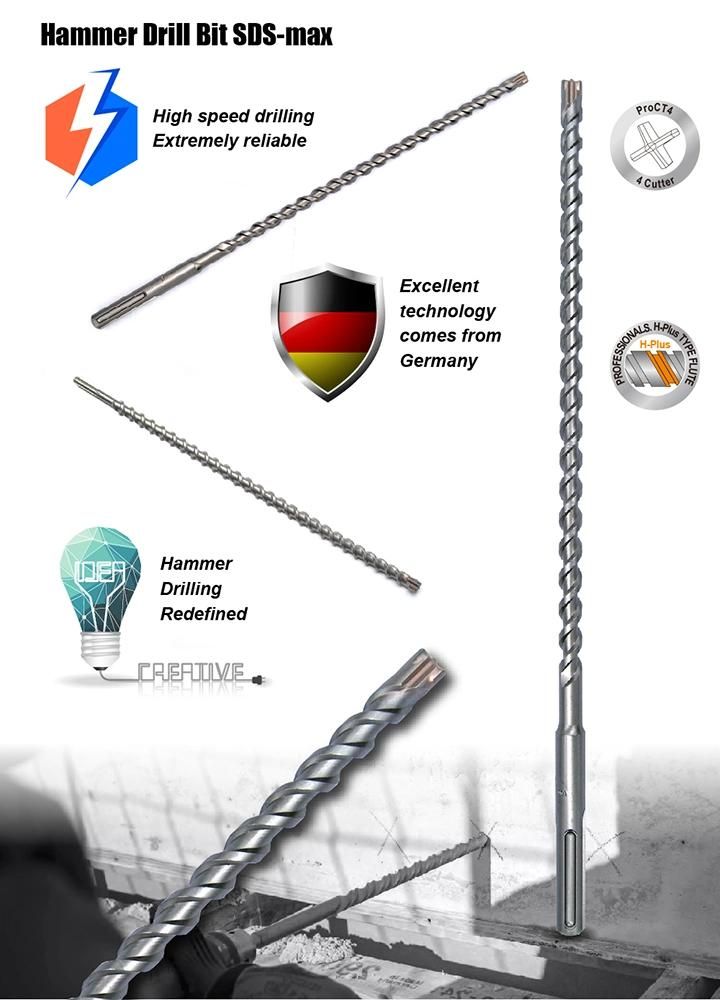

*Supreme Professional CT-4 Cross 4Cutter Hammer Drill Bit SDS max DIN standard for drilling concrete brick stone cement reinforcement etc.

*Extremely robust with long service lives thanks to the patented drill head tip with recessed carbide tip for extreme resilience in reinforcement steel and powerful drilling progress

*Extreme high quality and durable carbide BC20 formulation made by Ceratizit for concrete stone brick and reinforcement drilling.

*H-plus type of flute design maximizes drilling dust rejection rate without stuffed problem, to increase the drilling speed with more comfortable operation feelings. Edge helix for highly effective drilling dust transport and minimal dust explosion even in deep holes

*Lower vibration for an easy longer-time drilling job

*SDS-max shank all 100% pass Bosch audited SDS-max gouge inspection.

*SGS-approved anti-rust oil treatment and color paints to protect the final users under the Reach standard.




*Other special sizes are also available on the customers' special request.

Item Number	Diameter(mm)	Working Length(mm)	Overall Length(mm)
5022.100300	10	160	300
5022.100340	10	200	340
5022.100540	10	400	540
5022.100690	10	550	690
5022.100920	10	800	920
5022.120300	12	160	300
5022.120340	12	200	340
5022.120540	12	400	540
5022.120600	12	460	600
5022.120690	12	550	690
5022.120920	12	800	920
5022.140340	14	200	340
5022.140540	14	400	540
5022.140690	14	550	690
5022.140920	14	800	920
5022.141320	14	1200	1320
5022.160300	16	160	300
5022.160340	16	200	340
5022.160540	16	400	540
5022.160600	16	460	600
5022.160690	16	550	690
5022.160920	16	800	920
5022.161320	16	1200	1320
5022.180300	18	160	300
5022.180340	18	200	340
5022.180540	18	400	540
5022.180600	18	460	600
5022.180690	18	550	690
5022.180920	18	800	920
5022.181320	18	1200	1320
5022.200300	20	160	300
5022.200340	20	200	340
5022.200540	20	400	540
5022.200600	20	460	600
5022.200690	20	550	690
5022.200920	20	800	920
5022.201320	20	1200	1320
5022.220340	22	200	340
5022.220540	22	400	540
5022.220690	22	550	690
5022.220920	22	800	920
5022.221320	22	1200	1320
5022.240340	24	200	340
5022.240540	24	400	540
5022.240690	24	550	690
5022.240920	24	800	920
5022.241320	24	1200	1320
5022.250300	25	160	300
5022.250340	25	200	340
5022.250540	25	400	540
5022.250600	25	460	600
5022.250690	25	550	690
5022.250920	25	800	920
5022.251320	25	1200	1320
5022.260340	26	200	340
5022.260540	26	400	540
5022.260670	26	550	670
5022.260920	26	800	920
5022.261320	26	1200	1320
5022.280370	28	250	370
5022.280570	28	450	570
5022.280670	28	550	670
5022.280920	28	800	920
5022.281302	28	1200	1320
5022.300370	30	250	370
5022.300570	30	450	570
5022.300670	30	550	670
5022.300920	30	800	920
5022.301320	30	1200	1320
5022.320370	32	250	370
5022.320570	32	450	570
5022.320670	32	550	670
5022.320920	32	800	920
5022.321320	32	1200	1320
5022.321500	32	1380	1500
5022.350370	35	250	370
5022.350570	35	450	570
5022.350670	35	550	670
5022.350920	35	800	920
5022.351320	35	1200	1320
