• Model NO.：2013
• Carbide Type：Virgin Yg8c
• Steel Type：40cr
• Flute Type：L
• Cutting Head：W Type 2cutter
• Marking：Stamped
• Surface Treatment：Sandblasted
• Shank Type：SDS Plus
• Welding Type：Hfw. (High Frequency Welding)
• Certificated：Bosch Audited SDS-Plus Logo
• Transport Package：Clip Hanger, Color Paper Hanger, Paper Box, Tubes
• Specification：4mm to 32mm diameter
• Trademark：OEM, HTT
• Origin：China
• HS Code：8207509000
• Production Capacity：2400000,Year

Basic Info.

Model NO. 2013 Carbide Type Virgin Yg8c Steel Type 40cr Flute Type L Cutting Head W Type 2cutter Marking Stamped Surface Treatment Sandblasted Shank Type SDS Plus Welding Type Hfw. (High Frequency Welding) Certificated Bosch Audited SDS-Plus Logo Transport Package Clip Hanger, Color Paper Hanger, Paper Box, Tubes Specification 4mm to 32mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 2400000/Year

Product Description

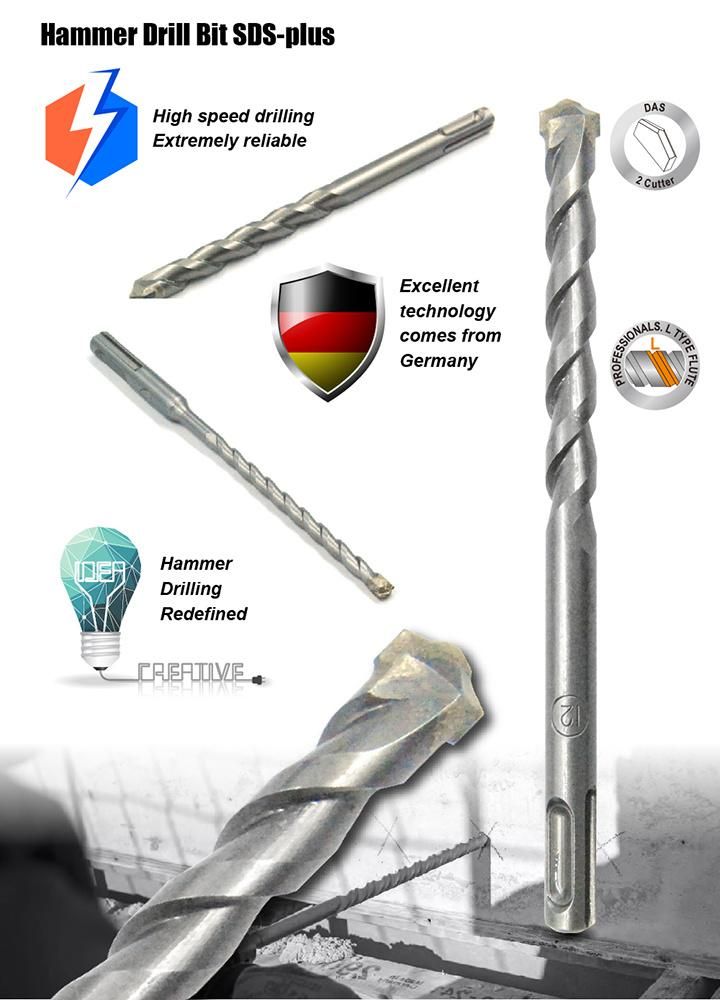

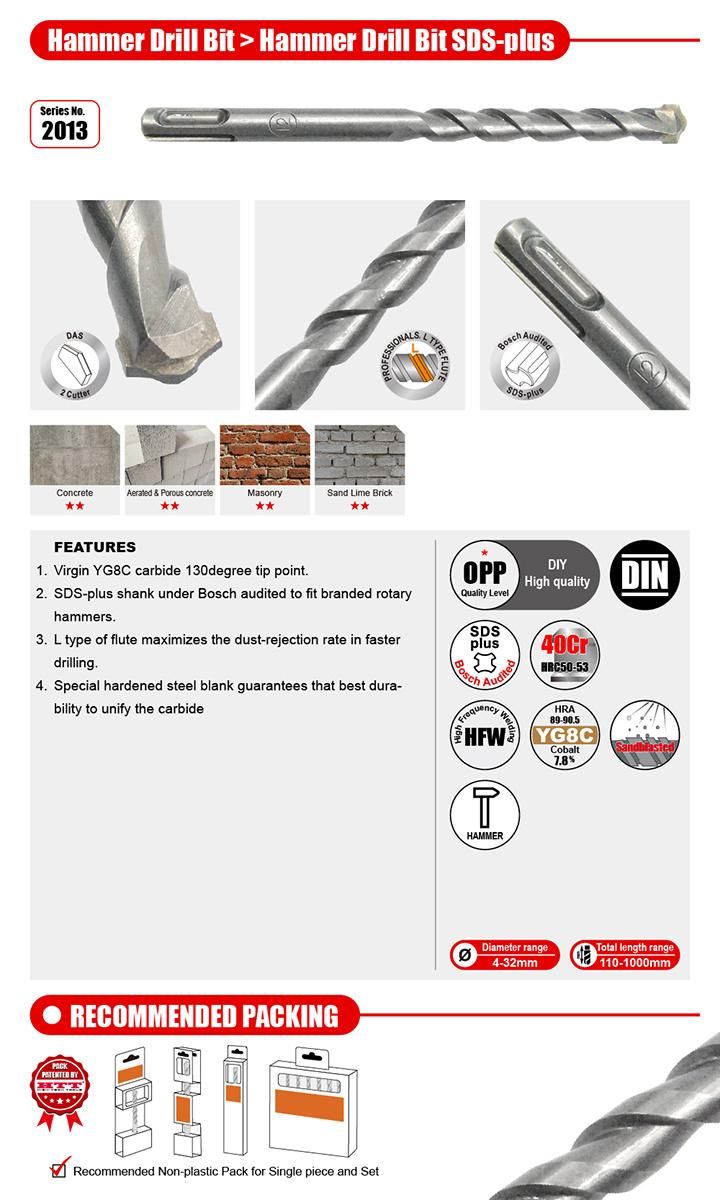

*W 2Cutter Hammer Drill Bit SDS plus DIN standard for drilling concrete brick stone cement etc.

*Virgin high quality carbide tips on YG8C formulation for concrete stone brick drilling.

*L type of flute design maximizes drilling dust rejection rate without stuffed problem, to increase the drilling speed with more comfortable operation feelings.

*Lower vibration for an easy longer-time drilling job

*SDS-plus shank all 100% pass Bosch audited SDS-plus gouge inspection with the stamped logo fo SDS-plus audited by Bosch.

*SGS-approved anti-rust oil treatment and color paints to protect the final users under Reach standard.





*Other special sizes are also available on the customers' special request.

Item Number	Diameter(mm)	Working Length(mm)	Overall Length(mm)
2013.040110	4	60	110
2013.050110	5	60	110
2013.055110	5.5	60	110
2013.060110	6	60	110
2013.065110	6.5	60	110
2013.070110	7	60	110
2013.080110	8	60	110
2013.090110	9	60	110
2013.100110	10	60	110
2013.110110	11	60	110
2013.040160	4	110	160
2013.050160	5	110	160
2013.055160	5.5	110	160
2013.060160	6	110	160
2013.065160	6.5	110	160
2013.070160	7	110	160
2013.080160	8	110	160
2013.090160	9	110	160
2013.100160	10	110	160
2013.110160	11	110	160
2013.120160	12	110	160
2013.130160	13	110	160
2013.140160	14	110	160
2013.150160	15	110	160
2013.160160	16	110	160
2013.180160	18	110	160
2013.190160	19	110	160
2013.200160	20	110	160
2013.220160	22	110	160
2013.240160	24	110	160
2013.250160	25	110	160
2013.260160	26	110	160
2013.280160	28	110	160
2013.300160	30	110	160
2013.320160	32	110	160
2013.040180	4	130	180
2013.050180	5	130	180
2013.055180	5.5	130	180
2013.060180	6	130	180
2013.065180	6.5	130	180
2013.080180	8	130	180
2013.100180	10	130	180
2013.050210	5	160	210
2013.055210	5.5	160	210
2013.060210	6	160	210
2013.065210	6.5	160	210
2013.070210	7	160	210
2013.080210	8	160	210
2013.090210	9	160	210
2013.100210	10	160	210
2013.110210	11	160	210
2013.120210	12	160	210
2013.130210	13	160	210
2013.140210	14	160	210
2013.150210	15	160	210
2013.160210	16	160	210
2013.180210	18	160	210
2013.190210	19	160	210
2013.200210	20	160	210
2013.220210	22	160	210
2013.240210	24	160	210
2013.250210	25	160	210
2013.260210	26	160	210
2013.280210	28	160	210
2013.300210	30	160	210
2013.320210	32	160	210
2013.050260	5	210	260
2013.055260	5.5	210	260
2013.060260	6	210	260
2013.065260	6.5	210	260
2013.070260	7	210	260
2013.080260	8	210	260
2013.090260	9	210	260
2013.100260	10	210	260
2013.110260	11	210	260
2013.120260	12	210	260
2013.130260	13	210	260
2013.140260	14	210	260
2013.150260	15	210	260
2013.160260	16	210	260
2013.180260	18	210	260
2013.190260	19	210	260
2013.200260	20	210	260
2013.220260	22	210	260
2013.240260	24	210	260
2013.250260	25	210	260
2013.260260	26	210	260
2013.280260	28	210	260
2013.300260	30	210	260
2013.320260	32	210	260
2013.050310	5	260	310
2013.055310	5.5	260	310
2013.060310	6	260	310
2013.065310	6.5	260	310
2013.070310	7	260	310
2013.080310	8	260	310
2013.090310	9	260	310
2013.100310	10	260	310
2013.110310	11	260	310
2013.120310	12	260	310
2013.130310	13	260	310
2013.140310	14	260	310
2013.150310	15	260	310
2013.160310	16	260	310
2013.180310	18	260	310
2013.190310	19	260	310
2013.200310	20	260	310
2013.220310	22	260	310
2013.240310	24	260	310
2013.250310	25	260	310
2013.260310	26	260	310
2013.280310	28	260	310
2013.300310	30	260	310
2013.320310	32	260	310
2013.050350	5	300	350
2013.055350	5.5	300	350
2013.060350	6	300	350
2013.065350	6.5	300	350
2013.070350	7	300	350
2013.080350	8	300	350
2013.090350	9	300	350
2013.100350	10	300	350
2013.110350	11	300	350
2013.120350	12	300	350
2013.130350	13	300	350
2013.140350	14	300	350
2013.150350	15	300	350
2013.160350	16	300	350
2013.180350	18	300	350
2013.190350	19	300	350
2013.200350	20	300	350
2013.220350	22	300	350
2013.240350	24	300	350
2013.250350	25	300	350
2013.260350	26	300	350
2013.280350	28	300	350
2013.300350	30	300	350
2013.320350	32	300	350
2013.050410	5	360	410
2013.055410	5.5	360	410
2013.060410	6	360	410
2013.065410	6.5	360	410
2013.070410	7	360	410
2013.080410	8	360	410
2013.090410	9	360	410
2013.100410	10	360	410
2013.110410	11	360	410
2013.120410	12	360	410
2013.130410	13	360	410
2013.140410	14	360	410
2013.150410	15	360	410
2013.160410	16	360	410
2013.180410	18	360	410
2013.190410	19	360	410
2013.200410	20	360	410
2013.220410	22	360	410
2013.240410	24	360	410
2013.250410	25	360	410
2013.260410	26	360	410
2013.280410	28	360	410
2013.300410	30	360	410
2013.320410	32	360	410
2013.050460	5	410	460
2013.055460	5.5	410	460
2013.060460	6	410	460
2013.065460	6.5	410	460
2013.070460	7	410	460
2013.080460	8	410	460
2013.090460	9	410	460
2013.100460	10	410	460
2013.110460	11	410	460
2013.120460	12	400	460
2013.130460	13	400	460
2013.140460	14	400	460
2013.150460	15	400	460
2013.160460	16	400	460
2013.180460	18	400	460
2013.190460	19	400	460
2013.200460	20	400	460
2013.220460	22	400	460
2013.240460	24	400	460
2013.250460	25	400	460
2013.260460	26	400	460
2013.280460	28	400	460
2013.300460	30	400	460
2013.320460	32	400	460
2013.060550	6	500	550
2013.065550	6.5	500	550
2013.070550	7	500	550
2013.080550	8	500	550
2013.090550	9	500	550
2013.100550	10	500	550
2013.110550	11	500	550
2013.120550	12	500	550
2013.130550	13	500	550
2013.140550	14	500	550
2013.150550	15	500	550
2013.160550	16	500	550
2013.180550	18	500	550
2013.190550	19	500	550
2013.200550	20	500	550
2013.220550	22	500	550
2013.240550	24	500	550
2013.250550	25	500	550
2013.260550	26	500	550
2013.280550	28	500	550
2013.300550	30	500	550
2013.320550	32	500	550
2013.060600	6	550	600
2013.065600	6.5	550	600
2013.070600	7	550	600
2013.080600	8	550	600
2013.090600	9	550	600
2013.100600	10	550	600
2013.110600	11	550	600
2013.120600	12	550	600
2013.130600	13	550	600
2013.140600	14	550	600
2013.150600	15	550	600
2013.160600	16	550	600
2013.180600	18	550	600
2013.190600	19	550	600
2013.200600	20	550	600
2013.220600	22	550	600
2013.240600	24	550	600
2013.250600	25	550	600
2013.260600	26	550	600
2013.280600	28	550	600
2013.300600	30	550	600
2013.320600	32	550	600
2013.080800	8	750	800
2013.090800	9	750	800
2013.100800	10	750	800
2013.110800	11	750	800
2013.120800	12	750	800
2013.130800	13	750	800
2013.140800	14	750	800
2013.150800	15	750	800
2013.160800	16	750	800
2013.180800	18	750	800
2013.190800	19	750	800
2013.200800	20	750	800
2013.220800	22	750	800
2013.240800	24	750	800
2013.250800	25	750	800
2013.260800	26	750	800
2013.280800	28	750	800
2013.300800	30	750	800
2013.320800	32	750	800
2013.101000	10	950	1000
2013.111000	11	950	1000
2013.121000	12	950	1000
2013.131000	13	950	1000
2013.141000	14	950	1000
2013.151000	15	950	1000
2013.161000	16	950	1000
2013.181000	18	950	1000
2013.191000	19	950	1000
2013.201000	20	950	1000
2013.221000	22	950	1000
2013.241000	24	950	1000
2013.251000	25	950	1000
2013.261000	26	950	1000
2013.281000	28	950	1000
2013.301000	30	950	1000
2013.321000	32	950	1000
