Eco Cost Triangle 2Cutter Hammer Drill SDS Max for Concrete Brick Stone Cement Drilling
ZHENJIANG HTT TOOL CO., LTD.- Customized:Customized
- Standard:DIN
- Length:300mm to 1500mm
- Type:Twist Drill Bit
- Material:Tungsten Carbide
- Usage:Masonry Drilling
Base Info
- Model NO.:5012
- Carbide Type:Virgin Yg8c
- Steel Type:40cr
- Flute Type:H-Plus
- Cutting Head:130degrees Triangle
- Marking:Stamped
- Surface Treatment:Sandblasted
- Shank Type:SDS Max
- Welding Type:Hfw. (High Frequency Welding)
- Transport Package:Clip Hanger, Color Paper Hanger, Paper Box, Tubes
- Specification:10mm to 40mm diameter
- Trademark:OEM, HTT
- Origin:China
- HS Code:8207509000
- Production Capacity:4800000PCS,Year
Description
Basic Info.
Model NO. 5012 Carbide Type Virgin Yg8c Steel Type 40cr Flute Type H-Plus Cutting Head 130degrees Triangle Marking Stamped Surface Treatment Sandblasted Shank Type SDS Max Welding Type Hfw. (High Frequency Welding) Transport Package Clip Hanger, Color Paper Hanger, Paper Box, Tubes Specification 10mm to 40mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 4800000PCS/YearProduct Description

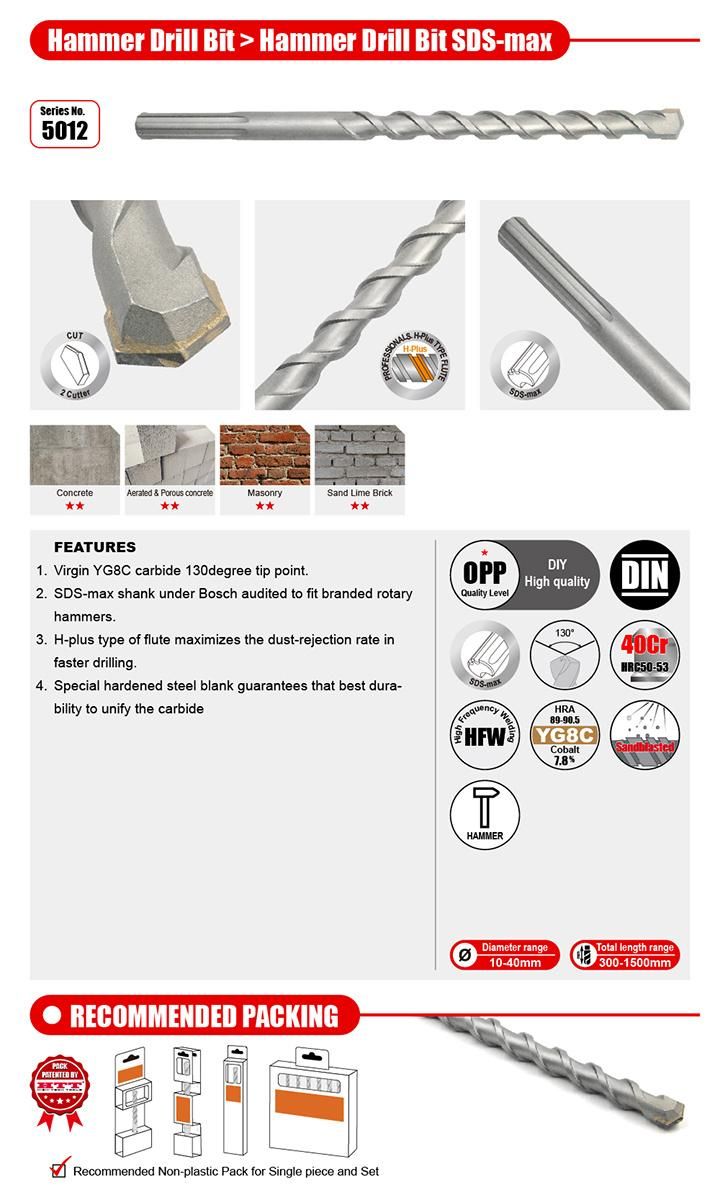

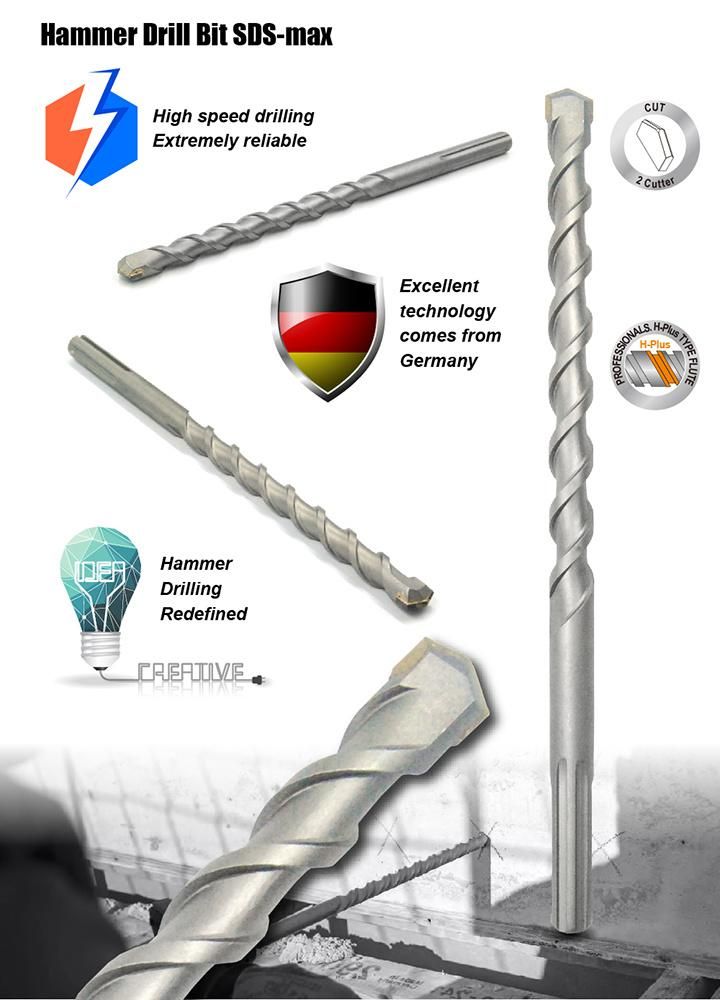

*Triangle 2Cutter Hammer Drill Bit SDS max DIN standard for drilling concrete brick stone cement etc.*Virgin high quality carbide tips on YG8C formulation for concrete stone brick drilling.
*H-plus type of flute design maximizes drilling dust rejection rate without stuffed problem, to increase the drilling speed with more comfortable operation feelings.
*Lower vibration for an easy longer-time drilling job
*SDS-max shank all 100% pass Bosch audited SDS-max gouge inspection.
*SGS-approved anti-rust oil treatment and color paints to protect the final users under Reach standard.
*Other special sizes are also available on the customers' special request.
Item Number | Diameter(mm) | Working Length(mm) | Overall Length(mm) |
5012.100300 | 10 | 160 | 300 |
5012.100340 | 10 | 200 | 340 |
5012.100540 | 10 | 400 | 540 |
5012.100690 | 10 | 550 | 690 |
5012.100920 | 10 | 800 | 920 |
5012.120300 | 12 | 160 | 300 |
5012.120340 | 12 | 200 | 340 |
5012.120540 | 12 | 400 | 540 |
5012.120690 | 12 | 550 | 690 |
5012.120920 | 12 | 800 | 920 |
5012.130340 | 13 | 200 | 340 |
5012.130540 | 13 | 400 | 540 |
5012.130690 | 13 | 550 | 690 |
5012.130920 | 13 | 800 | 920 |
5012.140340 | 14 | 200 | 340 |
5012.140540 | 14 | 400 | 540 |
5012.140690 | 14 | 550 | 690 |
5012.140920 | 14 | 800 | 920 |
5012.141320 | 14 | 1200 | 1320 |
5012.150340 | 15 | 200 | 340 |
5012.150540 | 15 | 400 | 540 |
5012.150690 | 15 | 550 | 690 |
5012.150920 | 15 | 800 | 920 |
5012.151320 | 15 | 1200 | 1320 |
5012.160340 | 16 | 200 | 340 |
5012.160540 | 16 | 400 | 540 |
5012.160690 | 16 | 550 | 690 |
5012.160920 | 16 | 800 | 920 |
5012.161320 | 16 | 1200 | 1320 |
5012.180340 | 18 | 200 | 340 |
5012.180540 | 18 | 400 | 540 |
5012.180690 | 18 | 550 | 690 |
5012.180920 | 18 | 800 | 920 |
5012.181320 | 18 | 1200 | 1320 |
5012.190340 | 19 | 200 | 340 |
5012.190540 | 19 | 400 | 540 |
5012.190690 | 19 | 550 | 690 |
5012.190920 | 19 | 800 | 920 |
5012.200340 | 20 | 200 | 340 |
5012.200540 | 20 | 400 | 540 |
5012.200690 | 20 | 550 | 690 |
5012.200920 | 20 | 800 | 920 |
5012.201320 | 20 | 1200 | 1320 |
5012.220340 | 22 | 200 | 340 |
5012.220540 | 22 | 400 | 540 |
5012.220690 | 22 | 550 | 690 |
5012.220920 | 22 | 800 | 920 |
5012.221320 | 22 | 1200 | 1320 |
5012.240340 | 24 | 200 | 340 |
5012.240540 | 24 | 400 | 540 |
5012.240690 | 24 | 550 | 690 |
5012.240920 | 24 | 800 | 920 |
5012.241320 | 24 | 1200 | 1320 |
5012.250340 | 25 | 200 | 340 |
5012.250540 | 25 | 400 | 540 |
5012.250690 | 25 | 550 | 690 |
5012.250920 | 25 | 800 | 920 |
5012.251320 | 25 | 1200 | 1320 |
5012.260340 | 26 | 200 | 340 |
5012.260540 | 26 | 400 | 540 |
5012.260670 | 26 | 550 | 670 |
5012.260920 | 26 | 800 | 920 |
5012.261320 | 26 | 1200 | 1320 |
5012.280370 | 28 | 250 | 370 |
5012.280570 | 28 | 450 | 570 |
5012.280670 | 28 | 550 | 670 |
5012.280920 | 28 | 800 | 920 |
5012.281302 | 28 | 1200 | 1320 |
5012.300370 | 30 | 250 | 370 |
5012.300570 | 30 | 450 | 570 |
5012.300670 | 30 | 550 | 670 |
5012.300920 | 30 | 800 | 920 |
5012.301320 | 30 | 1200 | 1320 |
5012.320370 | 32 | 250 | 370 |
5012.320570 | 32 | 450 | 570 |
5012.320670 | 32 | 550 | 670 |
5012.320920 | 32 | 800 | 920 |
5012.321320 | 32 | 1200 | 1320 |
5012.350370 | 35 | 250 | 370 |
5012.350570 | 35 | 450 | 570 |
5012.350670 | 35 | 550 | 670 |
5012.350920 | 35 | 800 | 920 |
5012.351320 | 35 | 1200 | 1320 |
5012.360370 | 36 | 250 | 370 |
5012.360570 | 36 | 450 | 570 |
5012.360670 | 36 | 550 | 670 |
5012.360920 | 36 | 800 | 920 |
5012.361320 | 36 | 1200 | 1320 |
5012.380370 | 38 | 250 | 370 |
5012.380570 | 38 | 450 | 570 |
5012.380670 | 38 | 550 | 670 |
5012.380920 | 38 | 800 | 920 |
5012.381320 | 38 | 1200 | 1320 |
5012.400370 | 40 | 250 | 370 |
5012.400570 | 40 | 450 | 570 |
5012.400670 | 40 | 550 | 670 |
5012.400920 | 40 | 800 | 920 |
5012.401320 | 40 | 1200 | 1320 |
5012.121500 | 12 | 1450 | 1500 |
5012.131500 | 13 | 1450 | 1500 |
5012.141500 | 14 | 1450 | 1500 |
5012.151500 | 15 | 1450 | 1500 |
5012.161500 | 16 | 1450 | 1500 |
5012.181500 | 18 | 1450 | 1500 |
5012.191500 | 19 | 1450 | 1500 |
5012.201500 | 20 | 1450 | 1500 |
5012.221500 | 22 | 1450 | 1500 |
5012.241500 | 24 | 1450 | 1500 |
5012.251500 | 25 | 1450 | 1500 |
5012.261500 | 26 | 1450 | 1500 |
5012.281500 | 28 | 1450 | 1500 |
5012.301500 | 30 | 1450 | 1500 |
5012.351500 | 35 | 1450 | 1500 |
