German Quality 3 Blade Multi Cutter Hammer Drill SDS Plus for Concrete Brick Stone Cement Drilling

ZHENJIANG HTT TOOL CO., LTD.
  • Customized：Customized
  • Standard：DIN
  • Length：160mm to 1000mm
  • Type：Twist Drill Bit
  • Material：Tungsten Carbide
  • Usage：Masonry Drilling

Base Info

  • Model NO.：2133
  • Carbide Type：Ceratizit Bc20
  • Steel Type：40cr
  • Flute Type：H-Plus
  • Cutting Head：3 Blade Cutters
  • Marking：Stamped
  • Surface Treatment：Shot-Peened
  • Shank Type：SDS Plus
  • Welding Type：AVS. (Automatic Vacuum Soldering)
  • Certificated：Bosch Audited SDS-Plus Logo
  • Transport Package：Clip Hanger, Color Paper Hanger, Paper Box, Tubes
  • Specification：18mm to 32mm diameter
  • Trademark：OEM, HTT
  • Origin：China
  • HS Code：8207509000
  • Production Capacity：1600000,Year

Description

Basic Info.

Model NO. 2133 Carbide Type Ceratizit Bc20 Steel Type 40cr Flute Type H-Plus Cutting Head 3 Blade Cutters Marking Stamped Surface Treatment Shot-Peened Shank Type SDS Plus Welding Type AVS. (Automatic Vacuum Soldering) Certificated Bosch Audited SDS-Plus Logo Transport Package Clip Hanger, Color Paper Hanger, Paper Box, Tubes Specification 18mm to 32mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 1600000/Year

Product Description

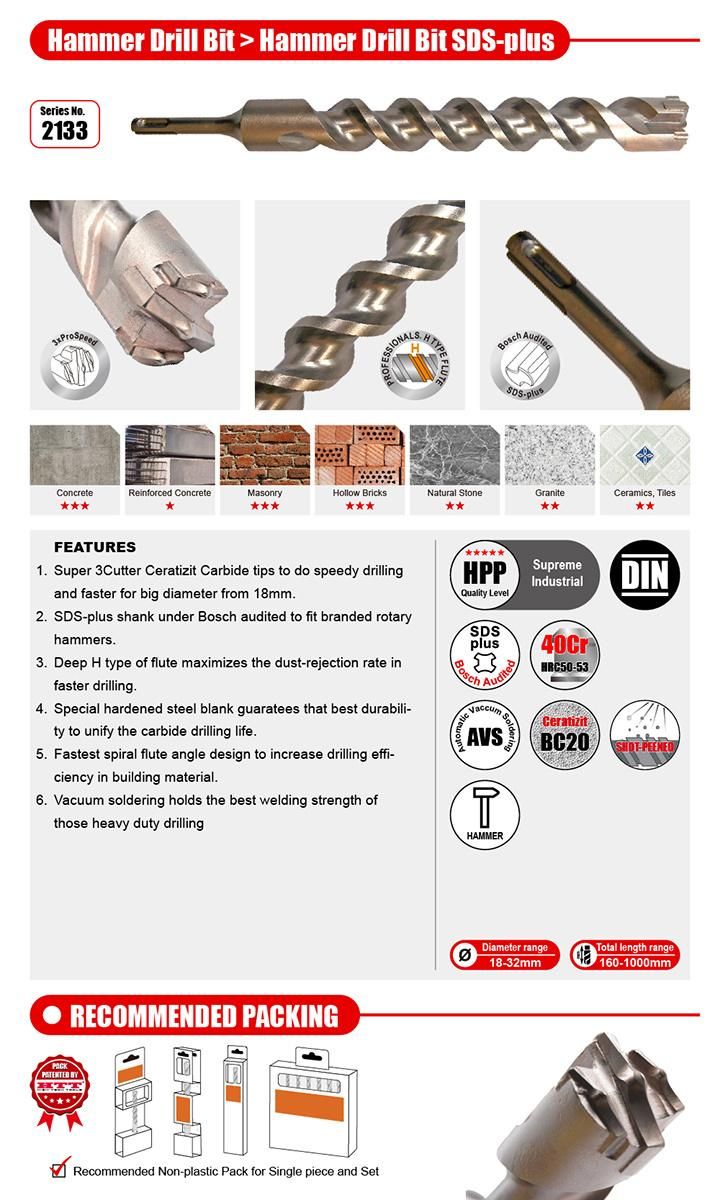

*3Blade Combination Multi Cutter Hammer Drill Bit SDS plus DIN standard for drilling concrete brick stone cement reinforcement etc.

*Ceratizit BC20 formulation x 3blades for concrete stone brick reinforcement drilling.

*H-plus type of flute design maximizes drilling dust rejection rate without stuffed problem, to increase the drilling speed with more comfortable operation feelings.

*Lower vibration for an easy longer-time drilling job

*SDS-plus shank all 100% pass Bosch audited SDS-plus gouge inspection with the stamped logo fo SDS-plus audited by Bosch.

*SGS-approved anti-rust oil treatment and color paints to protect the final users under Reach standard.


German Quality 3 Blade Multi Cutter Hammer Drill SDS Plus for Concrete Brick Stone Cement DrillingGerman Quality 3 Blade Multi Cutter Hammer Drill SDS Plus for Concrete Brick Stone Cement Drilling
German Quality 3 Blade Multi Cutter Hammer Drill SDS Plus for Concrete Brick Stone Cement Drilling
German Quality 3 Blade Multi Cutter Hammer Drill SDS Plus for Concrete Brick Stone Cement DrillingGerman Quality 3 Blade Multi Cutter Hammer Drill SDS Plus for Concrete Brick Stone Cement Drilling
*Other special sizes are also available on the customers' special request.
Item No.Diameter(mm)Working  Length(mm)Overall Length(mm)
2133.180160 18110160
2133.190160 19110160
2133.200160 20110160
2133.220160 22110160
2133.240160 24110160
2133.250160 25110160
2133.260160 26110160
2133.280160 28110160
2133.300160 30110160
2133.320160 32110160
2133.180210 18160210
2133.190210 19160210
2133.200210 20160210
2133.220210 22160210
2133.240210 24160210
2133.250210 25160210
2133.260210 26160210
2133.280210 28160210
2133.300210 30160210
2133.320210 32160210
2133.180260 18210260
2133.190260 19210260
2133.200260 20210260
2133.220260 22210260
2133.240260 24210260
2133.250260 25210260
2133.260260 26210260
2133.280260 28210260
2133.300260 30210260
2133.320260 32210260
2133180310 18260310
2133.190310 19260310
2133.200310 20260310
2133.220310 22260310
2133.240310 24260310
2133.250310 25260310
2133.260310 26260310
2133.280310 28260310
2133.300310 30260310
2133.320310 32260310
2133.180350 18300350
2133.190350 19300350
2133.200350 20300350
2133.220350 22300350
2133.240350 24300350
2133.250350 25300350
2133.260350 26300350
2133.280350 28300350
2133.300350 30300350
2133.320350 32300350
2133.180410 18360410
2133.190410 19360410
2133.200410 20360410
2133.220410 22360410
2133.240410 24360410
2133.250410 25360410
2133.260410 26360410
2133.280410 28360410
2133.300410 30360410
2133.320410 32360410
2133.180460 18410460
2133.190460 19410460
2133.200460 20410460
2133.220460 22410460
2133.240460 24410460
2133.250460 25410460
2133.260460 26410460
2133.280460 28410460
2133.300460 30410460
2133.060550 32410460
2133.180550 18500550
2133.190550 19500550
2133.200550 20500550
2133.220550 22500550
2133.240550 24500550
2133.250550 25500550
2133.260550 26500550
2133.280550 28500550
2133.300550 30500550
2133.060600 32500550
2133.180600 18550600
2133.190600 19550600
2133.200600 20550600
2133.220600 22550600
2133.240600 24550600
2133.250600 25550600
2133.260600 26550600
2133.280600 28550600
2133.300600 30550600
2133.320600 32550600
2133.180800 18750800
2133.190800 19750800
2133.200800 20750800
2133.220800 22750800
2133.240800 24750800
2133.250800 25750800
2133.260800 26750800
2133.280800 28750800
2133.300800 30750800
2133.320800 32750800
2133.181000 189501000
2133.191000 199501000
2133.201000 209501000
2133.221000 229501000
2133.241000 249501000
2133.251000 259501000
2133.261000 269501000
2133.281000 289501000
2133.301000 309501000
