Eco Cost Cross Triangle 2cutter Hammer Drill SDS Plus for Concrete Brick Stone Cement Drilling
ZHENJIANG HTT TOOL CO., LTD.- Customized：Customized
- Standard：DIN
- Length：110mm to 1000mm
- Type：Twist Drill Bit
- Material：Tungsten Carbide
- Usage：Masonry Drilling
Base Info
- Model NO.：2012
- Carbide Type：Virgin Yg8c
- Steel Type：40cr
- Flute Type：H
- Cutting Head：130degrees Triangle
- Marking：Stamped
- Surface Treatment：Sandblasted
- Shank Type：SDS Plus
- Welding Type：Hfw. (High Frequency Welding)
- Certificated：Bosch Audited SDS-Plus Logo
- Transport Package：Clip Hanger, Color Paper Hanger, Paper Box, Tubes
- Specification：4mm to 32mm diameter
- Trademark：OEM, HTT
- Origin：China
- HS Code：8207509000
- Production Capacity：2400000,Year
Description
Basic Info.
Model NO. 2012 Carbide Type Virgin Yg8c Steel Type 40cr Flute Type H Cutting Head 130degrees Triangle Marking Stamped Surface Treatment Sandblasted Shank Type SDS Plus Welding Type Hfw. (High Frequency Welding) Certificated Bosch Audited SDS-Plus Logo Transport Package Clip Hanger, Color Paper Hanger, Paper Box, Tubes Specification 4mm to 32mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 2400000/YearProduct Description

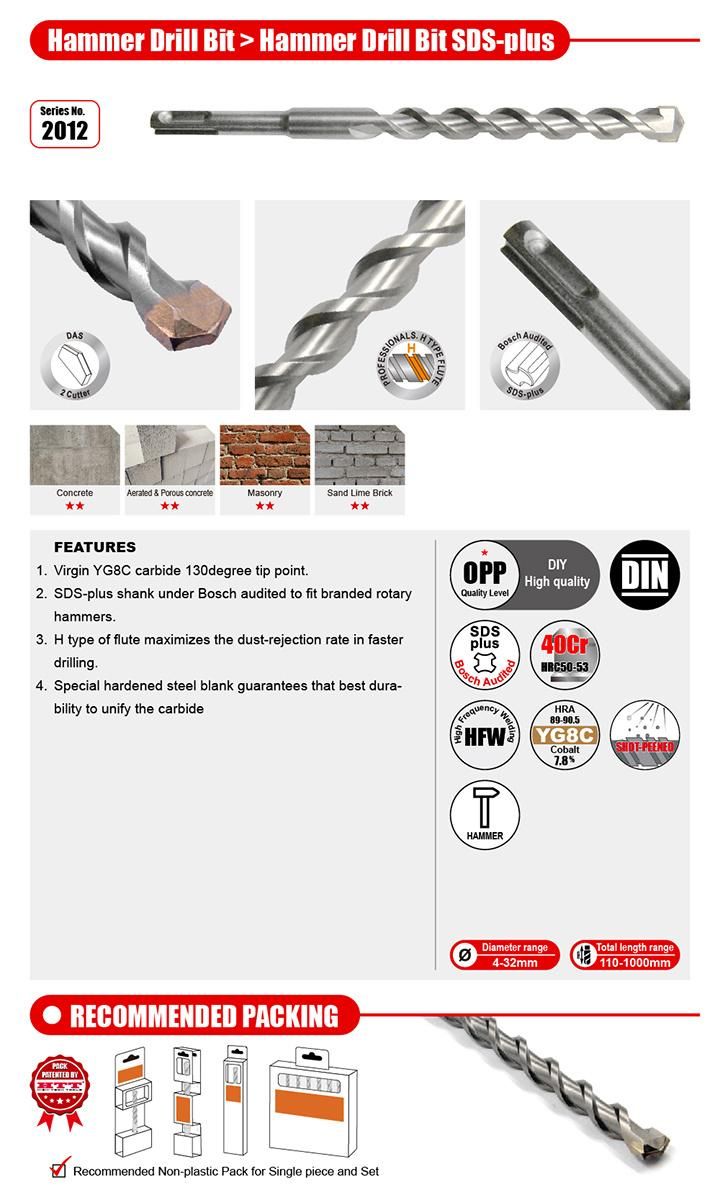

*Triangle 2Cutter Hammer Drill Bit SDS plus DIN standard for drilling concrete brick stone cement etc.*Virgin high quality carbide tips on YG8C formulation for concrete stone brick drilling.
*H type of flute design maximizes drilling dust rejection rate without stuffed problem, to increase the drilling speed with more comfortable operation feelings.
*Lower vibration for an easy longer-time drilling job
*SDS-plus shank all 100% pass Bosch audited SDS-plus gouge inspection with the stamped logo fo SDS-plus audited by Bosch.
*SGS-approved anti-rust oil treatment and color paints to protect the final users under Reach standard.
*Other special sizes are also available on the customers' special request.
| Item Number | Diameter(mm) | Working Length(mm) | Overall Length(mm) |
| 2012.040110 | 4 | 60 | 110 |
| 2012.050110 | 5 | 60 | 110 |
| 2012.055110 | 5.5 | 60 | 110 |
| 2012.060110 | 6 | 60 | 110 |
| 2012.065110 | 6.5 | 60 | 110 |
| 2012.070110 | 7 | 60 | 110 |
| 2012.080110 | 8 | 60 | 110 |
| 2012.090110 | 9 | 60 | 110 |
| 2012.100110 | 10 | 60 | 110 |
| 2012.110110 | 11 | 60 | 110 |
| 2012.040160 | 4 | 110 | 160 |
| 2012.050160 | 5 | 110 | 160 |
| 2012.055160 | 5.5 | 110 | 160 |
| 2012.060160 | 6 | 110 | 160 |
| 2012.065160 | 6.5 | 110 | 160 |
| 2012.070160 | 7 | 110 | 160 |
| 2012.080160 | 8 | 110 | 160 |
| 2012.090160 | 9 | 110 | 160 |
| 2012.100160 | 10 | 110 | 160 |
| 2012.110160 | 11 | 110 | 160 |
| 2012.120160 | 12 | 110 | 160 |
| 2012.130160 | 13 | 110 | 160 |
| 2012.140160 | 14 | 110 | 160 |
| 2012.150160 | 15 | 110 | 125 |
| 2012.160160 | 16 | 110 | 102 |
| 2012.180160 | 18 | 110 | 160 |
| 2012.190160 | 19 | 110 | 160 |
| 2012.200160 | 20 | 110 | 160 |
| 2012.220160 | 22 | 110 | 160 |
| 2012.240160 | 24 | 110 | 160 |
| 2012.250160 | 25 | 110 | 160 |
| 2012.260160 | 26 | 110 | 160 |
| 2012.280160 | 28 | 110 | 160 |
| 2012.300160 | 30 | 110 | 160 |
| 2012.320160 | 32 | 110 | 160 |
| 2012.040180 | 4 | 130 | 180 |
| 2012.050180 | 5 | 130 | 180 |
| 2012.055180 | 5.5 | 130 | 180 |
| 2012.060180 | 6 | 130 | 180 |
| 2012.065180 | 6.5 | 130 | 180 |
| 2012.080180 | 8 | 130 | 180 |
| 2012.100180 | 10 | 130 | 180 |
| 2012.050210 | 5 | 160 | 210 |
| 2012.055210 | 5.5 | 160 | 210 |
| 2012.060210 | 6 | 160 | 210 |
| 2012.065210 | 6.5 | 160 | 210 |
| 2012.070210 | 7 | 160 | 210 |
| 2012.080210 | 8 | 160 | 210 |
| 2012.090210 | 9 | 160 | 210 |
| 2012.100210 | 10 | 160 | 210 |
| 2012.110210 | 11 | 160 | 210 |
| 2012.120210 | 12 | 160 | 210 |
| 2012.130210 | 13 | 160 | 210 |
| 2012.140210 | 14 | 160 | 210 |
| 2012.150210 | 15 | 160 | 210 |
| 2012.160210 | 16 | 160 | 210 |
| 2012.180210 | 18 | 160 | 210 |
| 2012.190210 | 19 | 160 | 210 |
| 2012.200210 | 20 | 160 | 210 |
| 2012.220210 | 22 | 160 | 210 |
| 2012.240210 | 24 | 160 | 210 |
| 2012.250210 | 25 | 160 | 210 |
| 2012.260210 | 26 | 160 | 210 |
| 2012.280210 | 28 | 160 | 210 |
| 2012.300210 | 30 | 160 | 210 |
| 2012.320210 | 32 | 160 | 210 |
| 2012.050260 | 5 | 210 | 260 |
| 2012.055260 | 5.5 | 210 | 260 |
| 2012.060260 | 6 | 210 | 260 |
| 2012.065260 | 6.5 | 210 | 260 |
| 2012.070260 | 7 | 210 | 260 |
| 2012.080260 | 8 | 210 | 260 |
| 2012.090260 | 9 | 210 | 260 |
| 2012.100260 | 10 | 210 | 260 |
| 2012.110260 | 11 | 210 | 260 |
| 2012.120260 | 12 | 210 | 260 |
| 2012.130260 | 13 | 210 | 260 |
| 2012.140260 | 14 | 210 | 260 |
| 2012.150260 | 15 | 210 | 260 |
| 2012.160260 | 16 | 210 | 260 |
| 2012.180260 | 18 | 210 | 260 |
| 2012.190260 | 19 | 210 | 260 |
| 2012.200260 | 20 | 210 | 260 |
| 2012.220260 | 22 | 210 | 260 |
| 2012.240260 | 24 | 210 | 260 |
| 2012.250260 | 25 | 210 | 260 |
| 2012.260260 | 26 | 210 | 260 |
| 2012.280260 | 28 | 210 | 260 |
| 2012.300260 | 30 | 210 | 260 |
| 2012.320260 | 32 | 210 | 260 |
| 2012.050310 | 5 | 260 | 310 |
| 2012.055310 | 5.5 | 260 | 310 |
| 2012.060310 | 6 | 260 | 310 |
| 2012.065310 | 6.5 | 260 | 310 |
| 2012.070310 | 7 | 260 | 310 |
| 2012.080310 | 8 | 260 | 310 |
| 2012.090310 | 9 | 260 | 310 |
| 2012.100310 | 10 | 260 | 310 |
| 2012.110310 | 11 | 260 | 310 |
| 2012.120310 | 12 | 260 | 310 |
| 2012.130310 | 13 | 260 | 310 |
| 2012.140310 | 14 | 260 | 310 |
| 2012.150310 | 15 | 260 | 310 |
| 2012.160310 | 16 | 260 | 310 |
| 2012.180310 | 18 | 260 | 310 |
| 2012.190310 | 19 | 260 | 310 |
| 2012.200310 | 20 | 260 | 310 |
| 2012.220310 | 22 | 260 | 310 |
| 2012.240310 | 24 | 260 | 310 |
| 2012.250310 | 25 | 260 | 310 |
| 2012.260310 | 26 | 260 | 310 |
| 2012.280310 | 28 | 260 | 310 |
| 2012.300310 | 30 | 260 | 310 |
| 2012.320310 | 32 | 260 | 310 |
| 2012.050350 | 5 | 300 | 350 |
| 2012.055350 | 5.5 | 300 | 350 |
| 2012.060350 | 6 | 300 | 350 |
| 2012.065350 | 6.5 | 300 | 350 |
| 2012.070350 | 7 | 300 | 350 |
| 2012.080350 | 8 | 300 | 350 |
| 2012.090350 | 9 | 300 | 350 |
| 2012.100350 | 10 | 300 | 350 |
| 2012.110350 | 11 | 300 | 350 |
| 2012.120350 | 12 | 300 | 350 |
| 2012.130350 | 13 | 300 | 350 |
| 2012.140350 | 14 | 300 | 350 |
| 2012.150350 | 15 | 300 | 350 |
| 2012.160350 | 16 | 300 | 350 |
| 2012.180350 | 18 | 300 | 350 |
| 2012.190350 | 19 | 300 | 350 |
| 2012.200350 | 20 | 300 | 350 |
| 2012.220350 | 22 | 300 | 350 |
| 2012.240350 | 24 | 300 | 350 |
| 2012.250350 | 25 | 300 | 350 |
| 2012.260350 | 26 | 300 | 350 |
| 2012.280350 | 28 | 300 | 350 |
| 2012.300350 | 30 | 300 | 350 |
| 2012.320350 | 32 | 300 | 350 |
| 2012.050410 | 5 | 360 | 410 |
| 2012.055410 | 5.5 | 360 | 410 |
| 2012.060410 | 6 | 360 | 410 |
| 2012.065410 | 6.5 | 360 | 410 |
| 2012.070410 | 7 | 360 | 410 |
| 2012.080410 | 8 | 360 | 410 |
| 2012.090410 | 9 | 360 | 410 |
| 2012.100410 | 10 | 360 | 410 |
| 2012.110410 | 11 | 360 | 410 |
| 2012.120410 | 12 | 360 | 410 |
| 2012.130410 | 13 | 360 | 410 |
| 2012.140410 | 14 | 360 | 410 |
| 2012.150410 | 15 | 360 | 410 |
| 2012.160410 | 16 | 360 | 410 |
| 2012.180410 | 18 | 360 | 410 |
| 2012.190410 | 19 | 360 | 410 |
| 2012.200410 | 20 | 360 | 410 |
| 2012.220410 | 22 | 360 | 410 |
| 2012.240410 | 24 | 360 | 410 |
| 2012.250410 | 25 | 360 | 410 |
| 2012.260410 | 26 | 360 | 410 |
| 2012.280410 | 28 | 360 | 410 |
| 2012.300410 | 30 | 360 | 410 |
| 2012.320410 | 32 | 360 | 410 |
| 2012.050460 | 5 | 410 | 460 |
| 2012.055460 | 5.5 | 410 | 460 |
| 2012.060460 | 6 | 410 | 460 |
| 2012.065460 | 6.5 | 410 | 460 |
| 2012.070460 | 7 | 410 | 460 |
| 2012.080460 | 8 | 410 | 460 |
| 2012.090460 | 9 | 410 | 460 |
| 2012.100460 | 10 | 410 | 460 |
| 2012.110460 | 11 | 410 | 460 |
| 2012.120460 | 12 | 400 | 460 |
| 2012.130460 | 13 | 400 | 460 |
| 2012.140460 | 14 | 400 | 460 |
| 2012.150460 | 15 | 400 | 460 |
| 2012.160460 | 16 | 400 | 460 |
| 2012.180460 | 18 | 400 | 460 |
| 2012.190460 | 19 | 400 | 460 |
| 2012.200460 | 20 | 400 | 460 |
| 2012.220460 | 22 | 400 | 460 |
| 2012.240460 | 24 | 400 | 460 |
| 2012.250460 | 25 | 400 | 460 |
| 2012.260460 | 26 | 400 | 460 |
| 2012.280460 | 28 | 400 | 460 |
| 2012.300460 | 30 | 400 | 460 |
| 2012.320460 | 32 | 400 | 460 |
| 2012.060550 | 6 | 500 | 550 |
| 2012.065550 | 6.5 | 500 | 550 |
| 2012.070550 | 7 | 500 | 550 |
| 2012.080550 | 8 | 500 | 550 |
| 2012.090550 | 9 | 500 | 550 |
| 2012.100550 | 10 | 500 | 550 |
| 2012.110550 | 11 | 500 | 550 |
| 2012.120550 | 12 | 500 | 550 |
| 2012.130550 | 13 | 500 | 550 |
| 2012.140550 | 14 | 500 | 550 |
| 2012.150550 | 15 | 500 | 550 |
| 2012.160550 | 16 | 500 | 550 |
| 2012.180550 | 18 | 500 | 550 |
| 2012.190550 | 19 | 500 | 550 |
| 2012.200550 | 20 | 500 | 550 |
| 2012.220550 | 22 | 500 | 550 |
| 2012.240550 | 24 | 500 | 550 |
| 2012.250550 | 25 | 500 | 550 |
| 2012.260550 | 26 | 500 | 550 |
| 2012.280550 | 28 | 500 | 550 |
| 2012.300550 | 30 | 500 | 550 |
| 2012.320550 | 32 | 500 | 550 |
| 2012.060600 | 6 | 550 | 600 |
| 2012.065600 | 6.5 | 550 | 600 |
| 2012.070600 | 7 | 550 | 600 |
| 2012.080600 | 8 | 550 | 600 |
| 2012.090600 | 9 | 550 | 600 |
| 2012.100600 | 10 | 550 | 600 |
| 2012.110600 | 11 | 550 | 600 |
| 2012.120600 | 12 | 550 | 600 |
| 2012.130600 | 13 | 550 | 600 |
| 2012.140600 | 14 | 550 | 600 |
| 2012.150600 | 15 | 550 | 600 |
| 2012.160600 | 16 | 550 | 600 |
| 2012.180600 | 18 | 550 | 600 |
| 2012.190600 | 19 | 550 | 600 |
| 2012.200600 | 20 | 550 | 600 |
| 2012.220600 | 22 | 550 | 600 |
| 2012.240600 | 24 | 550 | 600 |
| 2012.250600 | 25 | 550 | 600 |
| 2012.260600 | 26 | 550 | 600 |
| 2012.280600 | 28 | 550 | 600 |
| 2012.300600 | 30 | 550 | 600 |
| 2012.320600 | 32 | 550 | 600 |
| 2012.080800 | 8 | 750 | 800 |
| 2012.090800 | 9 | 750 | 800 |
| 2012.100800 | 10 | 750 | 800 |
| 2012.110800 | 11 | 750 | 800 |
| 2012.120800 | 12 | 750 | 800 |
| 2012.130800 | 13 | 750 | 800 |
| 2012.140800 | 14 | 750 | 800 |
| 2012.150800 | 15 | 750 | 800 |
| 2012.160800 | 16 | 750 | 800 |
| 2012.180800 | 18 | 750 | 800 |
| 2012.190800 | 19 | 750 | 800 |
| 2012.200800 | 20 | 750 | 800 |
| 2012.220800 | 22 | 750 | 800 |
| 2012.240800 | 24 | 750 | 800 |
| 2012.250800 | 25 | 750 | 800 |
| 2012.260800 | 26 | 750 | 800 |
| 2012.280800 | 28 | 750 | 800 |
| 2012.300800 | 30 | 750 | 800 |
| 2012.320800 | 32 | 750 | 800 |
| 2012.101000 | 10 | 950 | 1000 |
| 2012.111000 | 11 | 950 | 1000 |
| 2012.121000 | 12 | 950 | 1000 |
| 2012.131000 | 13 | 950 | 1000 |
| 2012.141000 | 14 | 950 | 1000 |
| 2012.151000 | 15 | 950 | 1000 |
| 2012.161000 | 16 | 950 | 1000 |
| 2012.181000 | 18 | 950 | 1000 |
| 2012.191000 | 19 | 950 | 1000 |
| 2012.201000 | 20 | 950 | 1000 |
| 2012.221000 | 22 | 950 | 1000 |
| 2012.241000 | 24 | 950 | 1000 |
| 2012.251000 | 25 | 950 | 1000 |
| 2012.261000 | 26 | 950 | 1000 |
| 2012.281000 | 28 | 950 | 1000 |
| 2012.301000 | 30 | 950 | 1000 |
| 2012.321000 | 32 | 950 | 1000 |
