Eco Cost 2cutter Hammer Drill SDS Plus for Concrete Brick Stone Cement Drilling

ZHENJIANG HTT TOOL CO., LTD.
  • Customized：Customized
  • Standard：DIN
  • Length：110mm to 1000mm
  • Type：Twist Drill Bit
  • Material：Tungsten Carbide
  • Usage：Masonry Drilling

Base Info

  • Model NO.：2023
  • Carbide Type：Virgin Yg8c
  • Steel Type：40cr
  • Flute Type：Z-1
  • Cutting Head：W Type
  • Marking：Stamped
  • Surface Treatment：Sandblasted
  • Shank Type：SDS Plus
  • Welding Type：Hfw. (High Frequency Welding)
  • Certificated：Bosch Audited SDS-Plus Logo
  • Transport Package：Clip Hanger, Color Paper Hanger, Paper Box, Tubes
  • Specification：4mm to 32mm diameter
  • Trademark：OEM, HTT
  • Origin：China
  • HS Code：8207509000
  • Production Capacity：2400000,Year

Description

Basic Info.

Model NO. 2023 Carbide Type Virgin Yg8c Steel Type 40cr Flute Type Z-1 Cutting Head W Type Marking Stamped Surface Treatment Sandblasted Shank Type SDS Plus Welding Type Hfw. (High Frequency Welding) Certificated Bosch Audited SDS-Plus Logo Transport Package Clip Hanger, Color Paper Hanger, Paper Box, Tubes Specification 4mm to 32mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 2400000/Year

Product Description

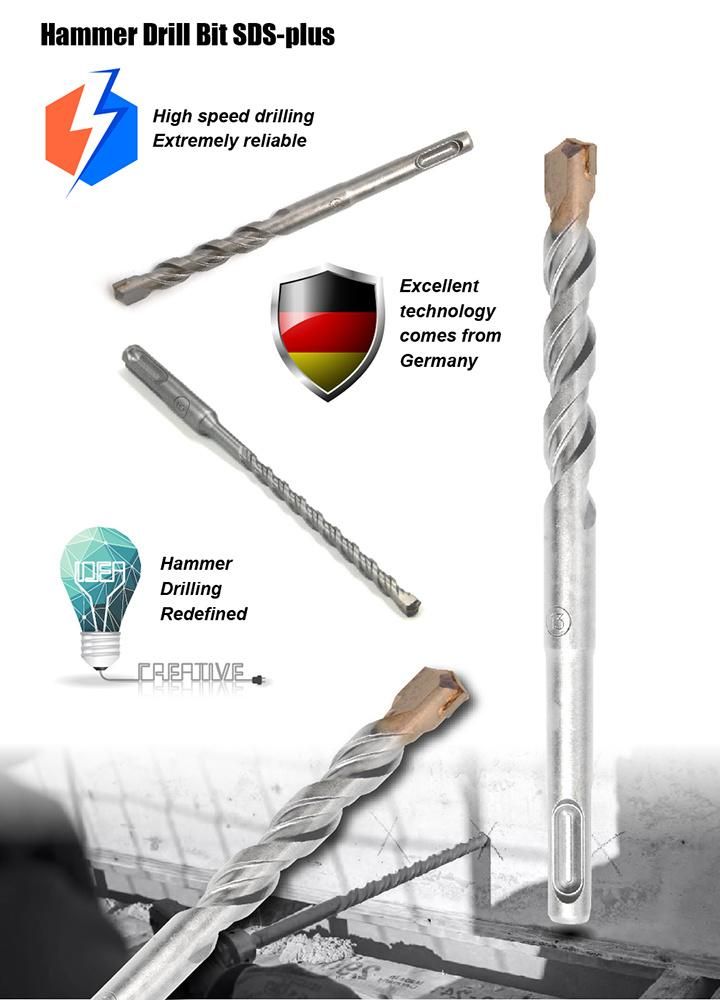

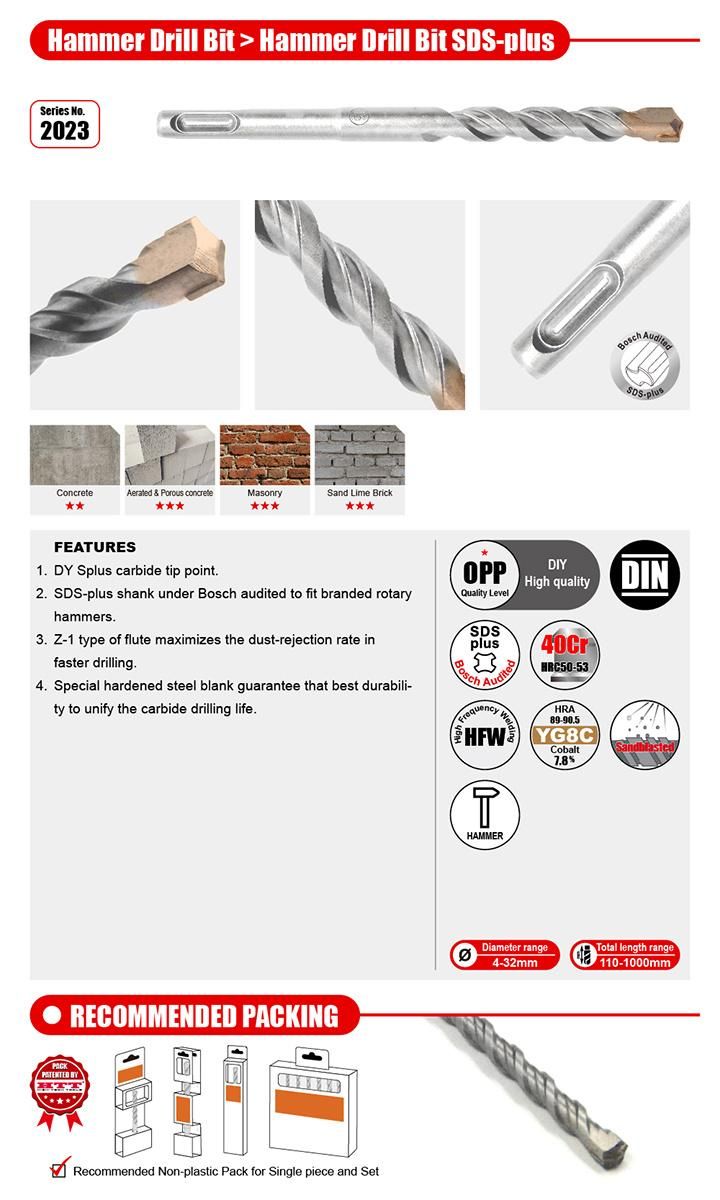

*2Cutter Hammer Drill Bit SDS plus DIN standard for drilling concrete brick stone cement etc.

*Virgin YG8C formulation Triangle tip for concrete stone brick drilling.

*Z-1 type of flute 3DMAX design maximizes drilling dust rejection rate without stuffed problem, to increase the drilling speed with more comfortable operation feelings.

*Lower vibration for an easy longer-time drilling job

*SDS-plus shank all 100% pass Bosch audited SDS-plus gouge inspection with the stamped logo fo SDS-plus audited by Bosch.

*SGS-approved anti-rust oil treatment and color paints to protect the final users under Reach standard.

Eco Cost 2cutter Hammer Drill SDS Plus for Concrete Brick Stone Cement DrillingEco Cost 2cutter Hammer Drill SDS Plus for Concrete Brick Stone Cement Drilling
Eco Cost 2cutter Hammer Drill SDS Plus for Concrete Brick Stone Cement Drilling
Eco Cost 2cutter Hammer Drill SDS Plus for Concrete Brick Stone Cement DrillingEco Cost 2cutter Hammer Drill SDS Plus for Concrete Brick Stone Cement Drilling
*Other special sizes are also available on the customers' special request.
Item No.Diameter(mm)Working Length(mm)Overall Length(mm)
2023.040110 460110
2023.050110 560110
2023.055110 5.560110
2023.060110 660110
2023.065110 6.560110
2023.070110 760110
2023.080110 860110
2023.090110 960110
2023.100110 1060110
2023.110110 1160110
2023.040160 4110160
2023.050160 5110160
2023.055160 5.5110160
2023.060160 6110160
2023.065160 6.5110160
2023.070160 7110160
2023.080160 8110160
2023.090160 9110160
2023.100160 10110160
2023.110160 11110160
2023.120160 12110160
2023.130160 13110160
2023.140160 14110160
2023.150160 15110160
2023.160160 16110160
2023.180160 18110160
2023.190160 19110160
2023.200160 20110160
2023.220160 22110160
2023.240160 24110160
2023.250160 25110160
2023.260160 26110160
2023.280160 28110160
2023.300160 30110160
2023.040180 4130180
2023.050180 5130180
2023.055180 5.5130180
2023.060180 6130180
2023.065180 6.5130180
2023.080180 8130180
2023.100180 10130180
2023.050210 5160210
2023.055210 5.5160210
2023.060210 6160210
2023.065210 6.5160210
2023.070210 7160210
2023.080210 8160210
2023.090210 9160210
2023.100210 10160210
2023.110210 11160210
2023.120210 12160210
2023.130210 13160210
2023.140210 14160210
2023.150210 15160210
2023.160210 16160210
2023.180210 18160210
2023.190210 19160210
2023.200210 20160210
2023.220210 22160210
2023.240210 24160210
2023.250210 25160210
2023.260210 26160210
2023.280210 28160210
2023.300210 30160210
2023.050260 5210260
2023.055260 5.5210260
2023.060260 6210260
2023.065260 6.5210260
2023.070260 7210260
2023.080260 8210260
2023.090260 9210260
2023.100260 10210260
2023.110260 11210260
2023.120260 12210260
2023.130260 13210260
2023.140260 14210260
2023.150260 15210260
2023.160260 16210260
2023.180260 18210260
2023.190260 19210260
2023.200260 20210260
2023.220260 22210260
2023.240260 24210260
2023.250260 25210260
2023.260260 26210260
2023.280260 28210260
2023.300260 30210260
2023.050310 5260310
2023.055310 5.5260310
2023.060310 6260310
2023.065310 6.5260310
2023.070310 7260310
2023.080310 8260310
2023.090310 9260310
2023.100310 10260310
2023.110310 11260310
2023.120310 12260310
2023.130310 13260310
2023.140310 14260310
2023.150310 15260310
2023.160310 16260310
2023.180310 18260310
2023.190310 19260310
2023.200310 20260310
2023.220310 22260310
2023.240310 24260310
2023.250310 25260310
2023.260310 26260310
2023.280310 28260310
2023.300310 30260310
2023.050350 5300350
2023.055350 5.5300350
2023.060350 6300350
2023.065350 6.5300350
2023.070350 7300350
2023.080350 8300350
2023.090350 9300350
2023.100350 10300350
2023.110350 11300350
2023.120350 12300350
2023.130350 13300350
2023.140350 14300350
2023.150350 15300350
2023.160350 16300350
2023.180350 18300350
2023.190350 19300350
2023.200350 20300350
2023.220350 22300350
2023.240350 24300350
2023.250350 25300350
2023.260350 26300350
2023.280350 28300350
2023.300350 30300350
2023.050410 5360410
2023.055410 5.5360410
2023.060410 6360410
2023.065410 6.5360410
2023.070410 7360410
2023.080410 8360410
2023.090410 9360410
2023.100410 10360410
2023.110410 11360410
2023.120410 12360410
2023.130410 13360410
2023.140410 14360410
2023.150410 15360410
2023.160410 16360410
2023.180410 18360410
2023.190410 19360410
2023.200410 20360410
2023.220410 22360410
2023.240410 24360410
2023.250410 25360410
2023.260410 26360410
2023.280410 28360410
2023.300410 30360410
2023.050450 5400450
2023.055450 5.5400450
2023.060450 6400450
2023.065450 6.5400450
2023.070450 7400450
2023.080450 8400450
2023.090450 9400450
2023.100450 10400450
2023.110450 11400450
2023.120450 12400450
2023.130450 13400450
2023.140450 14400450
2023.150450 15400450
2023.160450 16400450
2023.180450 18400450
2023.190450 19400450
2023.200450 20400450
2023.220450 22400450
2023.240450 24400450
2023.250450 25400450
2023.260450 26400450
2023.280450 28400450
2023.300450 30400450
2023.060550 6500550
2023.065550 6.5500550
2023.070550 7500550
2023.080550 8500550
2023.090550 9500550
2023.100550 10500550
2023.110550 11500550
2023.120550 12500550
2023.130550 13500550
2023.140550 14500550
2023.150550 15500550
2023.160550 16500550
2023.180550 18500550
2023.190550 19500550
2023.200550 20500550
2023.220550 22500550
2023.240550 24500550
2023.250550 25500550
2023.260550 26500550
2023.280550 28500550
2023.300550 30500550
2023.060600 6550600
2023.065600 6.5550600
2023.070600 7550600
2023.080600 8550600
2023.090600 9550600
2023.100600 10550600
2023.110600 11550600
2023.120600 12550600
2023.130600 13550600
2023.140600 14550600
2023.150600 15550600
2023.160600 16550600
2023.180600 18550600
2023.190600 19550600
2023.200600 20550600
2023.220600 22550600
2023.240600 24550600
2023.250600 25550600
2023.260600 26550600
2023.280600 28550600
2023.300600 30550600
2023.080800 8750800
2023.090800 9750800
2023.100800 10750800
2023.110800 11750800
2023.120800 12750800
2023.130800 13750800
2023.140800 14750800
2023.150800 15750800
2023.160800 16750800
2023.180800 18750800
2023.190800 19750800
2023.200800 20750800
2023.220800 22750800
2023.240800 24750800
2023.250800 25750800
2023.260800 26750800
2023.280800 28750800
2023.300800 30750800
2023.101000 109501000
2023.111000 119501000
2023.121000 129501000
2023.131000 139501000
2023.141000 149501000
2023.151000 159501000
2023.161000 169501000
2023.181000 189501000
2023.191000 199501000
2023.201000 209501000
2023.221000 229501000
2023.241000 249501000
2023.251000 259501000
2023.261000 269501000
2023.281000 289501000
2023.301000 309501000
