• Model NO.：SED-HTSF
• Shank：Taper Shank
• Manufacturing Art：Roll Forged
• Surface Finish：Black Oxide
• Angle：135 or 118
• Min Qty：100PCS Each
• Transport Package：Oil Paper, Paper Box, Plastic Tube, Set Cases
• Specification：SGS
• Trademark：EASYDRILL
• Origin：China
• HS Code：820750900
• Production Capacity：20, 000PCS,Month

Basic Info.

Model NO. SED-HTSF Shank Taper Shank Manufacturing Art Roll Forged Surface Finish Black Oxide Angle 135 or 118 Min Qty 100PCS Each Transport Package Oil Paper, Paper Box, Plastic Tube, Set Cases Specification SGS Trademark EASYDRILL Origin China HS Code 820750900 Production Capacity 20, 000PCS/Month

Product Description

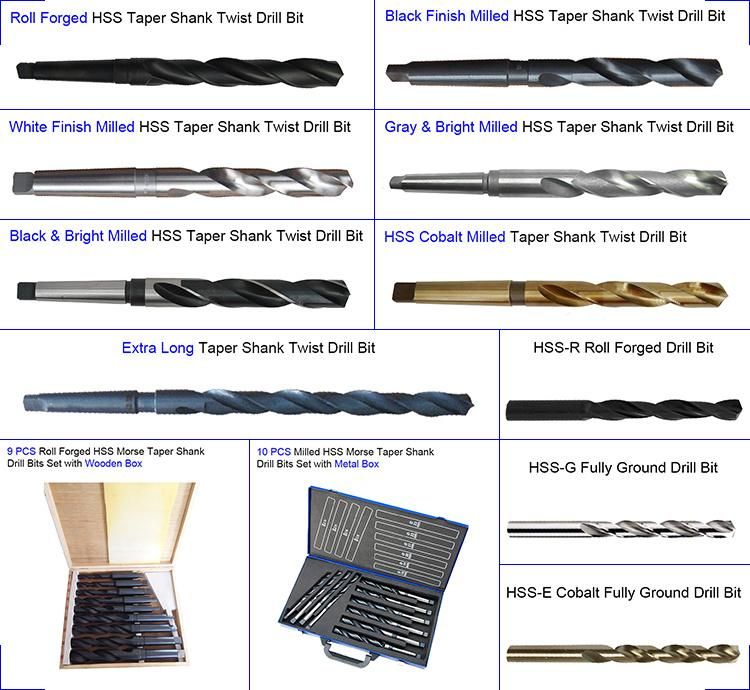

Rolled Forged HSS Taper Shank Twist Drill Bit for Metal Drilling
Material: HSS 4241, 4341, 9341, M2, M35
Size: 6.0-100.0mm
Process: Rolled
Surface: White, Black, White Edge, Tin-Coated
Standard:DIN345 and ANSI
MT No: No.1 to 6
usage:Metal,Wood, Plastic Drilling.

Material	HSS 4241 4341 6542-M2 (Cobalt 5% M35 is Available)
Process	Roll Forged  (Milled is Available)
Standard	DIN345  (ANSI,DIN341, DIN1870 are Also Available)
MT No.	No.1 to No.6

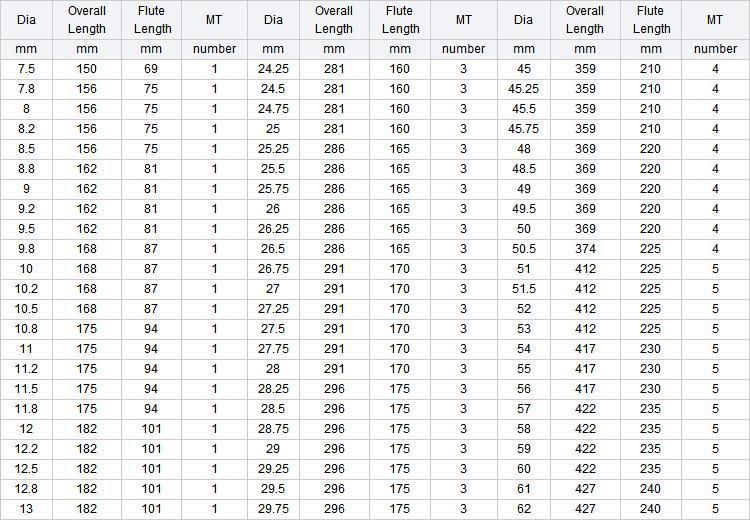

Size	7.5mm-100mm and 3/8" to 4"
Point Angle	118 Degree  (135 Degree Split Point, Thinning Point are Available)
Flute Type	Type N, Right Hand Cutting
Surface Finish	Black Oxide (Black & White, Gray & Bright, Bright, Amber Color, Titanium Coating are Also available)
Package	One Piece in Paper Box,Plastic Box,Wood Box.
Features	1,Precise dimension,long life and high efficiency. 2,High-speed steel (HSS) provides hardness for wear resistance 3,Black oxide finish reduces wear while promoting chip and coolant flow on ferrous materials 4,Self-centering 118-degree notched point penetrates material without a pilot hole more easily than a conventional point, and maintains a sharp cutting edge 5,Morse taper shank allows the tool to be inserted directly into the machine's spindle to facilitate high-torque applications such as large cut diameters 6,When run in a counterclockwise direction (right-hand cut) spiral fluted tools evacuate chips up and out of the cut to reduce clogging 7,Designed to perform in a broad range of materials in the iron and steel families 8,Spiral flutes are constructed with a higher flute angle to remove chips more easily.

Details:
1. Process: 6.0-33.0mm Roll Forged, 31.0-100.0mm Milled
2. Standard: Strictly as per DIN345 specification requested.
Point Angle:118 angle and 135angle
3. Application: Drilling deep hole on Non-Alloy Steel, Alloy Steel, Grey Cast Iron, Malleable Cast Iron, special aluminum or magnesium alloy.
4.118degree or 135 degree
5. Package: One PC into a Paper Tube or Plastic Tube, also Set Cases are available.
