Eco Cost Cross 4cutter Hammer Drill SDS Plus for Concrete Brick Stone Cement Drilling

ZHENJIANG HTT TOOL CO., LTD.
  • Customized：Customized
  • Standard：DIN
  • Length：110mm to 1000mm
  • Type：Twist Drill Bit
  • Material：Tungsten Carbide
  • Usage：Masonry Drilling

Base Info

  • Model NO.：2014
  • Carbide Type：Virgin Yg8c
  • Steel Type：40cr
  • Flute Type：H
  • Cutting Head：Cross 4cutter
  • Marking：Stamped
  • Surface Treatment：Sandblasted
  • Shank Type：SDS Plus
  • Welding Type：Hfw. (High Frequency Welding)
  • Certificated：Bosch Audited SDS-Plus Logo
  • Transport Package：Clip Hanger, Color Paper Hanger, Paper Box, Tubes
  • Specification：5mm to 32mm diameter
  • Trademark：OEM, HTT
  • Origin：China
  • HS Code：8207509000
  • Production Capacity：2400000,Year

Description

Basic Info.

Model NO. 2014 Carbide Type Virgin Yg8c Steel Type 40cr Flute Type H Cutting Head Cross 4cutter Marking Stamped Surface Treatment Sandblasted Shank Type SDS Plus Welding Type Hfw. (High Frequency Welding) Certificated Bosch Audited SDS-Plus Logo Transport Package Clip Hanger, Color Paper Hanger, Paper Box, Tubes Specification 5mm to 32mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 2400000/Year

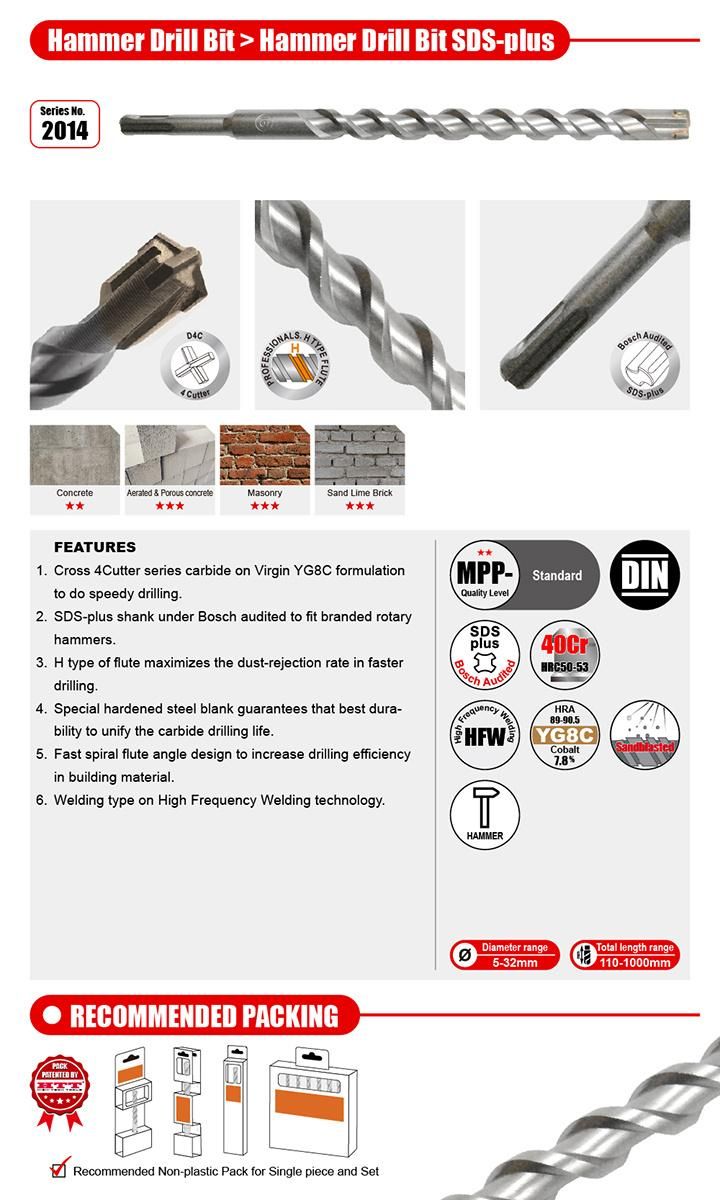

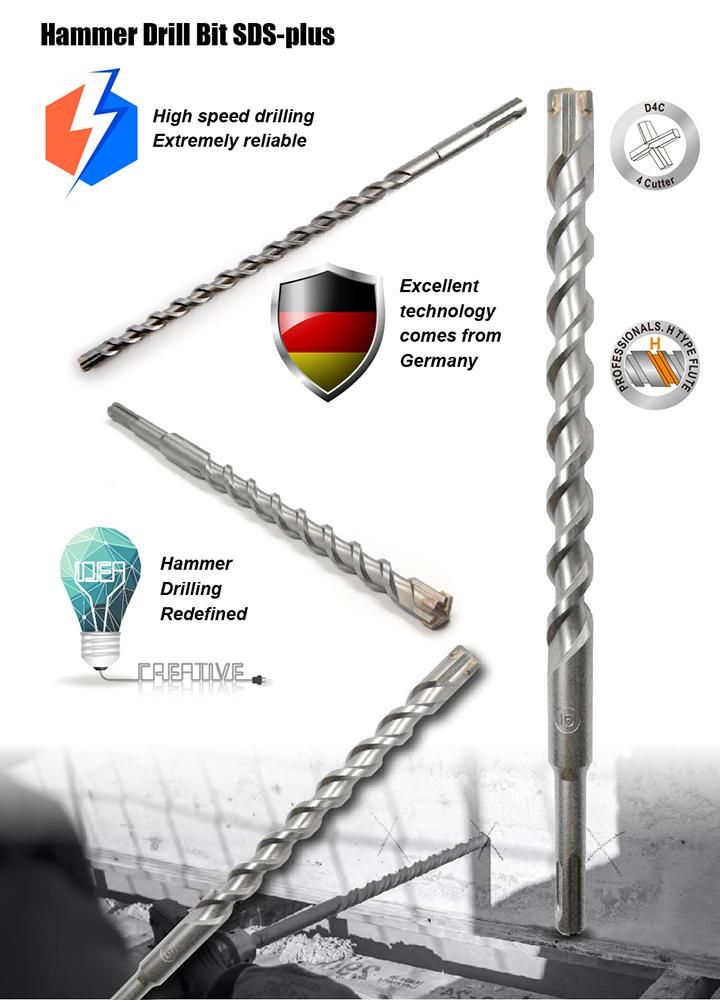

Product Description

*Cross 4Cutter Hammer Drill Bit SDS plus DIN standard for drilling concrete brick stone cement etc.

*Virgin high quality carbide tips on YG8C formulation for concrete stone brick drilling.

*H type of flute design maximizes drilling dust rejection rate without stuffed problem, to increase the drilling speed with more comfortable operation feelings.

*Lower vibration for an easy longer-time drilling job

*SDS-plus shank all 100% pass Bosch audited SDS-plus gouge inspection with the stamped logo fo SDS-plus audited by Bosch.

*SGS-approved anti-rust oil treatment and color paints to protect the final users under Reach standard.



Eco Cost Cross 4cutter Hammer Drill SDS Plus for Concrete Brick Stone Cement DrillingEco Cost Cross 4cutter Hammer Drill SDS Plus for Concrete Brick Stone Cement Drilling
Eco Cost Cross 4cutter Hammer Drill SDS Plus for Concrete Brick Stone Cement Drilling
Eco Cost Cross 4cutter Hammer Drill SDS Plus for Concrete Brick Stone Cement DrillingEco Cost Cross 4cutter Hammer Drill SDS Plus for Concrete Brick Stone Cement Drilling
*Other special sizes are also available on the customers' special request.
Item NumberDiameter(mm)Working Length(mm)Overall Length (mm)
2014.050110 560110
2014.055110 5.560110
2014.060110 660110
2014.065110 6.560110
2014.070110 760110
2014.080110 860110
2014.090110 960110
2014.100110 1060110
2014.110110 1160110
2014.050160 5110160
2014.055160 5.5110160
2014.060160 6110160
2014.065160 6.5110160
2014.070160 7110160
2014.080160 8110160
2014.090160 9110160
2014.100160 10110160
2014.110160 11110160
2014.120160 12110160
2014.130160 13110160
2014.140160 14110160
2014.150160 15110160
2014.160160 16110160
2014.180160 18110160
2014.190160 19110160
2014.200160 20110160
2014.220160 22110160
2014.240160 24110160
2014.250160 25110160
2014.260160 26110160
2014.280160 28110160
2014.300160 30110160
2014.320160 32110160
2014.050180 5130180
2014.055180 5.5130180
2014.060180 6130180
2014.065180 6.5130180
2014.080180 8130180
2014.100180 10130180
2014.050210 5160210
2014.055210 5.5160210
2014.060210 6160210
2014.065210 6.5160210
2014.070210 7160210
2014.080210 8160210
2014.090210 9160210
2014.100210 10160210
2014.110210 11160210
2014.120210 12160210
2014.130210 13160210
2014.140210 14160210
2014.150210 15160210
2014.160210 16160210
2014.180210 18160210
2014.190210 19160210
2014.200210 20160210
2014.220210 22160210
2014.240210 24160210
2014.250210 25160210
2014.260210 26160210
2014.280210 28160210
2014.300210 30160210
2014.320210 32160210
2014.050260 5210260
2014.055260 5.5210260
2014.060260 6210260
2014.065260 6.5210260
2014.070260 7210260
2014.080260 8210260
2014.090260 9210260
2014.100260 10210260
2014.110260 11210260
2014.120260 12210260
2014.130260 13210260
2014.140260 14210260
2014.150260 15210260
2014.160260 16210260
2014.180260 18210260
2014.190260 19210260
2014.200260 20210260
2014.220260 22210260
2014.240260 24210260
2014.250260 25210260
2014.260260 26210260
2014.280260 28210260
2014.300260 30210260
2014.320260 32210260
2014.050310 5260310
2014.055310 5.5260310
2014.060310 6260310
2014.065310 6.5260310
2014.070310 7260310
2014.080310 8260310
2014.090310 9260310
2014.100310 10260310
2014.110310 11260310
2014.120310 12260310
2014.130310 13260310
2014.140310 14260310
2014.150310 15260310
2014.160310 16260310
2014.180310 18260310
2014.190310 19260310
2014.200310 20260310
2014.220310 22260310
2014.240310 24260310
2014.250310 25260310
2014.260310 26260310
2014.280310 28260310
2014.300310 30260310
2014.320310 32260310
2014.050350 5300350
2014.055350 5.5300350
2014.060350 6300350
2014.065350 6.5300350
2014.070350 7300350
2014.080350 8300350
2014.090350 9300350
2014.100350 10300350
2014.110350 11300350
2014.120350 12300350
2014.130350 13300350
2014.140350 14300350
2014.150350 15300350
2014.160350 16300350
2014.180350 18300350
2014.190350 19300350
2014.200350 20300350
2014.220350 22300350
2014.240350 24300350
2014.250350 25300350
2014.260350 26300350
2014.280350 28300350
2014.300350 30300350
2014.320350 32300350
2014.050410 5360410
2014.055410 5.5360410
2014.060410 6360410
2014.065410 6.5360410
2014.070410 7360410
2014.080410 8360410
2014.090410 9360410
2014.100410 10360410
2014.110410 11360410
2014.120410 12360410
2014.130410 13360410
2014.140410 14360410
2014.150410 15360410
2014.160410 16360410
2014.180410 18360410
2014.190410 19360410
2014.200410 20360410
2014.220410 22360410
2014.240410 24360410
2014.250410 25360410
2014.260410 26360410
2014.280410 28360410
2014.300410 30360410
2014.320410 32360410
2014.050460 5410460
2014.055460 5.5410460
2014.060460 6410460
2014.065460 6.5410460
2014.070460 7410460
2014.080460 8410460
2014.090460 9410460
2014.100460 10410460
2014.110460 11410460
2014.120460 12400460
2014.130460 13400460
2014.140460 14400460
2014.150460 15400460
2014.160460 16400460
2014.180460 18400460
2014.190460 19400460
2014.200460 20400460
2014.220460 22400460
2014.240460 24400460
2014.250460 25400460
2014.260460 26400460
2014.280460 28400460
2014.300460 30400460
2014.320460 32400460
2014.060550 6500550
2014.065550 6.5500550
2014.070550 7500550
2014.080550 8500550
2014.090550 9500550
2014.100550 10500550
2014.110550 11500550
2014.120550 12500550
2014.130550 13500550
2014.140550 14500550
2014.150550 15500550
2014.160550 16500550
2014.180550 18500550
2014.190550 19500550
2014.200550 20500550
2014.220550 22500550
2014.240550 24500550
2014.250550 25500550
2014.260550 26500550
2014.280550 28500550
2014.300550 30500550
2014.320550 32500550
2014.060600 6550600
2014.065600 6.5550600
2014.070600 7550600
2014.080600 8550600
2014.090600 9550600
2014.100600 10550600
2014.110600 11550600
2014.120600 12550600
2014.130600 13550600
2014.140600 14550600
2014.150600 15550600
2014.160600 16550600
2014.180600 18550600
2014.190600 19550600
2014.200600 20550600
2014.220600 22550600
2014.240600 24550600
2014.250600 25550600
2014.260600 26550600
2014.280600 28550600
2014.300600 30550600
2014.320600 32550600
2014.080800 8750800
2014.090800 9750800
2014.100800 10750800
2014.110800 11750800
2014.120800 12750800
2014.130800 13750800
2014.140800 14750800
2014.150800 15750800
2014.160800 16750800
2014.180800 18750800
2014.190800 19750800
2014.200800 20750800
2014.220800 22750800
2014.240800 24750800
2014.250800 25750800
2014.260800 26750800
2014.280800 28750800
2014.300800 30750800
2014.320800 32750800
2014.101000 109501000
2014.111000 119501000
2014.121000 129501000
2014.131000 139501000
2014.141000 149501000
2014.151000 159501000
2014.161000 169501000
2014.181000 189501000
2014.191000 199501000
2014.201000 209501000
2014.221000 229501000
2014.241000 249501000
2014.251000 259501000
2014.261000 269501000
2014.281000 289501000
2014.301000 309501000
2014.321000 329501000
