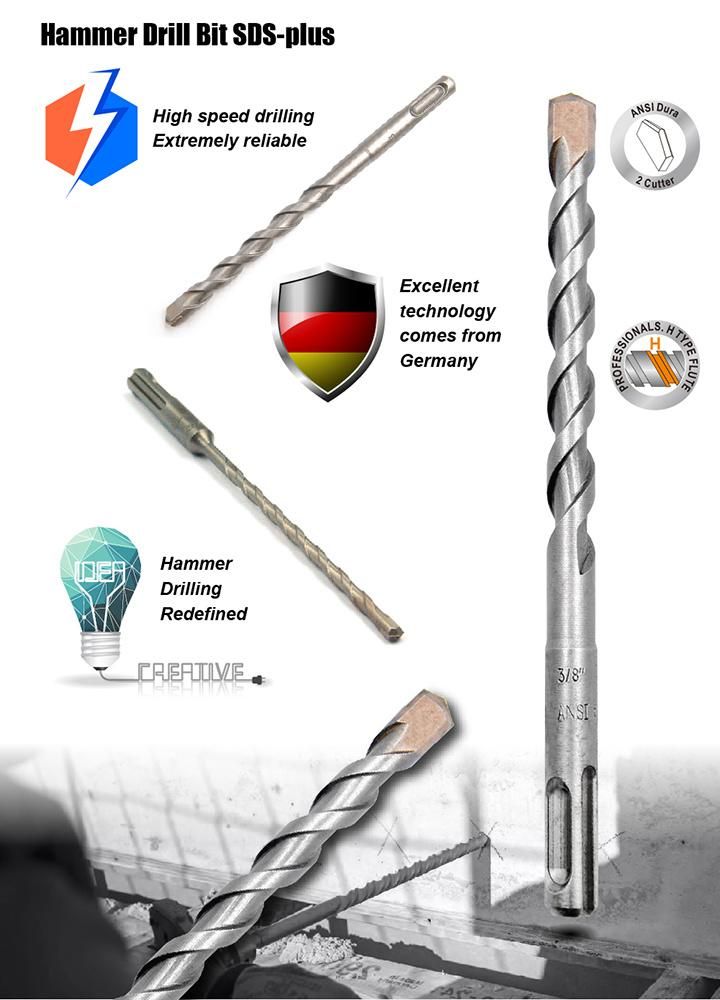

ANSI Premium Quality 2cutter Hammer Drill SDS Plus for Concrete Brick Stone Cement Drilling
ZHENJIANG HTT TOOL CO., LTD.- Customized：Customized
- Standard：AISI
- Length：4-1,2inch to 36inch
- Type：Twist Drill Bit
- Material：Tungsten Carbide
- Usage：Masonry Drilling
Base Info
- Model NO.：2035
- Carbide Type：Virgin Yg9
- Steel Type：40cr
- Flute Type：H
- Cutting Head：Triangle
- Marking：Stamped
- Surface Treatment：Shot-Peened
- Shank Type：SDS Plus
- Welding Type：AVS. (Automatic Vacuum Soldering)
- Certificated：Bosch Audited SDS-Plus Logo
- Transport Package：Clip Hanger, Color Paper Hanger, Paper Box, Tubes
- Specification：5,32inch to 1-1,4inch diameter
- Trademark：OEM, HTT
- Origin：China
- HS Code：8207509000
- Production Capacity：2400000,Year
Description
Basic Info.
Model NO. 2035 Carbide Type Virgin Yg9 Steel Type 40cr Flute Type H Cutting Head Triangle Marking Stamped Surface Treatment Shot-Peened Shank Type SDS Plus Welding Type AVS. (Automatic Vacuum Soldering) Certificated Bosch Audited SDS-Plus Logo Transport Package Clip Hanger, Color Paper Hanger, Paper Box, Tubes Specification 5/32inch to 1-1/4inch diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 2400000/YearProduct Description
*2Cutter Hammer Drill Bit SDS plus ANSI standard for drilling concrete brick stone cement etc.*Virgin high quality carbide tips on YG9 formulation for concrete stone brick drilling.
*H type of flute design maximizes drilling dust rejection rate without stuffed problem, to increase the drilling speed with more comfortable operation feelings.
*Lower vibration for an easy longer-time drilling job
*SDS-plus shank all 100% pass Bosch audited SDS-plus gouge inspection with the stamped logo fo SDS-plus audited by Bosch.
*SGS-approved anti-rust oil treatment and color paints to protect the final users under Reach standard.
*Other special sizes are also available on the customers' special request.
| Item Number | Diameter(inch) | Working Length(inch) | Overall Length(inch) |
| 2035.0532412 | 5/32" | 2-1/2" | 4-1/2" |
| 2035.0316412 | 3/16" | 2-1/2" | 4-1/2" |
| 2035.0732412 | 7/32" | 2-1/2" | 4-1/2" |
| 2035.1564412 | 15/64" | 2-1/2" | 4-1/2" |
| 2035.0104412 | 1/4" | 2-1/2" | 4-1/2" |
| 2035.0932412 | 9/32" | 2-1/2" | 4-1/2" |
| 2035.0516412 | 5/16" | 2-1/2" | 4-1/2" |
| 2035.0308412 | 3/8" | 2-1/2" | 4-1/2" |
| 2035.0716412 | 7/16" | 2-1/2" | 4-1/2" |
| 2035.0532006 | 5/32" | 4" | 6" |
| 2035.0316006 | 3/16" | 4" | 6" |
| 2035.0732006 | 7/32" | 4" | 6" |
| 2035.1564006 | 15/64" | 4" | 6" |
| 2035.0104006 | 1/4" | 4" | 6" |
| 2035.0932006 | 9/32" | 4" | 6" |
| 2035.0516006 | 5/16" | 4" | 6" |
| 2035.0308006 | 3/8" | 4" | 6" |
| 2035.0716006 | 7/16" | 4" | 6" |
| 2035.0102006 | 1/2" | 4" | 6" |
| 2035.0916006 | 9/16" | 4" | 6" |
| 2035.0508006 | 5/8" | 4" | 6" |
| 2035.1116006 | 11/16" | 4" | 6" |
| 2035.0304006 | 3/4" | 4" | 6" |
| 2035.1316006 | 13/16" | 4" | 6" |
| 2035.2732006 | 27/32" | 4" | 6" |
| 2035.0708006 | 7/8" | 4" | 6" |
| 2035.1516006 | 15/16" | 4" | 6" |
| 2035.0100006 | 1" | 4" | 6" |
| 2035.1108006 | 1-1/8" | 4" | 6" |
| 2035.1104006 | 1-1/4" | 4" | 6" |
| 2035.0532007 | 5/32" | 5" | 7" |
| 2035.0316007 | 3/16" | 5" | 7" |
| 2035.0732007 | 7/32" | 5" | 7" |
| 2035.0104007 | 1/4" | 5" | 7" |
| 2035.0516007 | 5/16" | 5" | 7" |
| 2035.0308007 | 3/8" | 5" | 7" |
| 2035.0316008 | 3/16" | 6" | 8" |
| 2035.0732008 | 7/32" | 6" | 8" |
| 2035.1564008 | 15/64" | 6" | 8" |
| 2035.0104008 | 1/4" | 6" | 8" |
| 2035.0932008 | 9/32" | 6" | 8" |
| 2035.0516008 | 5/16" | 6" | 8" |
| 2035.0308008 | 3/8" | 6" | 8" |
| 2035.0716008 | 7/16" | 6" | 8" |
| 2035.0102008 | 1/2" | 6" | 8" |
| 2035.0916008 | 9/16" | 6" | 8" |
| 2035.0508008 | 5/8" | 6" | 8" |
| 2035.1116008 | 11/16" | 6" | 8" |
| 2035.0304008 | 3/4" | 6" | 8" |
| 2035.1316008 | 13/16" | 6" | 8" |
| 2035.2732008 | 27/32" | 6" | 8" |
| 2035.0708008 | 7/8" | 6" | 8" |
| 2035.1516008 | 15/16" | 6" | 8" |
| 2035.0100008 | 1" | 6" | 8" |
| 2035.1108008 | 1-1/8" | 6" | 8" |
| 2035.1104008 | 1-1/4" | 6" | 8" |
| 2035.0316010 | 3/16" | 8" | 10" |
| 2035.0732010 | 7/32" | 8" | 10" |
| 2035.0104010 | 1/4" | 8" | 10" |
| 2035.0932010 | 9/32" | 8" | 10" |
| 2035.0516010 | 5/16" | 8" | 10" |
| 2035.0308010 | 3/8" | 8" | 10" |
| 2035.0716010 | 7/16" | 8" | 10" |
| 2035.0102010 | 1/2" | 8" | 10" |
| 2035.0916010 | 9/16" | 8" | 10" |
| 2035.0508010 | 5/8" | 8" | 10" |
| 2035.1116010 | 11/16" | 8" | 10" |
| 2035.0304010 | 3/4" | 8" | 10" |
| 2035.1316010 | 13/16" | 8" | 10" |
| 2035.2732010 | 27/32" | 8" | 10" |
| 2035.0708010 | 7/8" | 8" | 10" |
| 2035.1516010 | 15/16" | 8" | 10" |
| 2035.0100010 | 1" | 8" | 10" |
| 2035.1108010 | 1-1/8" | 8" | 10" |
| 2035.1104010 | 1-1/4" | 8" | 10" |
| 2035.0316012 | 3/16" | 10" | 12" |
| 2035.0732012 | 7/32" | 10" | 12" |
| 2035.0104012 | 1/4" | 10" | 12" |
| 2035.0932012 | 9/32" | 10" | 12" |
| 2035.0516012 | 5/16" | 10" | 12" |
| 2035.0308012 | 3/8" | 10" | 12" |
| 2035.0716012 | 7/16" | 10" | 12" |
| 2035.0102012 | 1/2" | 10" | 12" |
| 2035.0916012 | 9/16" | 10" | 12" |
| 2035.0508012 | 5/8" | 10" | 12" |
| 2035.1116012 | 11/16" | 10" | 12" |
| 2035.0304012 | 3/4" | 10" | 12" |
| 2035.1316012 | 13/16" | 10" | 12" |
| 2035.2732012 | 27/32" | 10" | 12" |
| 2035.0708012 | 7/8" | 10" | 12" |
| 2035.1516012 | 15/16" | 10" | 12" |
| 2035.0100012 | 1" | 10" | 12" |
| 2035.1108012 | 1-1/8" | 10" | 12" |
| 2035.1104012 | 1-1/4" | 10" | 12" |
| 2035.0316014 | 3/16" | 12" | 14" |
| 2035.0732014 | 7/32" | 12" | 14" |
| 2035.0104014 | 1/4" | 12" | 14" |
| 2035.0932014 | 9/32" | 12" | 14" |
| 2035.0516014 | 5/16" | 12" | 14" |
| 2035.0308014 | 3/8" | 12" | 14" |
| 2035.0716014 | 7/16" | 12" | 14" |
| 2035.0102014 | 1/2" | 12" | 14" |
| 2035.0916014 | 9/16" | 12" | 14" |
| 2035.0508014 | 5/8" | 12" | 14" |
| 2035.1116014 | 11/16" | 12" | 14" |
| 2035.0304014 | 3/4" | 12" | 14" |
| 2035.1316014 | 13/16" | 12" | 14" |
| 2035.2732014 | 27/32" | 12" | 14" |
| 2035.0708014 | 7/8" | 12" | 14" |
| 2035.1516014 | 15/16" | 12" | 14" |
| 2035.0100014 | 1" | 12" | 14" |
| 2035.1108014 | 1-1/8" | 12" | 14" |
| 2035.1104014 | 1-1/4" | 12" | 14" |
| 2035.0316016 | 3/16" | 14" | 16" |
| 2035.0732016 | 7/32" | 14" | 16" |
| 2035.0104016 | 1/4" | 14" | 16" |
| 2035.0932016 | 9/32" | 14" | 16" |
| 2035.0516016 | 5/16" | 14" | 16" |
| 2035.0308016 | 3/8" | 14" | 16" |
| 2035.0716016 | 7/16" | 14" | 16" |
| 2035.0102016 | 1/2" | 14" | 16" |
| 2035.0916016 | 9/16" | 14" | 16" |
| 2035.0508016 | 5/8" | 14" | 16" |
| 2035.1116016 | 11/16" | 14" | 16" |
| 2035.0304016 | 3/4" | 14" | 16" |
| 2035.1316016 | 13/16" | 14" | 16" |
| 2035.2732016 | 27/32" | 14" | 16" |
| 2035.0708016 | 7/8" | 14" | 16" |
| 2035.1516016 | 15/16" | 14" | 16" |
| 2035.0100016 | 1" | 14" | 16" |
| 2035.1108016 | 1-1/8" | 14" | 16" |
| 2035.1104016 | 1-1/4" | 14" | 16" |
| 2035.0316018 | 3/16" | 16" | 18" |
| 2035.0732018 | 7/32" | 16" | 18" |
| 2035.0104018 | 1/4" | 16" | 18" |
| 2035.0932018 | 9/32" | 16" | 18" |
| 2035.0516018 | 5/16" | 16" | 18" |
| 2035.0308018 | 3/8" | 16" | 18" |
| 2035.0716018 | 7/16" | 16" | 18" |
| 2035.0102018 | 1/2" | 16" | 18" |
| 2035.0916018 | 9/16" | 16" | 18" |
| 2035.0508018 | 5/8" | 16" | 18" |
| 2035.1116018 | 11/16" | 16" | 18" |
| 2035.0304018 | 3/4" | 16" | 18" |
| 2035.1316018 | 13/16" | 16" | 18" |
| 2035.2732018 | 27/32" | 16" | 18" |
| 2035.0708018 | 7/8" | 16" | 18" |
| 2035.1516018 | 15/16" | 16" | 18" |
| 2035.0100018 | 1" | 16" | 18" |
| 2035.1108018 | 1-1/8" | 16" | 18" |
| 2035.1104018 | 1-1/4" | 16" | 18" |
| 2035.0104020 | 1/4" | 18" | 20" |
| 2035.0932020 | 9/32" | 18" | 20" |
| 2035.0516020 | 5/16" | 18" | 20" |
| 2035.0308020 | 3/8" | 18" | 20" |
| 2035.0716020 | 7/16" | 18" | 20" |
| 2035.0102020 | 1/2" | 18" | 20" |
| 2035.0916020 | 9/16" | 18" | 20" |
| 2035.0508020 | 5/8" | 18" | 20" |
| 2035.1116020 | 11/16" | 18" | 20" |
| 2035.0304020 | 3/4" | 18" | 20" |
| 2035.1316020 | 13/16" | 18" | 20" |
| 2035.2732020 | 27/32" | 18" | 20" |
| 2035.0708020 | 7/8" | 18" | 20" |
| 2035.1516020 | 15/16" | 18" | 20" |
| 2035.0100020 | 1" | 18" | 20" |
| 2035.1108020 | 1-1/8" | 18" | 20" |
| 2035.1104020 | 1-1/4" | 18" | 20" |
| 2035.0104024 | 1/4" | 22" | 24" |
| 2035.0932024 | 9/32" | 22" | 24" |
| 2035.0516024 | 5/16" | 22" | 24" |
| 2035.0308024 | 3/8" | 22" | 24" |
| 2035.0716024 | 7/16" | 22" | 24" |
| 2035.0102024 | 1/2" | 22" | 24" |
| 2035.0916024 | 9/16" | 22" | 24" |
| 2035.0508024 | 5/8" | 22" | 24" |
| 2035.1116024 | 11/16" | 22" | 24" |
| 2035.0304024 | 3/4" | 22" | 24" |
| 2035.1316024 | 13/16" | 22" | 24" |
| 2035.2732024 | 27/32" | 22" | 24" |
| 2035.0708024 | 7/8" | 22" | 24" |
| 2035.1516024 | 15/16" | 22" | 24" |
| 2035.0100024 | 1" | 22" | 24" |
| 2035.1108024 | 1-1/8" | 22" | 24" |
| 2035.1104024 | 1-1/4" | 22" | 24" |
| 2035.0516032 | 5/16" | 30" | 32" |
| 2035.0308032 | 3/8" | 30" | 32" |
| 2035.0716032 | 7/16" | 30" | 32" |
| 2035.0102032 | 1/2" | 30" | 32" |
| 2035.0916032 | 9/16" | 30" | 32" |
| 2035.0508032 | 5/8" | 30" | 32" |
| 2035.1116032 | 11/16" | 30" | 32" |
| 2035.0304032 | 3/4" | 30" | 32" |
| 2035.1316032 | 13/16" | 30" | 32" |
| 2035.2732032 | 27/32" | 30" | 32" |
| 2035.0708032 | 7/8" | 30" | 32" |
| 2035.1516032 | 15/16" | 30" | 32" |
| 2035.0100032 | 1" | 30" | 32" |
| 2035.1108032 | 1-1/8" | 30" | 32" |
| 2035.1104032 | 1-1/4" | 30" | 32" |
| 2035.0308036 | 3/8" | 34" | 36" |
| 2035.0716036 | 7/16" | 34" | 36" |
| 2035.0102036 | 1/2" | 34" | 36" |
| 2035.0916036 | 9/16" | 34" | 36" |
| 2035.0508036 | 5/8" | 34" | 36" |
| 2035.1116036 | 11/16" | 34" | 36" |
| 2035.0304036 | 3/4" | 34" | 36" |
| 2035.1316036 | 13/16" | 34" | 36" |
| 2035.2732036 | 27/32" | 34" | 36" |
| 2035.0708036 | 7/8" | 34" | 36" |
| 2035.1516036 | 15/16" | 34" | 36" |
| 2035.0100036 | 1" | 34" | 36" |
| 2035.1108036 | 1-1/8" | 34" | 36" |
| 2035.1104036 | 1-1/4" | 34" | 36" |
