Pgm German Quality Supreme Splus Tip Hammer Drill SDS Plus for Reinforcement Concrete Granite Stone Brick Cement Drilling

ZHENJIANG HTT TOOL CO., LTD.
  • Customized：Customized
  • Standard：DIN
  • Length：110mm to 1000mm
  • Type：Twist Drill Bit
  • Material：Tungsten Carbide
  • Usage：Masonry Drilling

Base Info

  • Model NO.：2020
  • Carbide Type：Ceratizit Bc20
  • Steel Type：35CrMo , 40cr
  • Surface Treatment：Shot-Peened
  • Cutter Type：Splus Carbide Tip
  • Flute Type：H
  • Marking：Stamped
  • Welding Type：AVS. (Automatic Vacuum Soldering)
  • Certificated：Pgm, Bosch Audited SDS-Plus Logo
  • Transport Package：Clip Hanger, Color Paper Hanger, Paper Box, Tubes
  • Specification：Diameter 4mm to 32mm
  • Trademark：OEM, HTT
  • Origin：China
  • HS Code：8207509000
  • Production Capacity：3600000,Year

Description

Basic Info.

Model NO. 2020 Carbide Type Ceratizit Bc20 Steel Type 35CrMo / 40cr Surface Treatment Shot-Peened Cutter Type Splus Carbide Tip Flute Type H Marking Stamped Welding Type AVS. (Automatic Vacuum Soldering) Certificated Pgm, Bosch Audited SDS-Plus Logo Transport Package Clip Hanger, Color Paper Hanger, Paper Box, Tubes Specification Diameter 4mm to 32mm Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 3600000/Year

Product Description

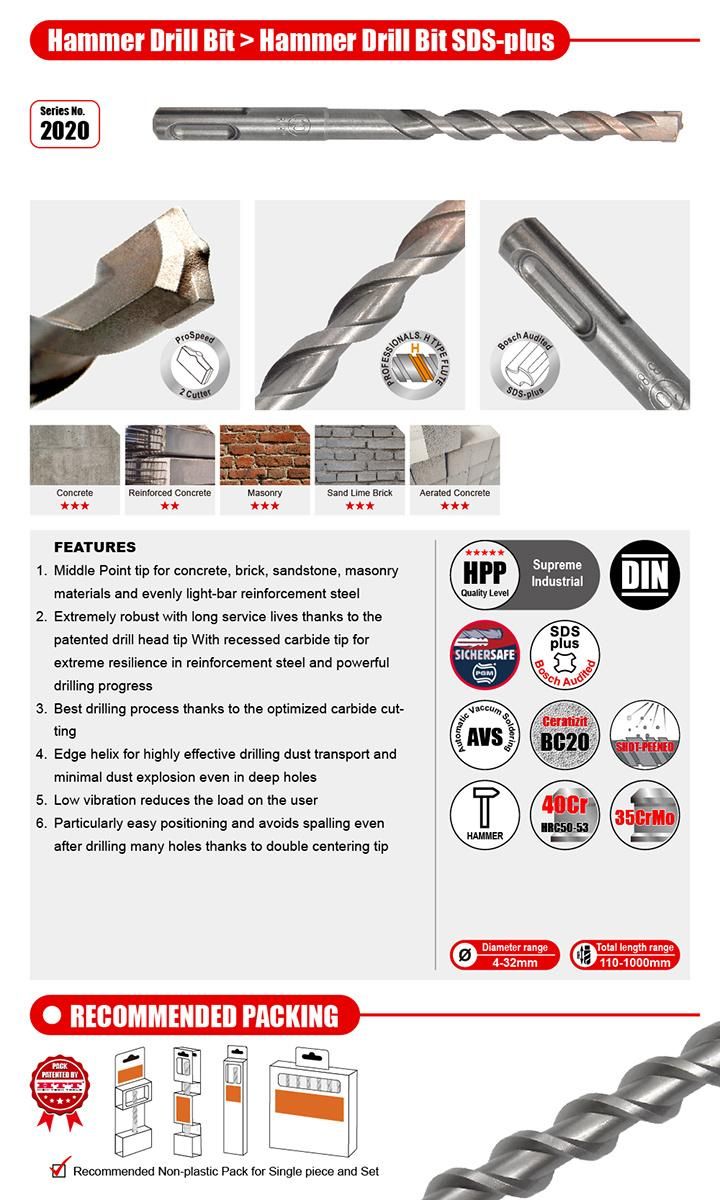

*Hammer Drill SDS plus for Concrete Stone Drilling, PGM certificated on German Quality,  Manufactured by HTT,  2 Cutter W Splus carbide tip made by Ceratizit.

* Carbide tips are supplied By Ceratizit, one of the most professional tungsten carbide manufactures in the globe , which is located in Luxemburg.

* H flute design maximizes the drilling dust rejection rate to fast the drilling speed with more comfortable operation feelings.

* Lower vibration for easy longer time drilling job.

* SDS-plus shank all 100% pass Bosch audited SDS-plus gouge inspection with the stampled logo of SDS-plus audited by Bosch.

* SGS approved anti-rusty oil treatment to protect the final users under Reach standard.

* PGM certificated carbide size, carbide welded symmetry and rotary run-out straightness for the industrial professional applications.

Pgm German Quality Supreme Splus Tip Hammer Drill SDS Plus for Reinforcement Concrete Granite Stone Brick Cement DrillingPgm German Quality Supreme Splus Tip Hammer Drill SDS Plus for Reinforcement Concrete Granite Stone Brick Cement Drilling
 Pgm German Quality Supreme Splus Tip Hammer Drill SDS Plus for Reinforcement Concrete Granite Stone Brick Cement Drilling
Pgm German Quality Supreme Splus Tip Hammer Drill SDS Plus for Reinforcement Concrete Granite Stone Brick Cement DrillingPgm German Quality Supreme Splus Tip Hammer Drill SDS Plus for Reinforcement Concrete Granite Stone Brick Cement Drilling
*Available sizes for Choices(The special sizes are also available on the customers' special request)
Item NumberDiameter(mm)Working Length(mm)Overall Length(mm)
2020.040110 460110
2020.050110 560110
2020.055110 5.560110
2020.060110 660110
2020.065110 6.560110
2020.070110 760110
2020.080110 860110
2020.090110 960110
2020.100110 1060110
2020.110110 1160110
2020.040160 4110160
2020.050160 5110160
2020.055160 5.5110160
2020.060160 6110160
2020.065160 6.5110160
2020.070160 7110160
2020.080160 8110160
2020.090160 9110160
2020.100160 10110160
2020.110160 11110160
2020.120160 12110160
2020.130160 13110160
2020.140160 14110160
2020.150160 15110160
2020.160160 16110160
2020.180160 18110160
2020.190160 19110160
2020.200160 20110160
2020.220160 22110160
2020.240160 24110160
2020.250160 25110160
2020.260160 26110160
2020.280160 28110160
2020.300160 30110160
2020.320160 32110160
2020.040180 4130180
2020.050180 5130180
2020.055180 5.5130180
2020.060180 6130180
2020.065180 6.5130180
2020.080180 8130180
2020.100180 10130180
2020.050210 5160210
2020.055210 5.5160210
2020.060210 6160210
2020.065210 6.5160210
2020.070210 7160210
2020.080210 8160210
2020.090210 9160210
2020.100210 10160210
2020.110210 11160210
2020.120210 12160210
2020.130210 13160210
2020.140210 14160210
2020.150210 15160210
2020.160210 16160210
2020.180210 18160210
2020.190210 19160210
2020.200210 20160210
2020.220210 22160210
2020.240210 24160210
2020.250210 25160210
2020.260210 26160210
2020.280210 28160210
2020.300210 30160210
2020.320210 32160210
2020.050260 5210260
2020.055260 5.5210260
2020.060260 6210260
2020.065260 6.5210260
2020.070260 7210260
2020.080260 8210260
2020.090260 9210260
2020.100260 10210260
2020.110260 11210260
2020.120260 12210260
2020.130260 13210260
2020.140260 14210260
2020.150260 15210260
2020.160260 16210260
2020.180260 18210260
2020.190260 19210260
2020.200260 20210260
2020.220260 22210260
2020.240260 24210260
2020.250260 25210260
2020.260260 26210260
2020.280260 28210260
2020.300260 30210260
2020.320260 32210260
2020.050310 5260310
2020.055310 5.5260310
2020.060310 6260310
2020.065310 6.5260310
2020.070310 7260310
2020.080310 8260310
2020.090310 9260310
2020.100310 10260310
2020.110310 11260310
2020.120310 12260310
2020.130310 13260310
2020.140310 14260310
2020.150310 15260310
2020.160310 16260310
2020.180310 18260310
2020.190310 19260310
2020.200310 20260310
2020.220310 22260310
2020.240310 24260310
2020.250310 25260310
2020.260310 26260310
2020.280310 28260310
2020.300310 30260310
2020.320310 32260310
2020.050350 5300350
2020.055350 5.5300350
2020.060350 6300350
2020.065350 6.5300350
2020.070350 7300350
2020.080350 8300350
2020.090350 9300350
2020.100350 10300350
2020.110350 11300350
2020.120350 12300350
2020.130350 13300350
2020.140350 14300350
2020.150350 15300350
2020.160350 16300350
2020.180350 18300350
2020.190350 19300350
2020.200350 20300350
2020.220350 22300350
2020.240350 24300350
2020.250350 25300350
2020.260350 26300350
2020.280350 28300350
2020.300350 30300350
2020.320350 32300350
2020.050410 5360410
2020.055410 5.5360410
2020.060410 6360410
2020.065410 6.5360410
2020.070410 7360410
2020.080410 8360410
2020.090410 9360410
2020.100410 10360410
2020.110410 11360410
2020.120410 12360410
2020.130410 13360410
2020.140410 14360410
2020.150410 15360410
2020.160410 16360410
2020.180410 18360410
2020.190410 19360410
2020.200410 20360410
2020.220410 22360410
2020.240410 24360410
2020.250410 25360410
2020.260410 26360410
2020.280410 28360410
2020.300410 30360410
2020.320410 32360410
2020.050460 5410460
2020.055460 5.5410460
2020.060460 6410460
2020.065460 6.5410460
2020.070460 7410460
2020.080460 8410460
2020.090460 9410460
2020.100460 10410460
2020.110460 11410460
2020.120460 12400460
2020.130460 13400460
2020.140460 14400460
2020.150460 15400460
2020.160460 16400460
2020.180460 18400460
2020.190460 19400460
2020.200460 20400460
2020.220460 22400460
2020.240460 24400460
2020.250460 25400460
2020.260460 26400460
2020.280460 28400460
2020.300460 30400460
2020.320460 32400460
2020.060550 6500550
2020.065550 6.5500550
2020.070550 7500550
2020.080550 8500550
2020.090550 9500550
2020.100550 10500550
2020.110550 11500550
2020.120550 12500550
2020.130550 13500550
2020.140550 14500550
2020.150550 15500550
2020.160550 16500550
2020.180550 18500550
2020.190550 19500550
2020.200550 20500550
2020.220550 22500550
2020.240550 24500550
2020.250550 25500550
2020.260550 26500550
2020.280550 28500550
2020.300550 30500550
2020.320550 32500550
2020.060600 6550600
2020.065600 6.5550600
2020.070600 7550600
2020.080600 8550600
2020.090600 9550600
2020.100600 10550600
2020.110600 11550600
2020.120600 12550600
2020.130600 13550600
2020.140600 14550600
2020.150600 15550600
2020.160600 16550600
2020.180600 18550600
2020.190600 19550600
2020.200600 20550600
2020.220600 22550600
2020.240600 24550600
2020.250600 25550600
2020.260600 26550600
2020.280600 28550600
2020.300600 30550600
2020.320600 32550600
2020.080800 8750800
2020.090800 9750800
2020.100800 10750800
2020.110800 11750800
2020.120800 12750800
2020.130800 13750800
2020.140800 14750800
2020.150800 15750800
2020.160800 16750800
2020.180800 18750800
2020.190800 19750800
2020.200800 20750800
2020.220800 22750800
2020.240800 24750800
2020.250800 25750800
2020.260800 26750800
2020.280800 28750800
2020.300800 30750800
2020.320800 32750800
2020.101000 109501000
2020.111000 119501000
2020.121000 129501000
2020.131000 139501000
2020.141000 149501000
2020.151000 159501000
2020.161000 169501000
2020.181000 189501000
2020.191000 199501000
2020.201000 209501000
2020.221000 229501000
2020.241000 249501000
2020.251000 259501000
2020.261000 269501000
2020.281000 289501000
2020.301000 309501000
2020.321000 329501000
