• Model NO.：20018
• Carbide Type：Virgin Yg8c
• Steel Type：40cr
• Surface Treatment：Shot-Peened
• Cutter Type：Middle Tip Point 120degrees
• Flute Type：I
• Marking：Stamped
• Welding Type：AVS. (Automatic Vacuum Soldering)
• Certificated：Pgm, Bosch Audited SDS-Plus Logo
• Transport Package：Clip Hanger, Color Paper Hanger, Paper Box, Tubes
• Specification：Diameter 4mm to 32mm
• Trademark：OEM, HTT
• Origin：China
• HS Code：8207509000
• Production Capacity：3600000,Year

Basic Info.

Model NO. 20018 Carbide Type Virgin Yg8c Steel Type 40cr Surface Treatment Shot-Peened Cutter Type Middle Tip Point 120degrees Flute Type I Marking Stamped Welding Type AVS. (Automatic Vacuum Soldering) Certificated Pgm, Bosch Audited SDS-Plus Logo Transport Package Clip Hanger, Color Paper Hanger, Paper Box, Tubes Specification Diameter 4mm to 32mm Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 3600000/Year

Product Description

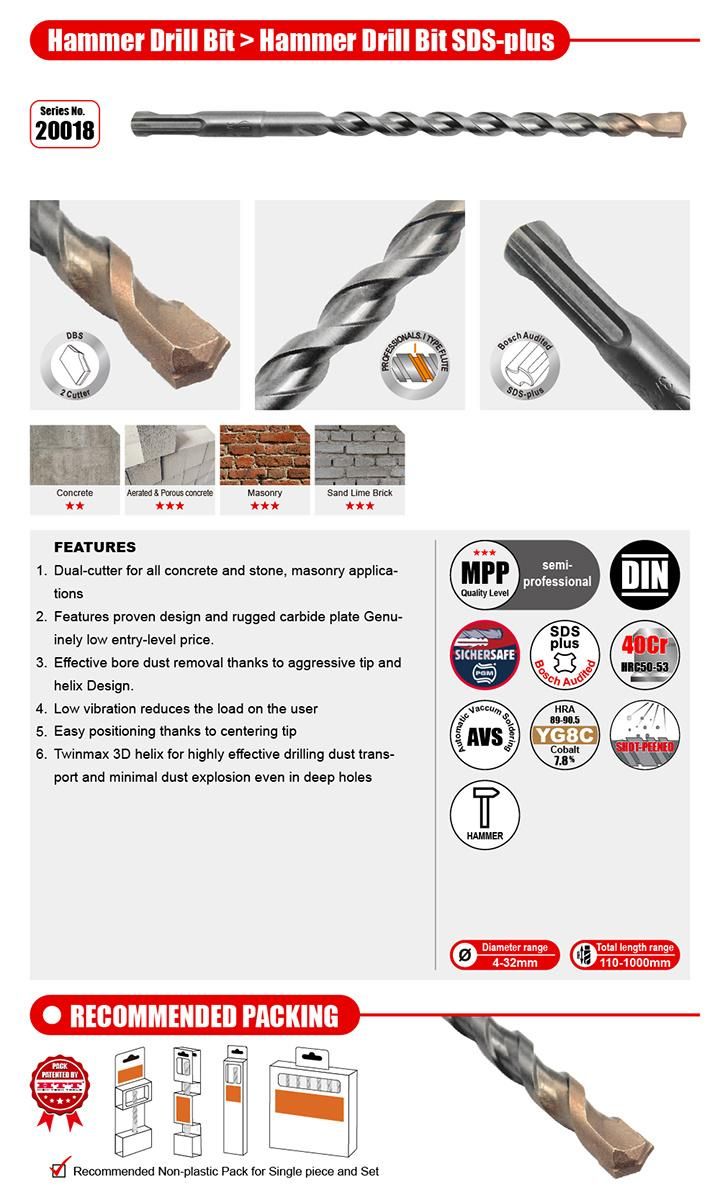

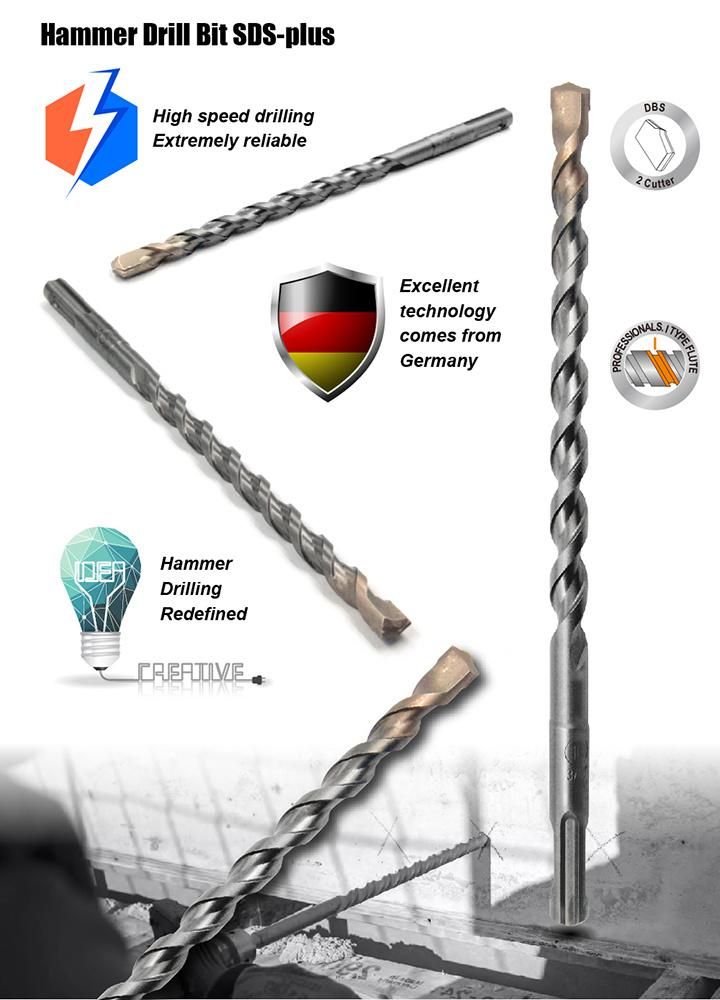

*Hammer Drill SDS plus for Concrete Stone Drilling, PGM certificated, Manufactured by HTT,  2 Cutter carbide tip made of YG8C formulation.

* Carbide tips are specially designed with high durability.

* I flute 3DMax- design maximizes the drilling dust rejection rate to fast the drilling speed with more comfortable operation feelings.

* Lower vibration for an easy longer-time drilling job.

* SDS-plus shank all 100% pass Bosch audited SDS-plus gouge inspection with the stamped logo of SDS-plus audited by Bosch.

* SGS-approved anti-rust oil treatment to protect the final users under Reach standard.

* PGM certificated carbide size, carbide welded symmetry and rotary run-out straightness for the industrial professional applications.





*Available sizes for Choices( The special sizes are also available upon the customers' special request.)

Item Number	Diameter(mm)	Working Length(mm)	Overall Length(mm)
20018.040110	4	60	110
20018.050110	5	60	110
20018.055110	5.5	60	110
20018.060110	6	60	110
20018.065110	6.5	60	110
20018.070110	7	60	110
20018.080110	8	60	110
20018.090110	9	60	110
20018.100110	10	60	110
20018.110110	11	60	110
20018.040160	4	110	160
20018.050160	5	110	160
20018.055160	5.5	110	160
20018.060160	6	110	160
20018.065160	6.5	110	160
20018.070160	7	110	160
20018.080160	8	110	160
20018.090160	9	110	160
20018.100160	10	110	160
20018.110160	11	110	160
20018.120160	12	110	160
20018.130160	13	110	160
20018.140160	14	110	160
20018.150160	15	110	160
20018.160160	16	110	160
20018.180160	18	110	160
20018.190160	19	110	160
20018.200160	20	110	160
20018.220160	22	110	160
20018.240160	24	110	160
20018.250160	25	110	160
20018.260160	26	110	160
20018.280160	28	110	160
20018.300160	30	110	160
20018.320160	32	110	160
20018.040180	4	130	180
20018.050180	5	130	180
20018.055180	5.5	130	180
20018.060180	6	130	180
20018.065180	6.5	130	180
20018.080180	8	130	180
20018.100180	10	130	180
20018.050210	5	160	210
20018.055210	5.5	160	210
20018.060210	6	160	210
20018.065210	6.5	160	210
20018.070210	7	160	210
20018.080210	8	160	210
20018.090210	9	160	210
20018.100210	10	160	210
20018.110210	11	160	210
20018.120210	12	160	210
20018.130210	13	160	210
20018.140210	14	160	210
20018.150210	15	160	210
20018.160210	16	160	210
20018.180210	18	160	210
20018.190210	19	160	210
20018.200210	20	160	210
20018.220210	22	160	210
20018.240210	24	160	210
20018.250210	25	160	210
20018.260210	26	160	210
20018.280210	28	160	210
20018.300210	30	160	210
20018.320210	32	160	210
20018.050260	5	210	260
20018.055260	5.5	210	260
20018.060260	6	210	260
20018.065260	6.5	210	260
20018.070260	7	210	260
20018.080260	8	210	260
20018.090260	9	210	260
20018.100260	10	210	260
20018.110260	11	210	260
20018.120260	12	210	260
20018.130260	13	210	260
20018.140260	14	210	260
20018.150260	15	210	260
20018.160260	16	210	260
20018.180260	18	210	260
20018.190260	19	210	260
20018.200260	20	210	260
20018.220260	22	210	260
20018.240260	24	210	260
20018.250260	25	210	260
20018.260260	26	210	260
20018.280260	28	210	260
20018.300260	30	210	260
20018.320260	32	210	260
20018.050310	5	260	310
20018.055310	5.5	260	310
20018.060310	6	260	310
20018.065310	6.5	260	310
20018.070310	7	260	310
20018.080310	8	260	310
20018.090310	9	260	310
20018.100310	10	260	310
20018.110310	11	260	310
20018.120310	12	260	310
20018.130310	13	260	310
20018.140310	14	260	310
20018.150310	15	260	310
20018.160310	16	260	310
20018.180310	18	260	310
20018.190310	19	260	310
20018.200310	20	260	310
20018.220310	22	260	310
20018.240310	24	260	310
20018.250310	25	260	310
20018.260310	26	260	310
20018.280310	28	260	310
20018.300310	30	260	310
20018.320310	32	260	310
20018.050350	5	300	350
20018.055350	5.5	300	350
20018.060350	6	300	350
20018.065350	6.5	300	350
20018.070350	7	300	350
20018.080350	8	300	350
20018.090350	9	300	350
20018.100350	10	300	350
20018.110350	11	300	350
20018.120350	12	300	350
20018.130350	13	300	350
20018.140350	14	300	350
20018.150350	15	300	350
20018.160350	16	300	350
20018.180350	18	300	350
20018.190350	19	300	350
20018.200350	20	300	350
20018.220350	22	300	350
20018.240350	24	300	350
20018.250350	25	300	350
20018.260350	26	300	350
20018.280350	28	300	350
20018.300350	30	300	350
20018.320350	32	300	350
20018.050410	5	360	410
20018.055410	5.5	360	410
20018.060410	6	360	410
20018.065410	6.5	360	410
20018.070410	7	360	410
20018.080410	8	360	410
20018.090410	9	360	410
20018.100410	10	360	410
20018.110410	11	360	410
20018.120410	12	360	410
20018.130410	13	360	410
20018.140410	14	360	410
20018.150410	15	360	410
20018.160410	16	360	410
20018.180410	18	360	410
20018.190410	19	360	410
20018.200410	20	360	410
20018.220410	22	360	410
20018.240410	24	360	410
20018.250410	25	360	410
20018.260410	26	360	410
20018.280410	28	360	410
20018.300410	30	360	410
20018.320410	32	360	410
20018.050460	5	410	460
20018.055460	5.5	410	460
20018.060460	6	410	460
20018.065460	6.5	410	460
20018.070460	7	410	460
20018.080460	8	410	460
20018.090460	9	410	460
20018.100460	10	410	460
20018.110460	11	410	460
20018.120460	12	400	460
20018.130460	13	400	460
20018.140460	14	400	460
20018.150460	15	400	460
20018.160460	16	400	460
20018.180460	18	400	460
20018.190460	19	400	460
20018.200460	20	400	460
20018.220460	22	400	460
20018.240460	24	400	460
20018.250460	25	400	460
20018.260460	26	400	460
20018.280460	28	400	460
20018.300460	30	400	460
20018.320460	32	400	460
20018.060550	6	500	550
20018.065550	6.5	500	550
20018.070550	7	500	550
20018.080550	8	500	550
20018.090550	9	500	550
20018.100550	10	500	550
20018.110550	11	500	550
20018.120550	12	500	550
20018.130550	13	500	550
20018.140550	14	500	550
20018.150550	15	500	550
20018.160550	16	500	550
20018.180550	18	500	550
20018.190550	19	500	550
20018.200550	20	500	550
20018.220550	22	500	550
20018.240550	24	500	550
20018.250550	25	500	550
20018.260550	26	500	550
20018.280550	28	500	550
20018.300550	30	500	550
20018.320550	32	500	550
20018.060600	6	550	600
20018.065600	6.5	550	600
20018.070600	7	550	600
20018.080600	8	550	600
20018.090600	9	550	600
20018.100600	10	550	600
20018.110600	11	550	600
20018.120600	12	550	600
20018.130600	13	550	600
20018.140600	14	550	600
20018.150600	15	550	600
20018.160600	16	550	600
20018.180600	18	550	600
20018.190600	19	550	600
20018.200600	20	550	600
20018.220600	22	550	600
20018.240600	24	550	600
20018.250600	25	550	600
20018.260600	26	550	600
20018.280600	28	550	600
20018.300600	30	550	600
20018.320600		550	600
20018.080800	8	750	800
20018.090800	9	750	800
20018.100800	10	750	800
20018.110800	11	750	800
20018.120800	12	750	800
20018.130800	13	750	800
20018.140800	14	750	800
20018.150800	15	750	800
20018.160800	16	750	800
20018.180800	18	750	800
20018.190800	19	750	800
20018.200800	20	750	800
20018.220800	22	750	800
20018.240800	24	750	800
20018.250800	25	750	800
20018.260800	26	750	800
20018.280800	28	750	800
20018.300800	30	750	800
20018.320800	32	750	800
20018.101000	10	950	1000
20018.111000	11	950	1000
20018.121000	12	950	1000
20018.131000	13	950	1000
20018.141000	14	950	1000
20018.151000	15	950	1000
20018.161000	16	950	1000
20018.181000	18	950	1000
20018.191000	19	950	1000
20018.201000	20	950	1000
20018.221000	22	950	1000
20018.241000	24	950	1000
20018.251000	25	950	1000
20018.261000	26	950	1000
20018.281000	28	950	1000
20018.301000	30	950	1000
20018.321000	32	950	1000
