Supreme Quality Tct Countersink DIN6.35e Shank Quick Change for Wood Hole Chamfering Work
ZHENJIANG HTT TOOL CO., LTD.- Customized:Customized
- Standard:DIN
- Length:Stub-length
- Type:Twist Drill Bit
- Material:Tungsten Carbide
- Usage:Wood Drilling
Base Info
- Model NO.:328-T
- Carbide Tip:K20
- Body Steel:Hcs
- Pilot Drill:HSS Twist Drill
- Accessories:Inner Hex Screw, Hex Allen Key
- Transport Package:Box, PVC Bag, Blister, Sandwich Blister, Tube
- Specification:9.5mm to 12.7mm diameter
- Trademark:OEM, HTT
- Origin:China
- HS Code:8207509000
- Production Capacity:5000000PCS,Year
Description
Basic Info.
Model NO. 328-T Carbide Tip K20 Body Steel Hcs Pilot Drill HSS Twist Drill Accessories Inner Hex Screw, Hex Allen Key Transport Package Box, PVC Bag, Blister, Sandwich Blister, Tube Specification 9.5mm to 12.7mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 5000000PCS/YearProduct Description

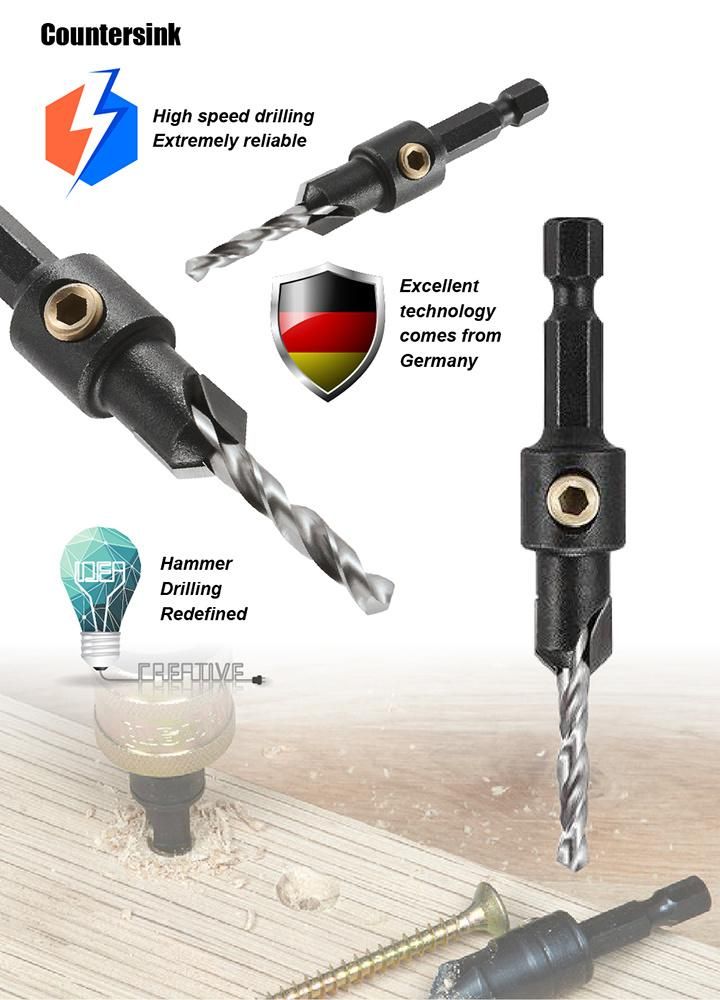

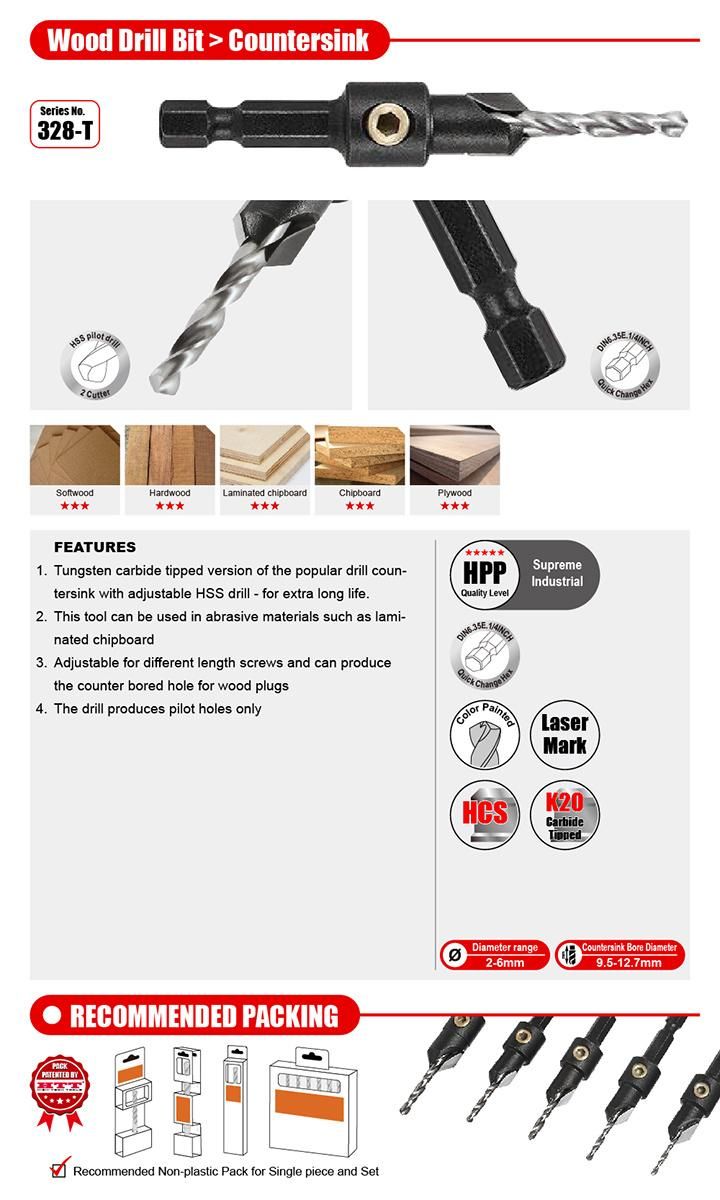

* TCT Countersink with 1/4" Quick Change Hex Shank, DIN6.35E standard shank, Carbide Tipped for 90degrees chamfering, with HSS twist pilot drill bit.*9.5 or 12.7mm diameter countersink for up to 4,6,8,10 or 12 gauge Imperial screws.
* The perfect, fast swap accessory for clean, consistent finishes.
* TCT cutting tips for assured, long-life performance in all timbers and abrasive timber based materials including ply, MDF and chipboard.
* Fitted with high quality 2, 2.5, 2.75, 3.25 or 3.5mm diameter replaceable HSS (High Speed Steel) piloting drill.
* Easily adjustable drill length for different timber thicknesses and fast alignment.
Other special sizes are also available on the customers' special requests.
Item Number | Countersink Bore Diameter(mm) | Countersink Bore Diameter (inch) | HSS pilot drill Diameter(mm) | HSS pilot drill Diameter(inch) | Type / Grade |
328T.03080564 | 9.5 | 3/8" | 2 | 5/64 | For No. 4 H/W |
328T.03080332 | 9.5 | 3/8" | 2.5 | 3/32 | For No.6 S/W |
328T.03080764 | 9.5 | 3/8" | 2.75 | 7/64 | For No.6 S/W |
328T.03080003 | 9.5 | 3/8" | 3 | For 5mm S/W | |
328T.03080108 | 9.5 | 3/8" | 3.25 | 1/8 | For No.10 S/W |
328T.01020964 | 12.7 | 1/2" | 3.5 | 9/64 | For No.12 S/W |
328T.03080004 | 9.5 | 3/8" | 4 | For M4 clearance | |
328T.01020005 | 12.7 | 1/2" | 5 | For M5 clearance | |
328T.01020006 | 12.7 | 1/2" | 6 | For M6 clearance |
