• Model NO.：6116
• Carbide Type：Virgin Yg6ax Extra Thick
• Welding Type：Hfw.(High Frequency Welded)
• Surface Treatment：Sandblasted
• Shank Type：DIN6.35e
• Transport Package：Box, PVC Bag, Blister, Sandwich Blister, Tube
• Specification：3mm to 16mm diameter
• Trademark：OEM, HTT
• Origin：China
• HS Code：8207509000
• Production Capacity：2400000,Year

Basic Info.

Model NO. 6116 Carbide Type Virgin Yg6ax Extra Thick Welding Type Hfw.(High Frequency Welded) Surface Treatment Sandblasted Shank Type DIN6.35e Transport Package Box, PVC Bag, Blister, Sandwich Blister, Tube Specification 3mm to 16mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 2400000/Year

Product Description

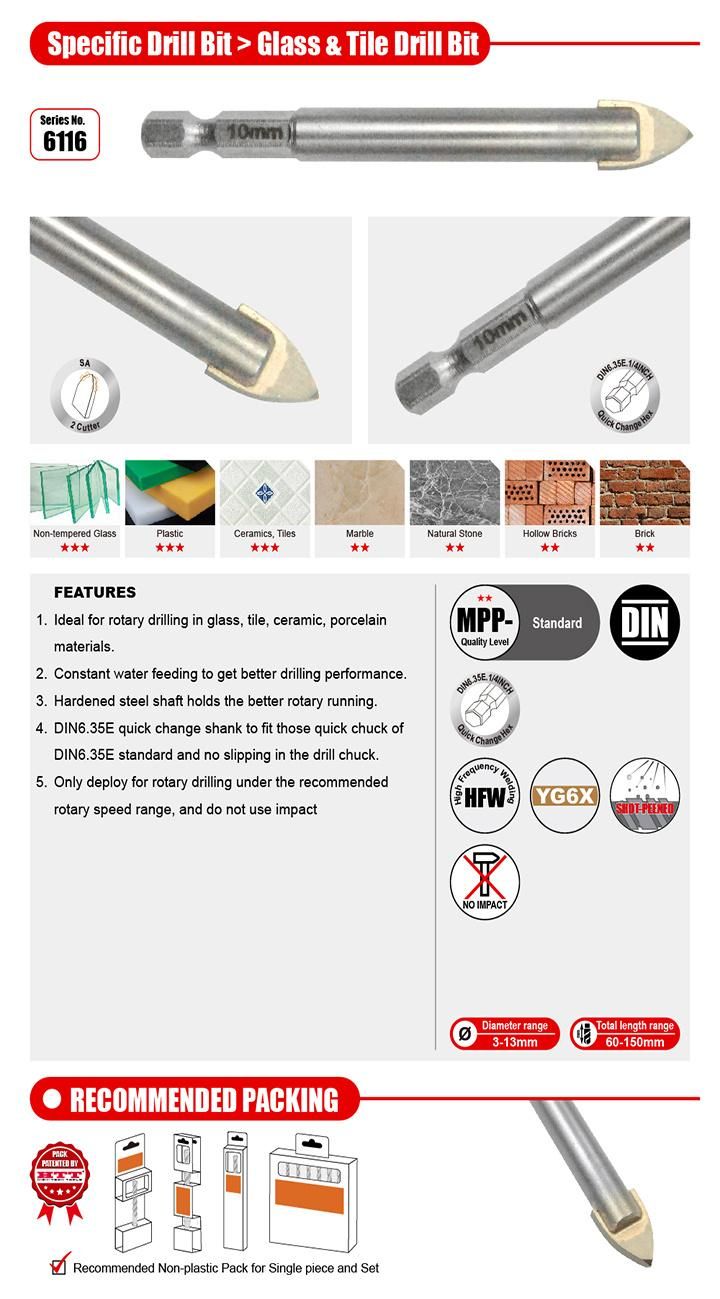

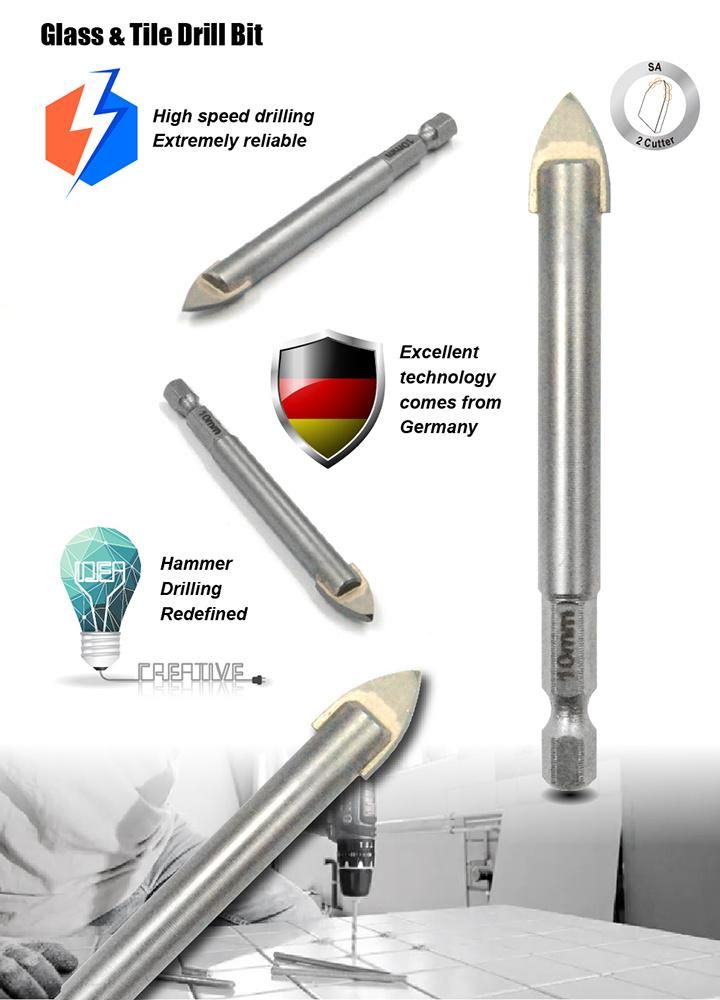

* TCT Spear Glass & Tile Drill Bit, 1/4" Quick Change Hex Shank, DIN6.35E standard shank, Arc spear carbide tip, Diamond Ground edges for sharp cutting various tile glass ceramics, and porcelain.

* Ideal for rotary drilling in glass, tile, ceramic, and porcelain materials.

* Constant water feeding to get better drilling performance.

* Hardened steel shaft holds the better rotary running.

* DIN6.35E quick-change shank to fit that quick chuck of DIN6.35E standard and no slipping in the drill chuck.

* Only deploy for rotary drilling under the recommended rotary speed range and do not use impact.

* Aggressive tip improves precision and penetration.

* Drilling through up to class 5 ceramic tiles.

* Better resistance to high temperature when drilling.

* Suitable for more materials: non-tempered glass, plastic, composite, brick, marble,

Other special sizes are also available on the customers' special requests.

Item Number	Diameter(mm)	Overall Length(mm)
6116.030080	3	80
6116.040080	4	80
6116.050080	5	80
6116.055080	5.5	80
6116.060080	6	80
6116.065080	6.5	80
6116.070100	7	100
6116.080100	8	100
6116.090100	9	100
6116.100100	10	100
6116.120100	12	100
6116.130100	13	100
6116.140100	14	100
6116.160100	16	100
