• Model NO.：922-C
• Surface Treatment：Bright Finish
• Cutter Qty.：3
• Shank Type：Cylindrical
• Chamfering Angle：90degrees
• Transport Package：Box, PVC Bag, Blister, Sandwich Blister, Tube
• Specification：4.3mm to 40mm diameter
• Trademark：OEM, HTT
• Origin：China
• HS Code：8207509000
• Production Capacity：5000000PCS,Year

Basic Info.

Model NO. 922-C Surface Treatment Bright Finish Cutter Qty. 3 Shank Type Cylindrical Chamfering Angle 90degrees Transport Package Box, PVC Bag, Blister, Sandwich Blister, Tube Specification 4.3mm to 40mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 5000000PCS/Year

Product Description

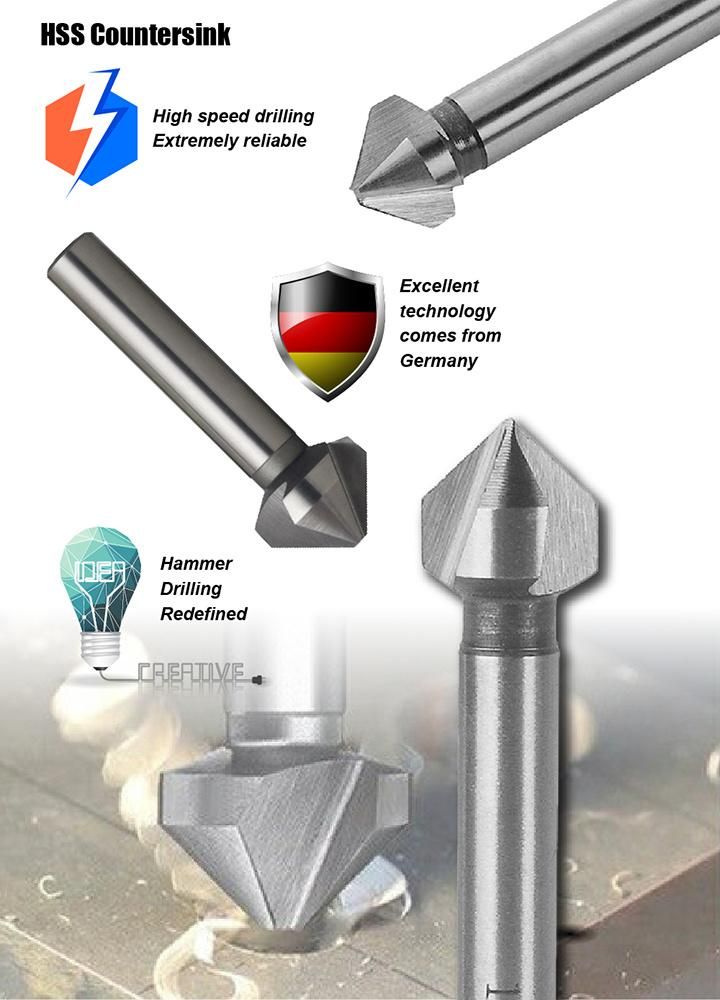

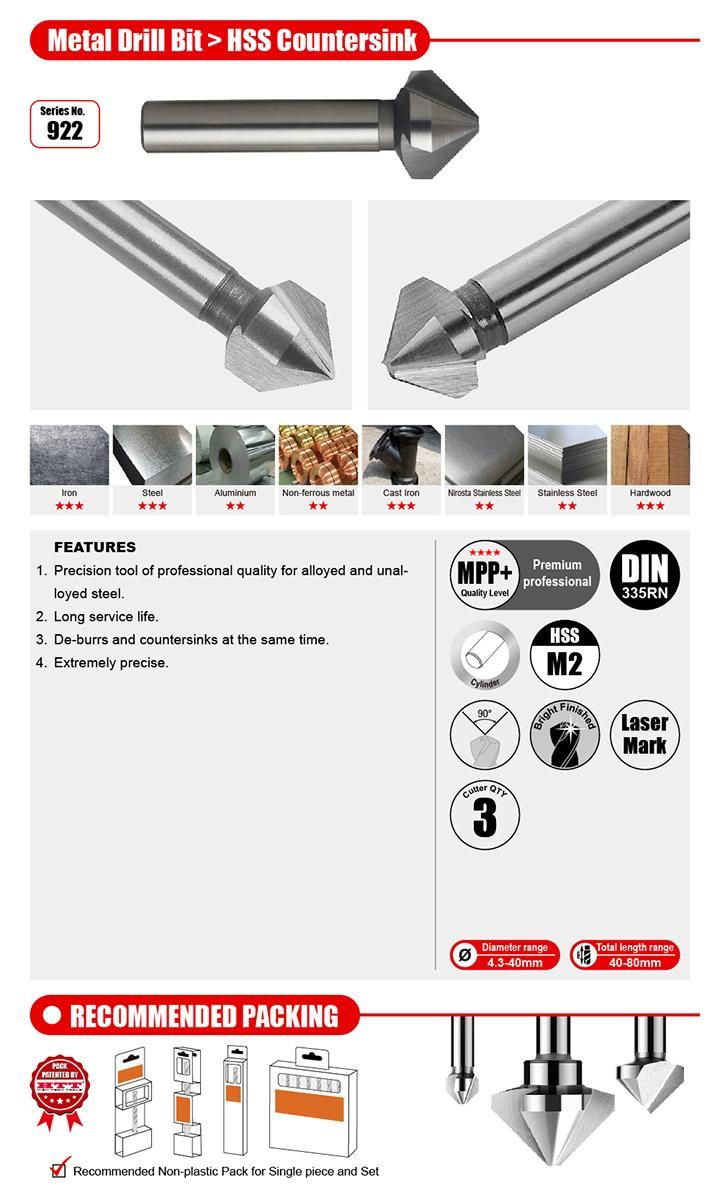

* HSS DIN315 3Cutter Countersink, M2 Bright Finished, Cylindrical Shank, 90degrees Chamfering(60degrees and other angles are also available for choices).

*Three-flute design reduces clogging, improves clearance, and is chatter-free


* High-quality HSS material is ideal for most general purpose applications, offering a combination of hardness and toughness for wear resistance.

* Round shanks allow use with a wide variety of tool holding systems.

Item Number	Diameter(mm)	Top Diameter(mm)	Shank Diameter(mm)	Overall Length(mm)
922.043040	4.30	1.30	4	40
922.048040	4.80	1.50	4	40
922.050040	5.00	1.50	4	40
922.053040	5.30	1.50	4	40
922.058045	5.80	1.50	5	45
922.060045	6.00	1.50	5	45
922.063045	6.30	1.50	5	45
922.070050	7.00	1.80	6	50
922.073050	7.30	1.80	6	50
922.080050	8.00	2.00	6	50
922.083050	8.30	2.00	6	50
922.094050	9.40	2.20	6	50
922.100050	10.00	2.50	6	50
922.104050	10.40	2.50	6	50
922.115056	11.50	2.80	8	56
922.124056	12.40	2.80	8	56
922.134056	13.40	2.90	8	56
922.150060	15.00	3.20	10	60
922.165060	16.50	3.20	8	60
922.165061	16.50	3.20	10	60
922.190063	19.00	3.50	10	63
922.205063	20.50	3.50	10	63
922.230067	23.00	3.80	10	67
922.250067	25.00	3.80	10	67
922.260071	26.00	3.90	12	71
922.280071	28.00	4.00	12	71
922.300071	30.00	4.10	12	71
922.310071	31.00	4.20	12	71
922.370090	37.00	4.80	12	90
922.400080	40.00	10.00	15	80
