• Model NO.：SED-HT1869
• Dia Size：3.0mm-20mm
• Production Art：Fully Ground or Forged
• Min Quantity：200000PCS,Size
• Package：PVC Bag,Setcase,Plastic Box,Metal Box
• Transport Package：PVC Bag, Blister Card, Plastic Box, Metal Box etc
• Specification：ISO9001, SGS, CE
• Trademark：EASYDRILL
• Origin：China
• HS Code：820750900
• Production Capacity：200, 000PCS,Month

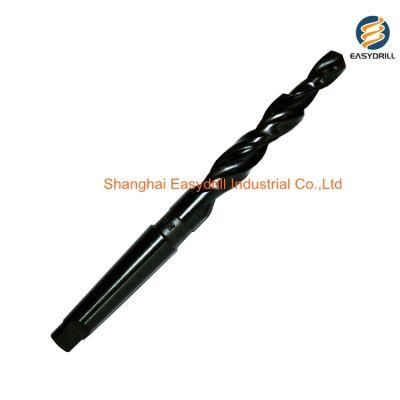

Product Name DIN1869 Fully Ground Heavy Duty Spiral Parabolic Flute HSS Deep Hole Drill Bit for MetalMaterial HSS  (HSS Cobalt is Available)Process Fully Ground   (Rolled & Polished, Rolled, Milled are Available)Standard

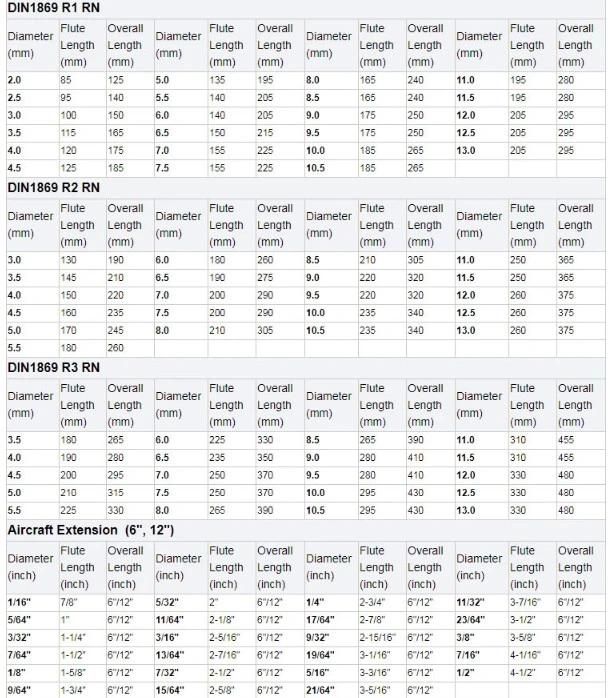

 Extra Long DIN1869                  (DIN338, Stub DIN1897, Long DIN340,

                                                      Blacksmith Reduced Shank 10mm, 13mm, DIN345 Taper Shank are Available)

 6 ,12 inch Airctraft Extensoin   (Jobber Length, Stub Screw Machine Length, Long Taper Length,                                                                           Silver & Deming 1/2" Reduced Shank are Available)

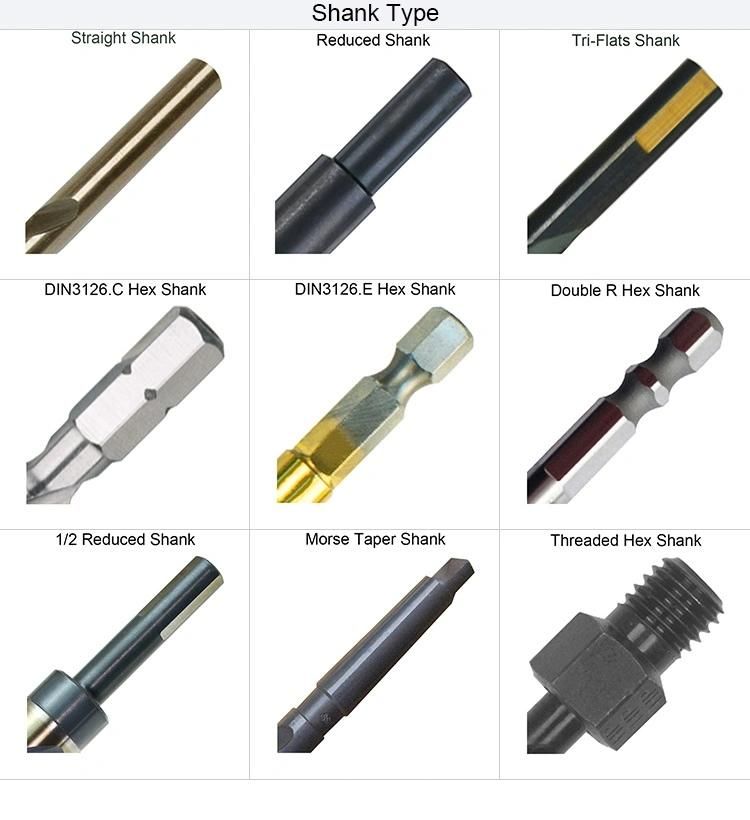

Size 1 - 13mm, 1/16" - 1" Point Type 135 Degree Split Point    (118 Degree Regular Point, Turbo Max Point, Pilot Point are Available)Shank Type

 Straight Shank    (Hex Shank, Tri-Flats Shank, Double R Hex Shank, Reduced Shank,

                               Threaded Hex Shank, Taper Shank are Available)

Helix Angle Regular Spiral Type N    (Slow Spiral Type H, Fast Spiral Type W, Left Hand Spiral are Available)Web & Flute Type Regular Web & Flute    (Thick Web with Parabolic Flute, Heavy Duty Web with Regular Flute are Available)Surface Finish Bright   (Black Oxide, Amber Color, Titanium, Black & Gold, Black & Bright are Available)Package 10/5 Pcs in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell.Features

 1.High-speed steel tools are good for most general purpose applications, offering a combination of hardness   and toughness for wear resistance.

 2.No center punch is needed-the aggressive 135° Quick-Cut points are self-centering and penetrate quickly   with less pressure. Will not "walk" or "wander".

 3.Precision ground point, flutes, body, clearance and drill diameter for the ultimate in accuracy and performance.
 4.High Speed Steel(HSS) Aircraft Extension Drill Bits are made to the NAS 907 type J, type B standard.
 5.Long flute and overall length design is for jobs requiring extra reach or for deep hole drilling.
