High Quality Extension Flat Wood Drill Bit for Wood Plywood Plaster MDF Drilling
ZHENJIANG HTT TOOL CO., LTD.- Customized：Customized
- Standard：DIN
- Length：128mm to 190mm
- Type：Twist Drill Bit
- Material：High Carbon Steel
- Usage：Wood Drilling
Base Info
- Model NO.：342
- Steel Type：Hcs
- Cutting Head：Adjustable Diameter
- Marking：Laser Marking
- Surface Treatment：Bright Finished
- Transport Package：Color Paper Hanger, Paper Box, Tubes, Blister, San
- Specification：15mm to 100mm diameter
- Trademark：OEM, HTT
- Origin：China
- HS Code：8207509000
- Production Capacity：2400000PCS,Year
Description
Basic Info.
Model NO. 342 Steel Type Hcs Cutting Head Adjustable Diameter Marking Laser Marking Surface Treatment Bright Finished Transport Package Color Paper Hanger, Paper Box, Tubes, Blister, San Specification 15mm to 100mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 2400000PCS/YearProduct Description

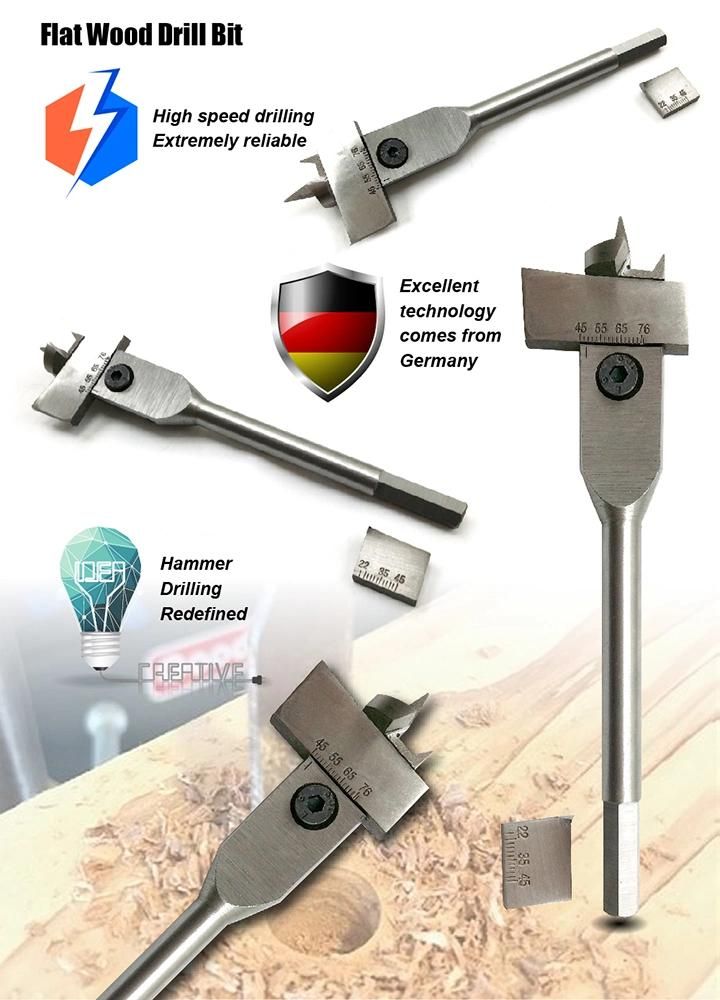

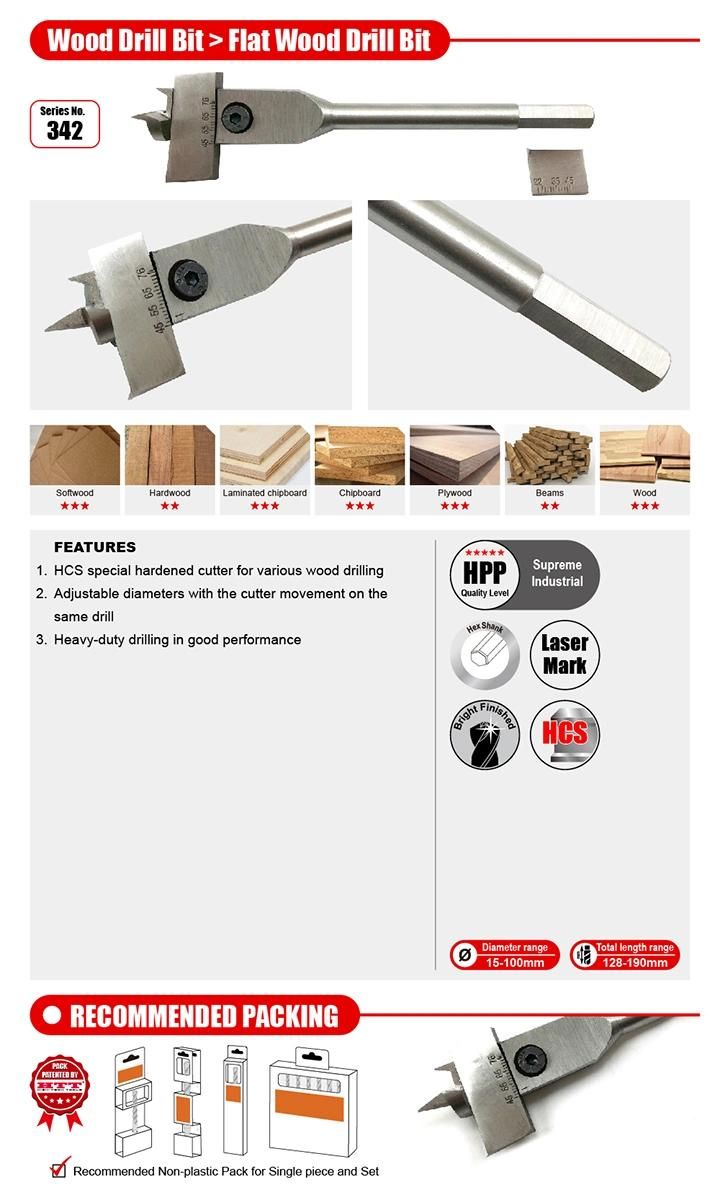

*Professional extension flat wood drill bit to do drilling holes in various hard and soft wood, plywood, chipboard, MDF, plastic board, etc.*Screwed and taper tip make the self-feeding drilling to make job more comfortable and easier.
*SGS-approved anti-rust oil treatment and color paints to protect the final users under Reach standard.
*Other special sizes are also available on the customers' special request.
| Item Number | Diameter(mm) | Diameter(inch) | Cutters | Overall Length(mm) | Shank Type |
| 342.22075190 | 22-75 | 7/8"-3" | 22-45,45-75mm | 190 | Hex |
| 342.15045128 | 15-45 | 5/8"-1-3/4" | 15-45mm | 128 | Hex |
| 342.22045170 | 22-45 | 7/8"-1-3/4" | 22-45mm | 170 | Hex |
| 342.70100170 | 70-100 | 2-3/4"-4" | 70-100mm | 170 | Hex |
| 342.15045128 | 15-45 | 5/8"-1-3/4" | 15-45mm | 128 | Cylindrical |
| 342.22075190 | 22-75 | 7/8"-3" | 22-45,45-75mm | 190 | Cylindrical |
