• Model NO.：5719
• Carbide Type：Ceratizit Bc20 Main Blade, Yg9 Side Blade
• Steel Type：40cr
• Surface Treatment：Shot-Peened
• Cutter Type：Turbo Wave
• Flute Type：4h-Plus
• Marking：Stamped
• Welding Type：AVS. (Automatic Vacuum Soldering)
• Transport Package：Clip Hanger, Color Paper Box, Paper Box, Tubes
• Specification：Diameter 12mm to 42mm
• Trademark：OEM, HTT
• Origin：China
• HS Code：8207509000
• Production Capacity：360000,Year

Basic Info.

Model NO. 5719 Carbide Type Ceratizit Bc20 Main Blade, Yg9 Side Blade Steel Type 40cr Surface Treatment Shot-Peened Cutter Type Turbo Wave Flute Type 4h-Plus Marking Stamped Welding Type AVS. (Automatic Vacuum Soldering) Transport Package Clip Hanger, Color Paper Box, Paper Box, Tubes Specification Diameter 12mm to 42mm Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 360000/Year

Product Description

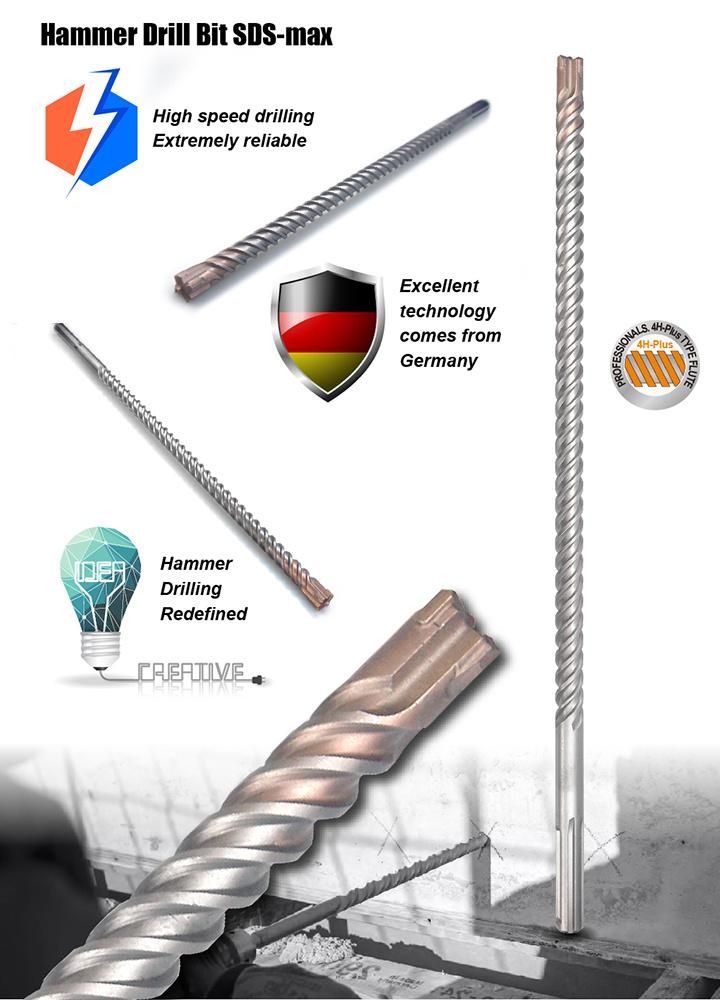

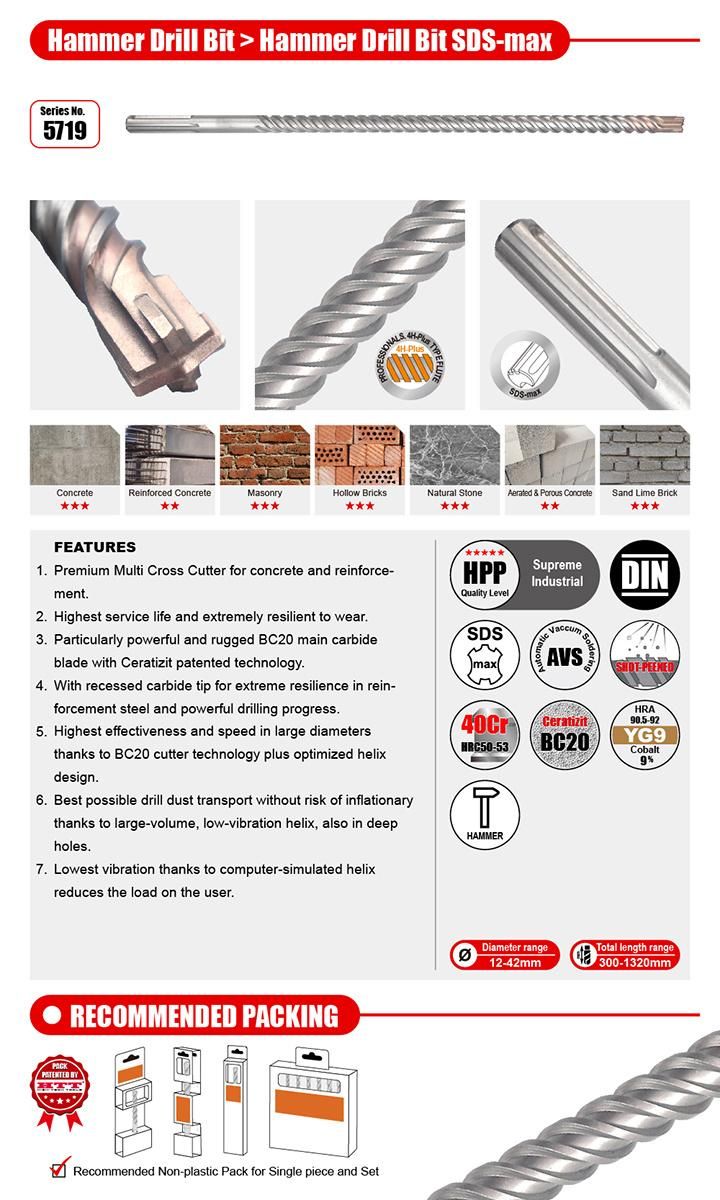

* Mulit Cross Cutter Hammer Drill SDS max, with 4H-plus flutes

* Main blade made by Ceratizit BC20 carbide-tipped for durable heavy-duty drilling.

* SDS-max shank under Bosch audited to fit branded rotary hammers.

* 4H-plus type of flute maximizes the dust-rejection rate in faster drilling.

* Specially hardened steel blank guarantees the best durability to unify the carbide drilling life.

* Fast spiral flute angle design to increase drilling efficiency in building material.

* Design for all concrete drilling.

* The self-centering tip supports more precision.



*Available sizes for Choices( The special sizes are also available on the customers' special request. )

Item Number	Diameter(mm)	Working Length(mm)	Overall Length(mm)
5719.120300	12	160	300
5719.120340	12	200	340
5719.120540	12	400	540
5719.120690	12	550	690
5719.120920	12	800	920
5719.130340	13	200	340
5719.130540	13	400	540
5719.130690	13	550	690
5719.130920	13	800	920
5719.140340	14	200	340
5719.140540	14	400	540
5719.140690	14	550	690
5719.140920	14	800	920
5719.141320	14	1200	1320
5719.150340	15	200	340
5719.150540	15	400	540
5719.150690	15	550	690
5719.150920	15	800	920
5719.151320	15	1200	1320
5719.160340	16	200	340
5719.160540	16	400	540
5719.160690	16	550	690
5719.160920	16	800	920
5719.161320	16	1200	1320
5719.180340	18	200	340
5719.180540	18	400	540
5719.180690	18	550	690
5719.180920	18	800	920
5719.181320	18	1200	1320
5719.190340	19	200	340
5719.190540	19	400	540
5719.190690	19	550	690
5719.190920	19	800	920
5719.200340	20	200	340
5719.200540	20	400	540
5719.200690	20	550	690
5719.200920	20	800	920
5719.201320	20	1200	1320
5719.220340	22	200	340
5719.220540	22	400	540
5719.220690	22	550	690
5719.220920	22	800	920
5719.221320	22	1200	1320
5719.240340	24	200	340
5719.240540	24	400	540
5719.240690	24	550	690
5719.240920	24	800	920
5719.241320	24	1200	1320
5719.250340	25	200	340
5719.250540	25	400	540
5719.250690	25	550	690
5719.250920	25	800	920
5719.251320	25	1200	1320
5719.260340	26	200	340
5719.260540	26	400	540
5719.260670	26	550	670
5719.260920	26	800	920
5719.261320	26	1200	1320
5719.280370	28	250	370
5719.280570	28	450	570
5719.280670	28	550	670
5719.280920	28	800	920
5719.281320	28	1200	1320
5719.300370	30	250	370
5719.300570	30	450	570
5719.300670	30	550	670
5719.300920	30	800	920
5719.301320	30	1200	1320
5719.320370	32	250	370
5719.320570	32	450	570
5719.320670	32	550	670
5719.320920	32	800	920
5719.321320	32	1200	1320
5719.321500	32	1380	1500
5719.350370	35	250	370
5719.350570	35	450	570
5719.350670	35	550	670
5719.350920	35	800	920
5719.351320	35	1200	1320
5719.360370	36	250	370
5719.360570	36	450	570
5719.360670	36	550	670
5719.360920	36	800	920
5719.361320	36	1200	1320
5719.380370	38	250	370
5719.380570	38	450	570
5719.380670	38	550	670
5719.380920	38	800	920
5719.381320	38	1200	1320
5719.400370	40	250	370
5719.400570	40	450	570
5719.400670	40	550	670
5719.400920	40	800	920
5719.401320	40	1200	1320
5719.420370	42	250	370
5719.420570	42	450	570
5719.420670	42	550	670
5719.420920	42	800	920
5719.421320	42	1200	1320
