High Quality 2cutter Hammer Drill SDS Max for Concrete Brick Stone Cement Drilling
ZHENJIANG HTT TOOL CO., LTD.- Customized:Customized
- Standard:DIN
- Length:300mm to 1500mm
- Type:Twist Drill Bit
- Material:Tungsten Carbide
- Usage:Masonry Drilling
Base Info
- Model NO.:5018
- Carbide Type:Virgin Yg9
- Steel Type:40cr
- Surface Treatment:Shot-Peened
- Cutter Type:130degrees Triangle
- Flute Type:H-Plus
- Marking:Stamped
- Welding Type:AVS. (Automatic Vacuum Soldering)
- Transport Package:Clip Hanger, Color Paper Box, Paper Box, Tubes
- Specification:Diameter 10mm to 42mm
- Trademark:OEM, HTT
- Origin:China
- HS Code:8207509000
- Production Capacity:360000,Year
Description
Basic Info.
Model NO. 5018 Carbide Type Virgin Yg9 Steel Type 40cr Surface Treatment Shot-Peened Cutter Type 130degrees Triangle Flute Type H-Plus Marking Stamped Welding Type AVS. (Automatic Vacuum Soldering) Transport Package Clip Hanger, Color Paper Box, Paper Box, Tubes Specification Diameter 10mm to 42mm Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 360000/YearProduct Description

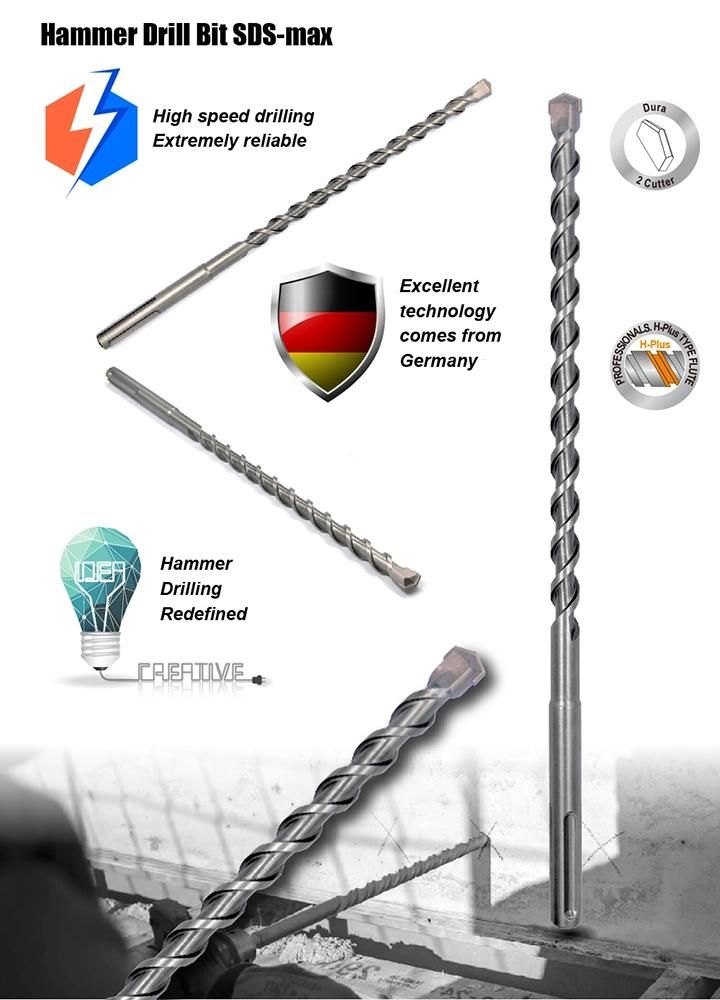

*Hammer Drill SDS max for Concrete Stone Drilling, High Quality, Manufactured by HTT, 2 Cutter Triangle carbide tip made by YG9.* H-plus flute design maximizes the drilling dust rejection rate to fast the drilling speed with more comfortable operation feelings.
* Lower vibration for easy longer time drilling job.
* SDS-max shank all 100% pass SDS-max gouge inspection.
* SGS approved anti-rust oil treatment to protect the final users under Reach standard.
*Heavy duty hammer drilling the concrete, building materials, stone, brick, etc.
*Available sizes for Choices( The special sizes are also available on the customers' special request. )
Item Number | Diameter(mm) | Working Length(mm) | Overall Length(mm) |
5018.100300 | 10 | 160 | 300 |
5018.100340 | 10 | 200 | 340 |
5018.100540 | 10 | 400 | 540 |
5018.100690 | 10 | 550 | 690 |
5018.100920 | 10 | 800 | 920 |
5018.120300 | 12 | 160 | 300 |
5018.120340 | 12 | 200 | 340 |
5018.120540 | 12 | 400 | 540 |
5018.120690 | 12 | 550 | 690 |
5018.120920 | 12 | 800 | 920 |
5018.130340 | 13 | 200 | 340 |
5018.130540 | 13 | 400 | 540 |
5018.130690 | 13 | 550 | 690 |
5018.130920 | 13 | 800 | 920 |
5018.140340 | 14 | 200 | 340 |
5018.140540 | 14 | 400 | 540 |
5018.140670 | 14 | 530 | 670 |
5018.140690 | 14 | 550 | 690 |
5018.140920 | 14 | 800 | 920 |
5018.141320 | 14 | 1200 | 1320 |
5018.150340 | 15 | 200 | 340 |
5018.150540 | 15 | 400 | 540 |
5018.150690 | 15 | 550 | 690 |
5018.150920 | 15 | 800 | 920 |
5018.151320 | 15 | 1200 | 1320 |
5018.160340 | 16 | 200 | 340 |
5018.160540 | 16 | 400 | 540 |
5018.160600 | 16 | 460 | 600 |
5018.160670 | 16 | 630 | 670 |
5018.160690 | 16 | 550 | 690 |
5018.160920 | 16 | 800 | 920 |
5018.161000 | 16 | 880 | 1000 |
5018.161320 | 16 | 1200 | 1320 |
5018.180340 | 18 | 200 | 340 |
5018.180540 | 18 | 400 | 540 |
5018.180670 | 18 | 530 | 670 |
5018.180690 | 18 | 550 | 690 |
5018.180920 | 18 | 800 | 920 |
5018.181000 | 18 | 880 | 1000 |
5018.181320 | 18 | 1200 | 1320 |
5018.190340 | 19 | 200 | 340 |
5018.190540 | 19 | 400 | 540 |
5018.190690 | 19 | 550 | 690 |
5018.190920 | 19 | 800 | 920 |
5018.200340 | 20 | 200 | 340 |
5018.200540 | 20 | 400 | 540 |
5018.200670 | 20 | 530 | 670 |
5018.200690 | 20 | 550 | 690 |
5018.200920 | 20 | 800 | 920 |
5018.201320 | 20 | 1200 | 1320 |
5018.220340 | 22 | 200 | 340 |
5018.220540 | 22 | 400 | 540 |
5018.220670 | 22 | 530 | 670 |
5018.220690 | 22 | 550 | 690 |
5018.220920 | 22 | 800 | 920 |
5018.221320 | 22 | 1200 | 1320 |
5018.240340 | 24 | 200 | 340 |
5018.240540 | 24 | 400 | 540 |
5018.240600 | 24 | 460 | 600 |
5018.240690 | 24 | 550 | 690 |
5018.240920 | 24 | 800 | 920 |
5018.241320 | 24 | 1200 | 1320 |
5018.250340 | 25 | 200 | 340 |
5018.250540 | 25 | 400 | 540 |
5018.250690 | 25 | 550 | 690 |
5018.250920 | 25 | 800 | 920 |
5018.251320 | 25 | 1200 | 1320 |
5018.260340 | 26 | 200 | 340 |
5018.260540 | 26 | 400 | 540 |
5018.260670 | 26 | 550 | 670 |
5018.260920 | 26 | 800 | 920 |
5018.261320 | 26 | 1200 | 1320 |
5018.280370 | 28 | 250 | 370 |
5018.280570 | 28 | 450 | 570 |
5018.280670 | 28 | 550 | 670 |
5018.280920 | 28 | 800 | 920 |
5018.281302 | 28 | 1200 | 1320 |
5018.300370 | 30 | 250 | 370 |
5018.300570 | 30 | 450 | 570 |
5018.300670 | 30 | 550 | 670 |
5018.300920 | 30 | 800 | 920 |
5018.301320 | 30 | 1200 | 1320 |
5018.320370 | 32 | 250 | 370 |
5018.320570 | 32 | 450 | 570 |
5018.320670 | 32 | 550 | 670 |
5018.320920 | 32 | 800 | 920 |
5018.321320 | 32 | 1200 | 1320 |
5018.321500 | 32 | 1380 | 1500 |
5018.350370 | 35 | 250 | 370 |
5018.350570 | 35 | 450 | 570 |
5018.350670 | 35 | 550 | 670 |
5018.350920 | 35 | 800 | 920 |
5018.351320 | 35 | 1200 | 1320 |
5018.360370 | 36 | 250 | 370 |
5018.360570 | 36 | 450 | 570 |
5018.360670 | 36 | 550 | 670 |
5018.360920 | 36 | 800 | 920 |
5018.361320 | 36 | 1200 | 1320 |
5018.380370 | 38 | 250 | 370 |
5018.380570 | 38 | 450 | 570 |
5018.380670 | 38 | 550 | 670 |
5018.380920 | 38 | 800 | 920 |
5018.381320 | 38 | 1200 | 1320 |
5018.400370 | 40 | 250 | 370 |
5018.400540 | 40 | 420 | 540 |
5018.400570 | 40 | 450 | 570 |
5018.400670 | 40 | 550 | 670 |
5018.400920 | 40 | 800 | 920 |
5018.401000 | 40 | 880 | 1000 |
5018.401320 | 40 | 1200 | 1320 |
5018.420370 | 42 | 250 | 370 |
5018.420570 | 42 | 450 | 570 |
5018.420670 | 42 | 550 | 670 |
5018.420920 | 42 | 800 | 920 |
5018.421320 | 42 | 1200 | 1320 |
