• Model NO.：3404
• Carbide Tip Type：Ceratizit Bc05
• Steel Shaft Type：40cr
• Surface Treatment：Shot-Peened
• Shank Type：Tri-Flat
• Flute Type：L
• Tip Grinding：Diamond Ground Tip 4 Face Edges
• Welding Type：AVS.(Automatic Vacuum Soldering)
• Certificate：Pgm
• Transport Package：Paper Hanger, PVC Bag, Skin Pack, Blister Pack
• Specification：3mm to 16mm diameter
• Trademark：OEM, HTT
• Origin：China
• HS Code：8207509000
• Production Capacity：2400000

Basic Info.

Model NO. 3404 Carbide Tip Type Ceratizit Bc05 Steel Shaft Type 40cr Surface Treatment Shot-Peened Shank Type Tri-Flat Flute Type L Tip Grinding Diamond Ground Tip 4 Face Edges Welding Type AVS.(Automatic Vacuum Soldering) Certificate Pgm Transport Package Paper Hanger, PVC Bag, Skin Pack, Blister Pack Specification 3mm to 16mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 2400000

Product Description

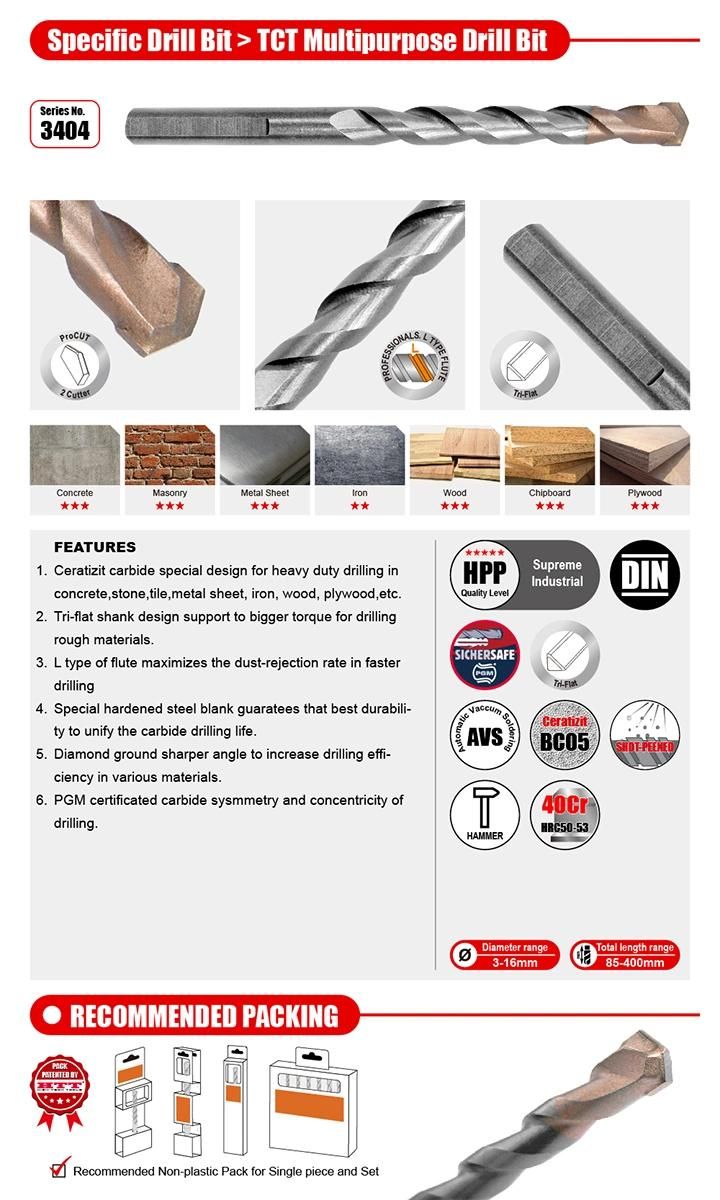

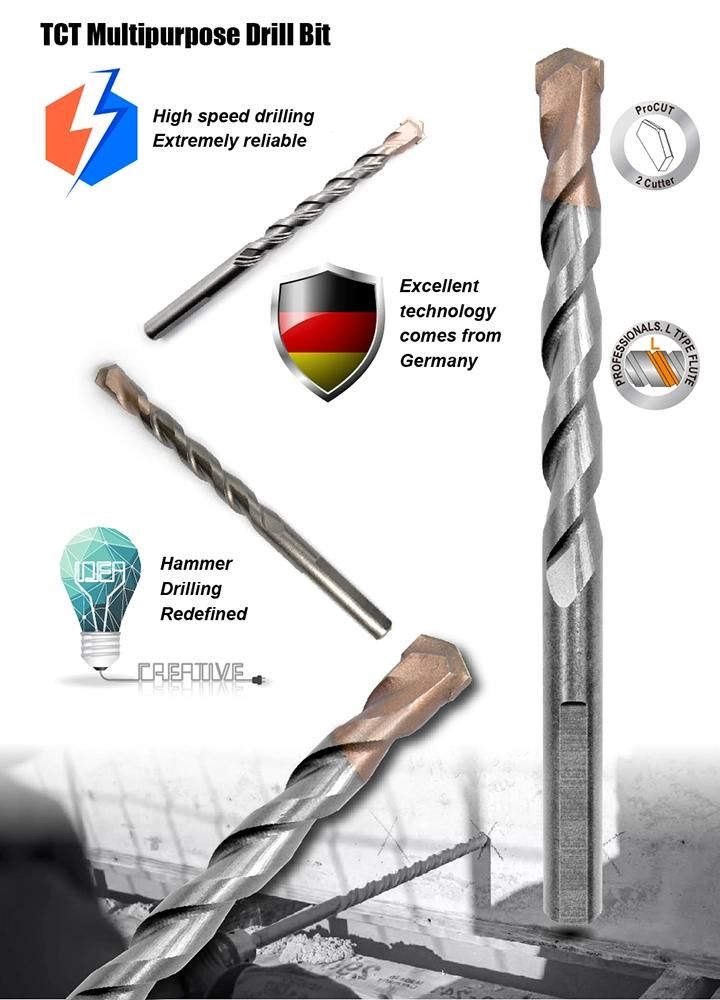

*TCT Universal Drill Bit with Tri-flat shank, Shot-peened surface, Ceratizit BC05 carbide tipped with AVS. technology on Supreme HPP quality performance.

*Diamond ground special angle and sharp edges guarantee the cutting performance in the different materials on higher speed and constant stability.

*Carbide tips are supplied by Ceratizit made in Luxemburg to guarantee higher durability and wear resistance.

*L flute design maximizes the drilling dust rejection rate to fast the drilling speed with more comfortable operation feelings.

*Tri-flat shank design avoids the chuck slipping on the drill shank and guarantees the best torque while drilling stones.

* SGS-approved anti-rust oil treatment to protect the final users under Reach standard.

* PGM certificated carbide size, carbide welded symmetry, and rotary run-out straightness for industrial professional applications.
*Other special sizes are also available on the customers' special requests.

*Note:

3mm to 5.5mm ones with cylinder shank

6mm to 12mm ones with tri-flat shank

13mm to 16mm ones with reduced tri-flat shank.

Item No.	Diameter	Working Length(mm)	Overall Length(mm)	Shank Diameter(mm)
3404.030085	3	45	85	2.8
3404.040085	4	45	85	3.75
3404.040150	4	110	150	3.75
3404.050095	5	50	95	4.5
3404.050150	5	110	150	4.5
3404.055095	5.5	50	95	5.5
3404.055150	5.5	110	150	5.5
3404.060100	6	60	100	5.5
3404.060150	6	110	150	5.5
3404.060250	6	200	250	5.5
3404.060400	6	350	400	5.5
3404.065100	6.5	60	100	6
3404.065150	6.5	110	150	6
3404.065200	6.5	160	200	6
3404.065260	6.5	200	260	6
3404.065400	6.5	350	400	6
3404.070100	7	60	100	6.5
3404.070150	7	110	150	6.5
3404.080120	8	80	120	7.6
3404.080150	8	110	150	7.6
3404.080200	8	130	200	7.6
3404.080250	8	200	250	7.6
3404.080400	8	350	400	7.6
3404.100120	10	80	120	9
3404.100150	10	110	150	9
3404.100200	10	135	200	9
3404.100250	10	200	250	9
3404.100400	10	350	400	9
3404.120160	12	90	150	9.98
3404.120200	12	150	220	9.98
3404.120400	12	350	400	9.98
3404.140150	14	90	150	10
3404.140260	14	200	260	10
3404.140400	14	330	400	10
3404.160150	16	90	150	10
3404.160260	16	200	260	10
3404.160400	16	330	400	10
