Drilling Tools

Home > Product > Drill Bit

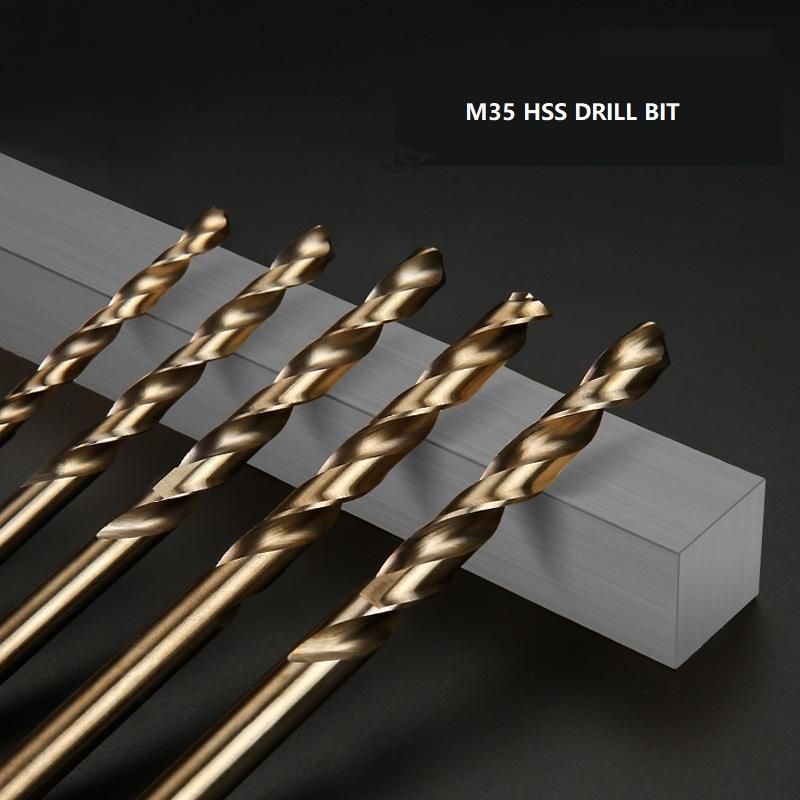

DIN338 Jobber Length Drills HSS M2 Cobalt Twist Drill Bit for Metal Aluminium Stainless Steel PVC Iron (SED-HTJM2)

SHANGHAI EASYDRILL INDUSTRIAL CO., LTD.
  • Customized：Customized
  • Standard：DIN
  • Length：Jobber-length
  • Type：Twist Drill Bit
  • Material：High Speed Steel
  • Usage：Metal Drilling

Base Info

  • Model NO.：SED-HTJM2
  • Dia Size：1mm-20mm
  • Manufacturing Art：Fully Ground or Forged
  • Min Quantity：1000PCS,Size
  • Packing：PVC Bag,Setcase,Plastic Box,Metal Box
  • Surface Finish：Gold
  • Transport Package：PVC Bag, Blister Card, Plastic Box, Metal Box etc
  • Specification：ISO9001, SGS, CE
  • Trademark：EASYDRILL
  • Origin：China
  • HS Code：820750900
  • Production Capacity：200, 000PCS,Month

Description

Product Name DIN338 Jobber Length HSS P6M5 Cobalt Drill BitMaterial HSS Cobalt M35 (HSS is Available)Process Fully Ground (Rolled and Polished, Rolled, Milled are Available)Standard

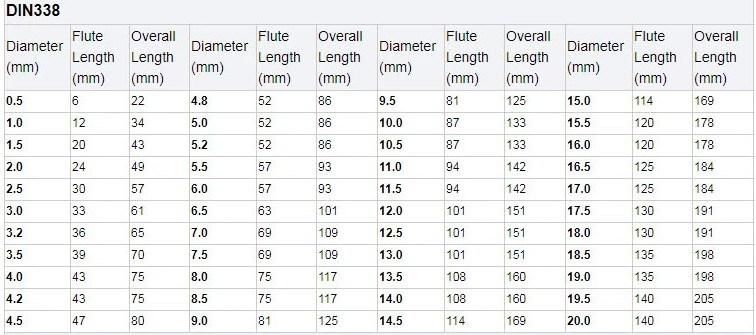

 DIN338                       (Stub DIN1897, Long DIN340, Extra Long DIN1869,

                                    Blacksmith Reduced Shank 10mm, 13mm, DIN345 Taper Shank are Available)

 Jobber Length         (Stub Screw Machine Length, Long Taper Length, Airctraft Extensoin,

                                    Extra Long 12", 18", 24", Silver & Deming 1/2" Reduced Shank are Available)

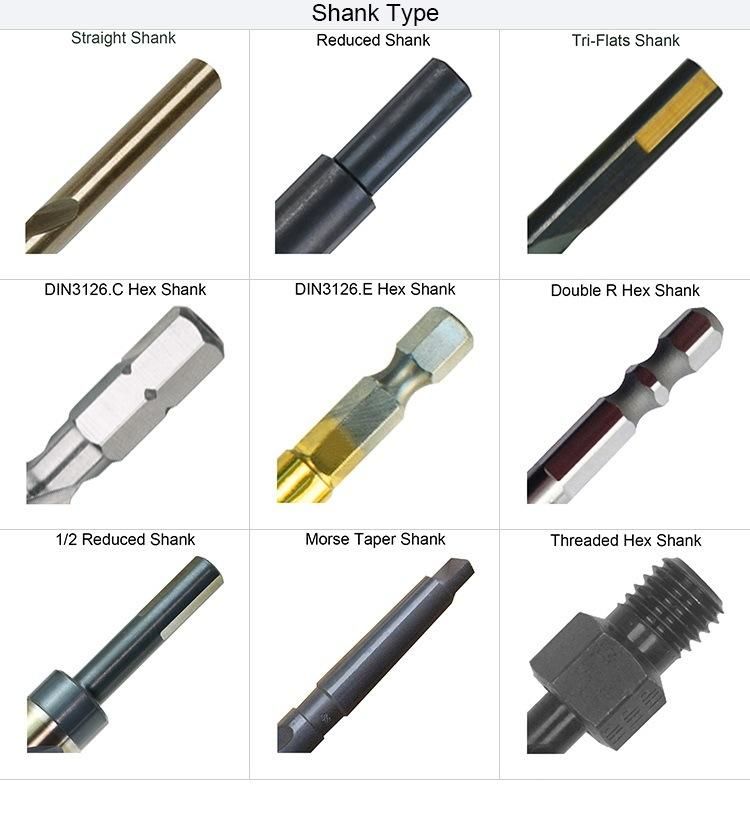

Size 1 - 20mm, 1/16" - 1" , A - Z, 1# - 90#Point Type 135 Degree Split Point      (118 Degree Regular Point, Turbo Max Point, Pilot Point are Available)Shank Type

 Straight Shank         (Hex Shank, Tri-Flats Shank, Double R Hex Shank, Reduced Shank,

                                    Threaded Hex Shank, Taper Shank are Available)

Helix Angle Regular Spiral Type N     (Slow Spiral Type H, Fast Spiral Type W, Left Hand Spiral are Available)Web & Flute Type Regular Web & Flute     (Thick Web with Parabolic Flute, Heavy Duty Web with Regular Flute are Available)Surface Finish Amber Color     (Bright, Black Oxide, Titanium, Black & Gold, Black & Bright are Available)Package 10/5 Pcs in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell.Features

 1.Cobalt drill bits are more expensive than other drill bits, but if you regularly drill through metal, they are a

 good investment since they tend to last longer.
 2.No center punch is needed-the aggressive 135° Quick-Cut points are self-centering and penetrate quickly

 with lesspressure. Will not "walk" or "wander".
 3.Precision ground point, flutes, body, clearance and drill diameter for the ultimate in accuracy and performance.
 4.Ground flutes provide fast chip removal to maximize accuracy and efficiency along the full working surface

 of the bit.
