• Model NO.：SED-CDC
• Dia Size：1mm-20mm
• Production Art：Fully Ground or Forged
• Min Quantity：100PCS
• Packaging：PVC Bag,Setcase,Plastic Box,Metal Box
• Surface Finish：Bright White
• Transport Package：PVC Bag, Blister Card, Plastic Box, Metal Box etc
• Specification：ISO9001, SGS, CE
• Trademark：EASYDRILL
• Origin：China
• HS Code：820750900
• Production Capacity：20, 000PCS,Month

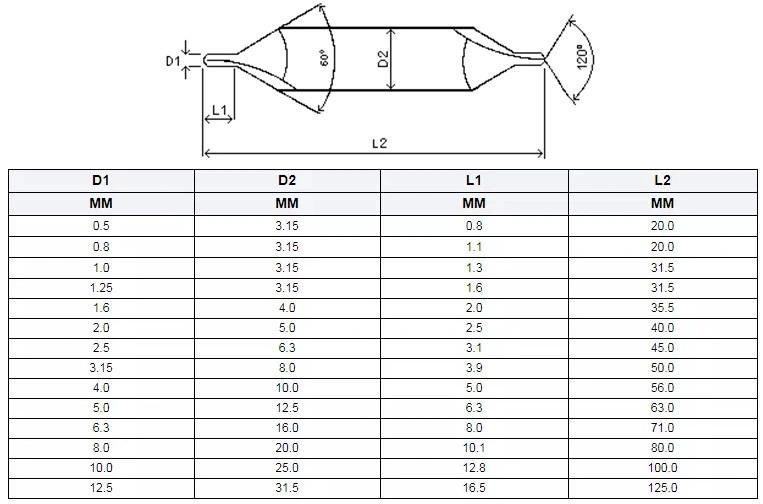

Procuct NameGos 14952-75 P6M5 Combined Center Drill Bit for Centre DrillingMaterialHSS4241,4341,6542(Co5%-M35,Carbide are Available)ProcessFully Ground Flute

Straight Flutes(2 Flute is Available)

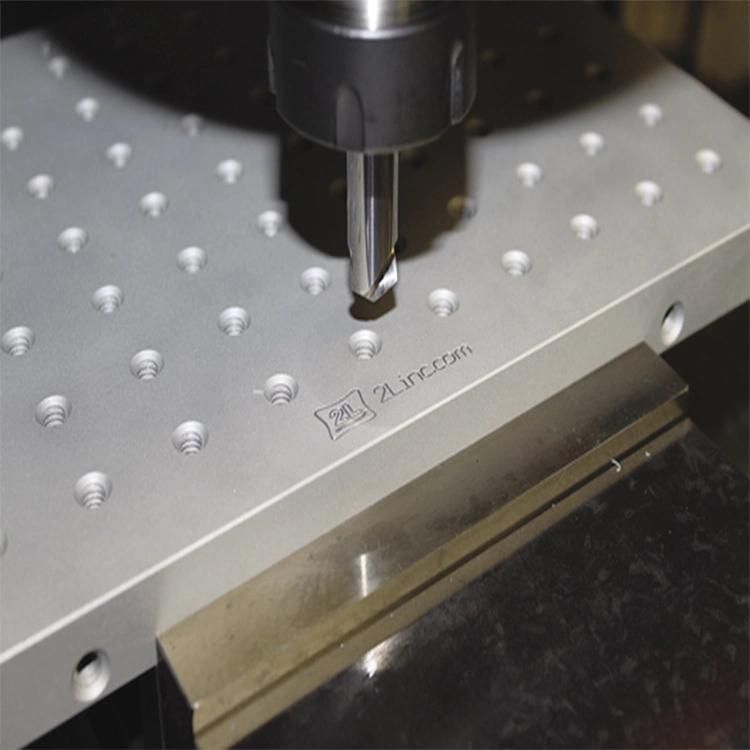

SurfaceBright Finishing(Amber,Tin-coated,AlTiN coated are Available)Size1.0MM-10MMStandardGOS 14952-75(DIN333A,DIN333B,DIN333R ,Extra Long  are Available)Features1.Center drill bits can be used to make conical holes for a lathe center in order to make a starting point for a standard twist drill, designed to prevent the twist drill from walking, as well as for producing center holds in components or work pieces with require machining between centers.
2.Available for all Kinds of Materials: Metal, Alloy, Copper, Iron, Wood, Aluminum, and so on.
3.Durable and Resistance: Center drill bit is made of HSS high speed steel, with extremely sharp blade, low consumption and durable with impact resistance, wear resistance.
4.center drills have flutes and cutting points on both ends. this allows the user with the ability to reverse the drill and utilize both ends.
5.Easy cutting with high speed and excellent offtake of chips.suitable for products with straight flute,oblique flute and spiral fiute,etc.
6.60 degree countersink angle fits all standard centers
7.High-speed steel tools are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance
