Drilling Tools

15PCS HSS Drills Fully Ground HSS Left Hand Twist Drill Bit Set for Metal Drilling with Metal Box (SED-DBSL15-3)

SHANGHAI EASYDRILL INDUSTRIAL CO., LTD.
  • Customized:Customized
  • Standard:DIN, JIS, AISI
  • Length:Jobber-length
  • Type:Twist Drill Bit
  • Material:High Speed Steel
  • Usage:Metal Drilling

Base Info

  • Model NO.:SED-DBSL15-3
  • Dia Size:1,16" - 1,2"
  • Production Art:Fully Ground or Forged
  • Min Quantity:200sets
  • Package:Plastic Box,Metal Box
  • Transport Package:PVC Bag, Blister Card, Plastic Box, Metal Box etc
  • Specification:ISO9001, SGS, CE
  • Trademark:EASYDRILL
  • Origin:China
  • HS Code:820750900
  • Production Capacity:200, 000PCS,Month

Description

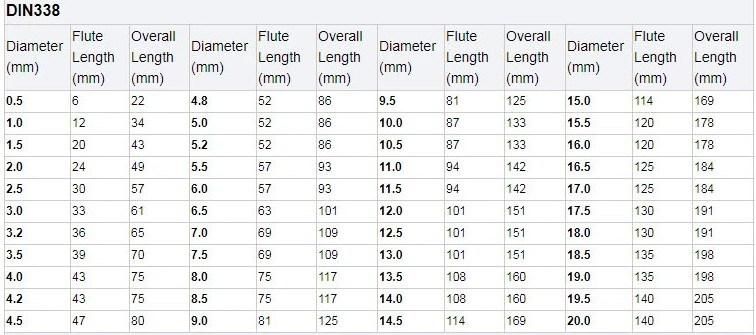

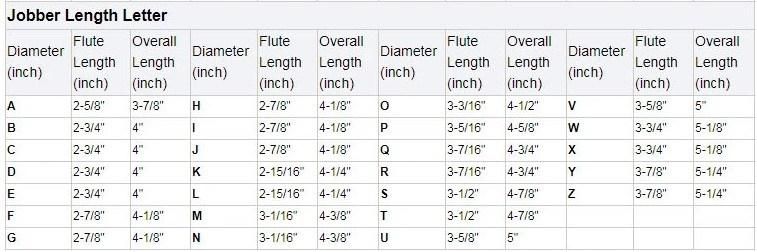

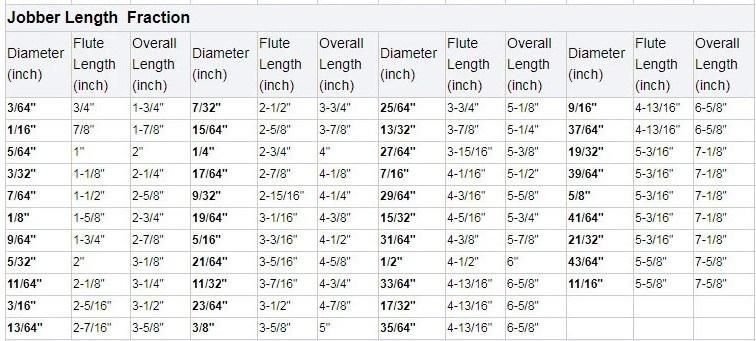

Product Name 15Pcs Fully Ground HSS Left Hand twist Drill Bit Set For Metal Drilling with Metal BoxSize 1/16", 3/32", 1/8", 5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8", 13/32", 7/16", 15/32" , 1/2" Material HSS 4241 4341 6542-M2  (Cobalt 5% M35 is Also Available)Process Fully GroundStandard DIN338 / Jobber Length  (Screw Machine Length is Also Available)Point Angle 135 Degree Split Point  (118 Degree is Available)Flute Type Type N Left Hand Cutting  (Left Hand Broken Screw Extractor is Available)Surface Finish Titanium Coating (Bright, Amber Color, Black & Gold, Black Oxide, Rainbow Color are Also Available)Features

1.Left hand drill bits are ideal for extracting broken, righthand threaded studs and bolts.Designed for use in reversible

drills, lathes and milling machines.
2.Unlike right handed drill bits, the drilling action will assist to loosen sheared off bolts or studs rather than tightening them

further.And made for drilling into hardened steel bolts for creating pilot holes for screw extractors.
3.These unique drill bits are used with your drill operating in reverse and are designed to aid in drilling out broken and

sheared bolts and studs
4.Left Hand Jobber Drills for use in left hand rotation of multiple spindles, gear driven drilling heads, screw machine operations, and lathes.
5.Bit is constructed of M2 high speed steel for the best combination of strength, heat resistance, and wear resistance.
6.The fully ground twist drill bit has a more precise concentricity.

7.135-degree split point reduces feed pressure and allows for easier penetration without work hardening.
