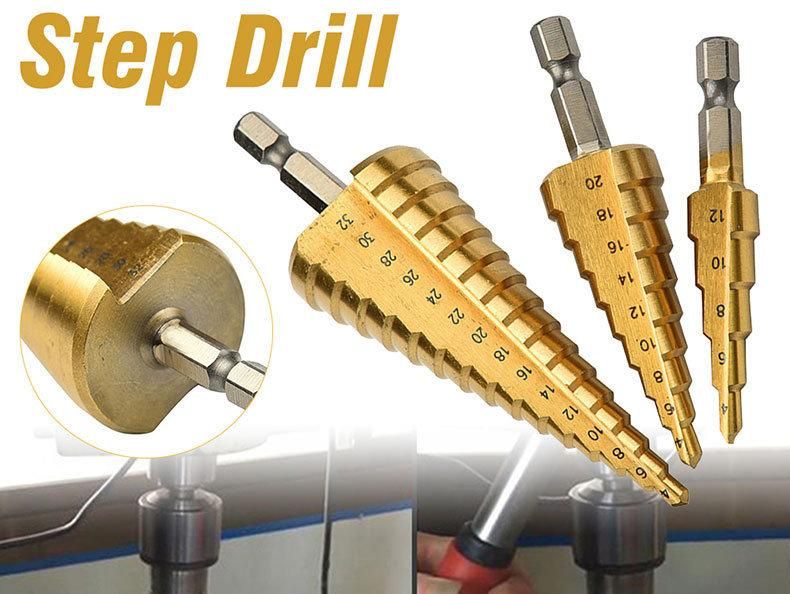

5PCS Inch Hex Shank Spiral Flutes Titanium HSS Step Drill Bit Set for Multiple Hole Metal Cutter in Aluminum Case (SED-SD5-ST)

SHANGHAI EASYDRILL INDUSTRIAL CO., LTD.
  • Customized：Customized
  • Standard：DIN
  • Length：Jobber-length
  • Type：Center Drill Bit
  • Material：High Speed Steel
  • Usage：Metal Drilling

Base Info

  • Model NO.：SED-SD5-ST
  • Dia Size：4mm-20mm
  • Production Art：Fully Ground or Forged
  • Min Quantity：100PCS
  • Packaging：Aluminium Box
  • Surface Finish：Tin Coated
  • Transport Package：PVC Bag, Blister Card, Plastic Box, Metal Box etc
  • Specification：ISO9001, SGS, CE
  • Trademark：EASYDRILL
  • Origin：China
  • HS Code：820750900
  • Production Capacity：200, 000PCS,Month

Description

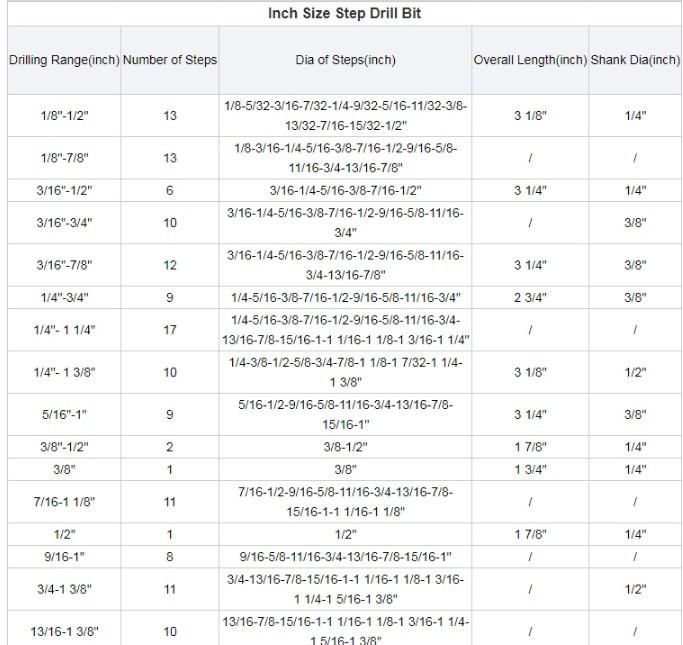

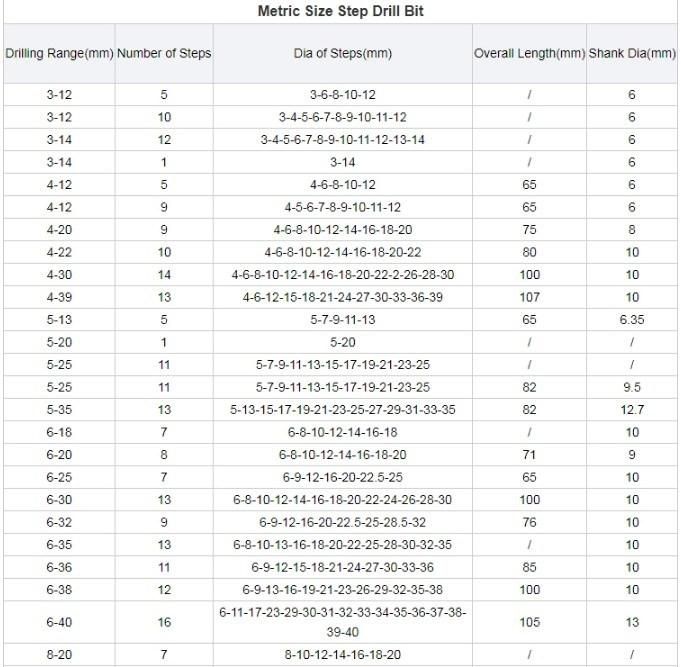

Procuct Name5Pcs  Hex Shank Spiral Flutes Titanium HSS Step Drill Bit Set for Multiple Hole Metal Cutter in Aluminum CaseSize1/8-1/2", 3/16-1/2", 3/16-7/8", 1/4-3/4", 1/4-1 3/8"   (Metric Size is Available)MaterialHSS   (Cobalt M35 is Available)Flute TypeSpiral Flute   (Straight Flute is Available)Flute NumberTwo Flutes   (Single Flute, Three Flutes are Available)Shank Quick Change Hex Shank   (Three Flats Shank, Round Shank, Double R Shank are Available)Surface FinishTiN   (Bright, Black & Amber, Co-coated, Black Oxide, Black & Bright, TiAIN are Available)Package5Pcs in Aluminum CaseFeatures

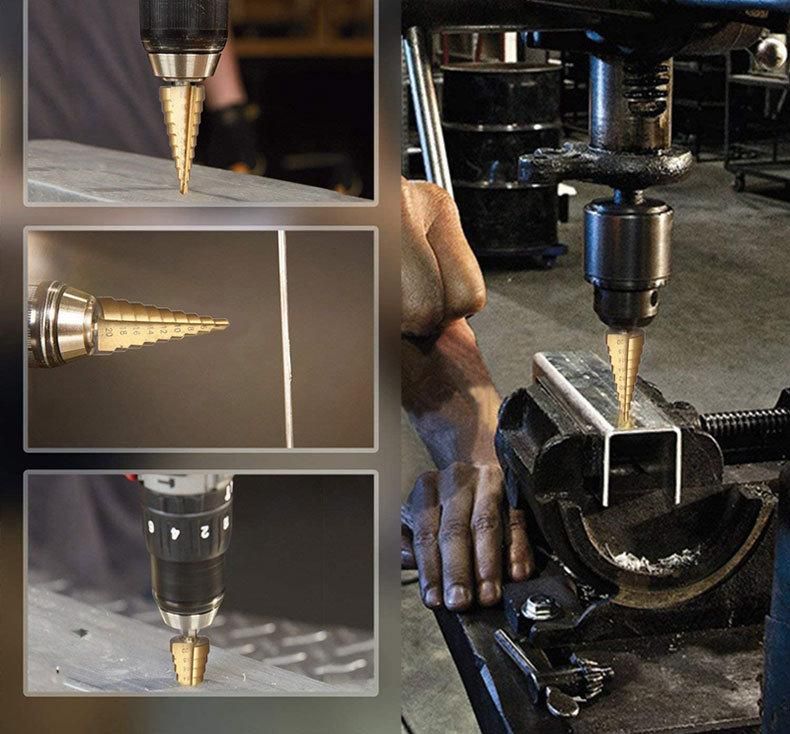

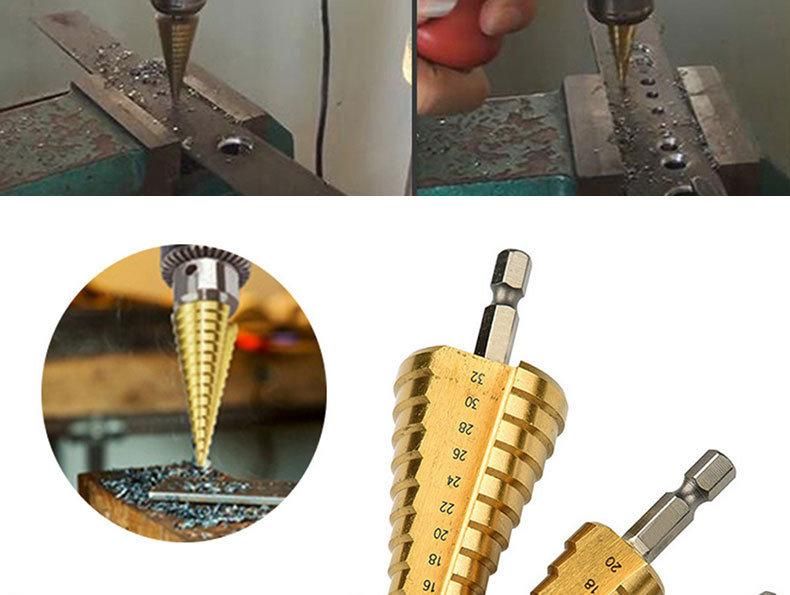

1. Step drill bits are perfect for drilling and enlarging multiple-holes in thin sections of sheet metals, pipes, plexiglass, plastics, wood up to a thickness of 5mm.

2. 135° Spilt Point Tip: increases cutting speed with self-centering and the drills do not run off center.

3. A variety of hole diameters can be drilled using only one tool.

4. The dimension of drilled hole is exact.

5. Two Flute Design: provides longer life and better chip removal.

6. The Spiral Groove: creates better, less noise, less force has to be used.

7. Titanium coating provides up to 2 times the life over high speed steel.

8. Only for rotary use.
