DIN1897 HSS Cobalt Drills Stubby Stub Screw Machine Length HSS Twist Drill Bit for Stainless Steel Metal Aluminium (SED-HS1897)

SHANGHAI EASYDRILL INDUSTRIAL CO., LTD.
  • Customized：Customized
  • Standard：DIN
  • Length：Jobber-length
  • Type：Twist Drill Bit
  • Material：High Speed Steel
  • Usage：Metal Drilling

Base Info

  • Model NO.：SED-HS1897
  • Dia Size：2.0mm-20mm
  • Production Art：Fully Ground or Forged
  • Min Quantity：1000PCS
  • Packing：PVC Bag,Setcase,Plastic Box,Metal Box
  • Surface Finish：Tin-Coated
  • Transport Package：PVC Bag, Blister Card, Plastic Box, Metal Box etc
  • Specification：ISO9001, SGS, CE
  • Trademark：EASYDRILL
  • Origin：China
  • HS Code：820750900
  • Production Capacity：200, 000PCS,Month

Description

Product Name HSS Cobalt Stub DIN1897 Screw Machine Length Twist Drill BitMaterial HSS Cobalt M35 (HSS is Available)Process Fully Ground (Rolled & Polished, Rolled, Milled are Available)Standard

 Stub DIN1897                            (DIN338, Long DIN340, Extra Long DIN1869,

                                                     Blacksmith Reduced Shank 10mm, 13mm, DIN345 Taper Shank are Available)

 Stub Screw Machine Length   (Jobber Length, Long Taper Length, Airctraft Extensoin,

                                                     Extra Long 12", 18", 24", Silver & Deming 1/2" Reduced Shank are Available)

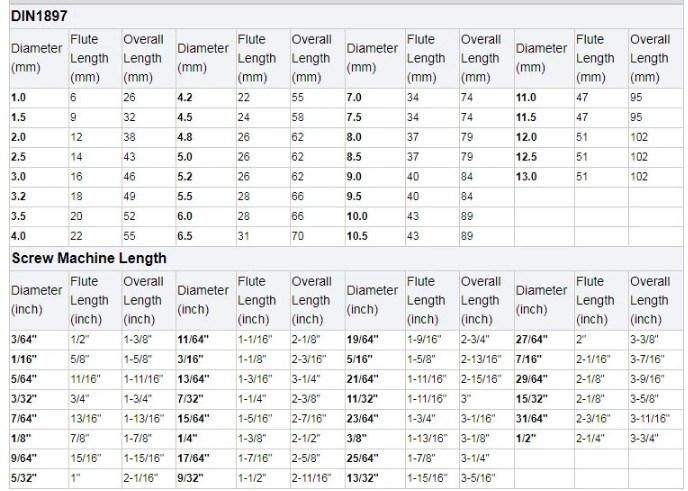

Size 1 - 13mm, 3/64" - 1/2" Point Type 135 Degree Split Point  (118 Degree Regular Point, Turbo Max Point, Pilot Point are Available)Shank Type

 Straight Shank      (Hex Shank, Tri-Flats Shank, Double R Hex Shank, Reduced Shank,

                                 Threaded Hex Shank, Taper Shank are Available)

Helix Angle Regular Spiral Type N  (Slow Spiral Type H, Fast Spiral Type W, Left Hand Spiral are Available)Web & Flute Type Regular Web & Flute  (Thikc Web with Parabolic Flute, Heavy Duty Web with Regular Flute are Available)Surface Finish Amber Color  (Bright, Black Oxide, Titanium, Black & Gold, Black & Bright are Available)Package 10/5 Pcs in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell.Features

 1.Cobalt drill bits are more expensive than other drill bits, but if you regularly drill through metal, they are a

 good investment since they tend to last longer.
 2.No center punch is needed-the aggressive 135° Quick-Cut points are self-centering and penetrate quickly

 with lesspressure. Will not "walk" or "wander".
 3.Precision ground point, flutes, body, clearance and drill diameter for the ultimate in accuracy and performance
