Black and Amber Finish HSS Jobber Length Drills Fully Ground Turbomax HSS Twist Drill Bit for Metal Stainless Steel Drilling with Triangle Shank (SED-HTBA)

SHANGHAI EASYDRILL INDUSTRIAL CO., LTD.
  • Customized：Customized
  • Standard：DIN
  • Length：Jobber-length
  • Type：Twist Drill Bit
  • Material：High Speed Steel
  • Usage：Metal Drilling

Base Info

  • Model NO.：SED-HTBA
  • Dia Size：1.0mm-20mm
  • Production Art：Fully Ground or Forged
  • Min Quantity：1000PCS
  • Packing：PVC Bag,Setcase,Plastic Box,Metal Box
  • Surface Finish：Black and Amber
  • Transport Package：PVC Bag, Blister Card, Plastic Box, Metal Box etc
  • Specification：ISO9001, SGS, CE
  • Trademark：EASYDRILL
  • Origin：China
  • HS Code：820750900
  • Production Capacity：200, 000PCS,Month

Description

Product Name Black and Amber Finish Jobber Length HSS Fully Ground TurboMax twist Drill Bit for MetalMaterial HSS  (HSS Cobalt is Available)Process Fully Ground   (Rolled & Polshed, Rolled, Milled are Available)Standard

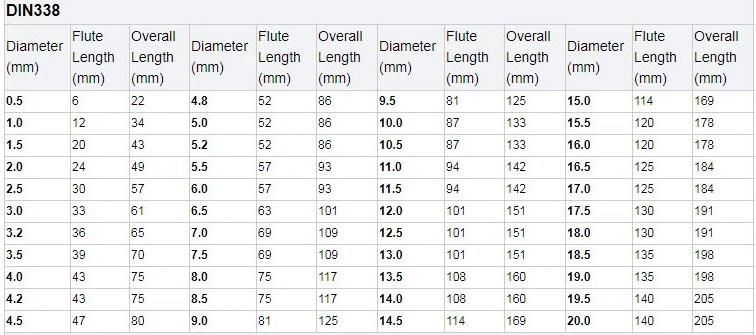

 DIN338                (Stub DIN1897, Long DIN340, Extra Long DIN1869,

                              Blacksmith Reduced Shank 10mm, 13mm, DIN345 Taper Shank are Available)

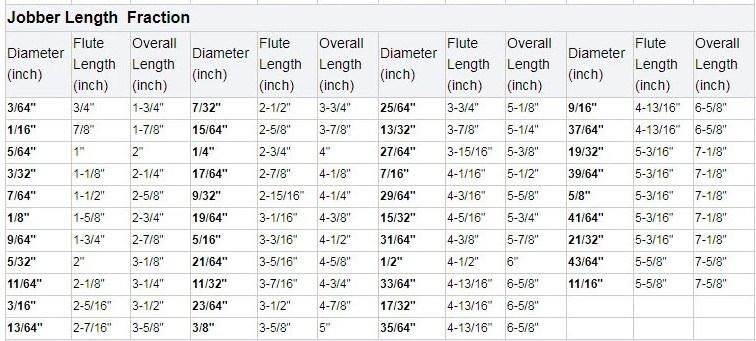

 Jobber Length   (Stub Screw Machine Length, Long Taper Length, Airctraft Extensoin,

                              Extra Long 12", 18", 24", Silver & Deming 1/2" Reduced Shank are Available)

Size 1/16" - 1" Point Type Turbo Max Point    (118 Degree Regular Point, 135 Degree Split Point, Pilot Point are Available)Shank Type

 Tri-Flats Shank   (Straight Shank, Hex Shank, Double R Hex Shank, Reduced Shank,

                               Threaded Hex Shank,Taper Shank are Available)

Helix Angle Regular Spiral Type N  (Slow Spiral Type H, Fast Spiral Type W, Left Hand Spiral are Available)Web & Flute Type Regular Web & Flute  (Thick Web with Parabolic Flute, Heavy Duty Web with Regular Flute are Available)Surface Finish Black & Gold (Bright, Black Oxide, Amber Color, Titanium, Black & Bright are Available)Package 10/5 Pcs in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell.Features

 1.Made from premium high speed steel with black and gold finish for added corrosion resistance.

 2.Revolutionary tip design stays sharper longer and drills up to 10x faster than other leading drill bits.

 3.Precision ground point, flutes, body, clearance and drill diameter for the ultimate in accuracy and performance.
 4.Ground flutes provide fast chip removal to maximize accuracy and efficiency along the full working surface

 of the bit.
 5.Self-centering TURBOMAX tip for clean entry and fast starts; stays sharp longer
