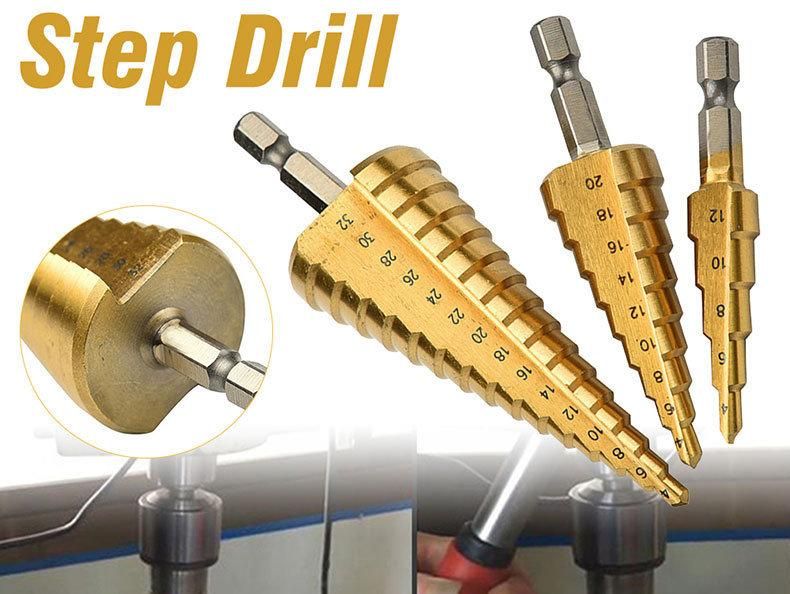

3PCS HSS Drills Set Metric Spiral Flute Titanium Step Drill Bit Set for Metal Tube Sheet Drilling in Wooden Case (SED-SD3-SFW)

SHANGHAI EASYDRILL INDUSTRIAL CO., LTD.
  • Customized：Customized
  • Standard：DIN
  • Length：Jobber-length
  • Type：Core Drill Bit
  • Material：High Speed Steel
  • Usage：Metal Drilling

Base Info

  • Model NO.：SED-SD3-SFW
  • Dia Size：4mm-20mm
  • Production Art：Fully Ground or Forged
  • Min Quantity：100PCS
  • Packaging：Wooden Box
  • Surface Finish：Tin Coated
  • Transport Package：PVC Bag, Blister Card, Plastic Box, Metal Box etc
  • Specification：ISO9001, SGS, CE
  • Trademark：EASYDRILL
  • Origin：China
  • HS Code：820750900
  • Production Capacity：200, 000PCS,Month

Description

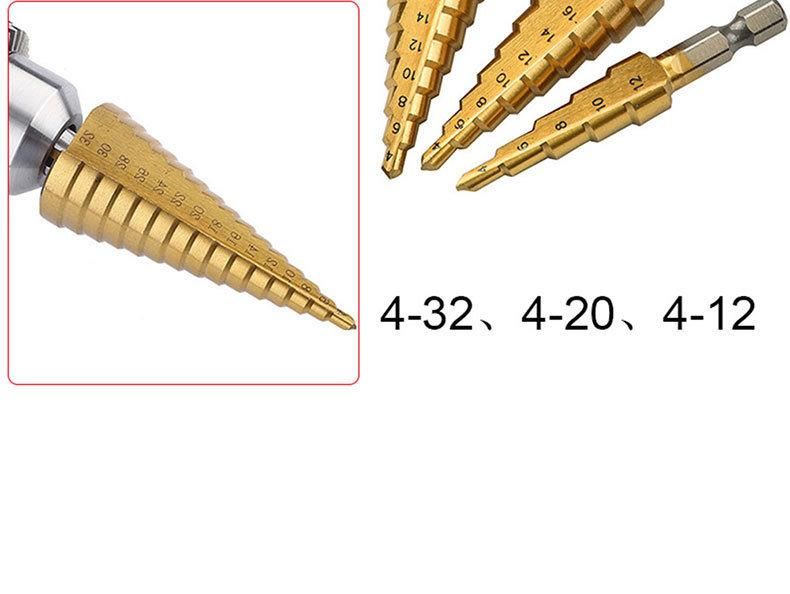

Procuct Name3Pcs Spiral Flute Titanium Step Drill Bit Set for Metal Tube Sheet Drilling in Wooden CaseSize4-12mm, 4-20mm, 4-32mm   (Inch Size is Available)MaterialHSS   (Cobalt M35 is Available)Flute TypeSpiral Flute   (Straight Flute is Available)Flute NumberTwo Flutes   (Single Flute, Three Flutes are Available)Shank Three Flats Shank   (Quick Change Hex Shank, Round Shank, Double R Shank are Available)Surface FinishTiN   (Bright, Black & Amber, Co-coated, Black Oxide, Black & Bright, TiAIN are Available)Package3Pcs in Wooden Case   (Nylon Bag, Plastic Box, Double Blister, Metal Box, Aluminum Case are Available)Features

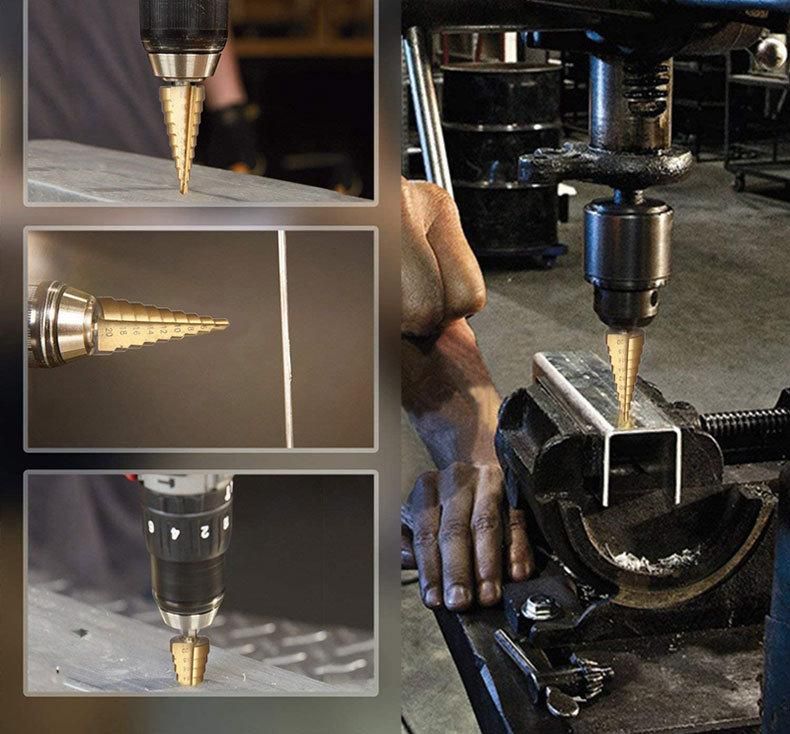

1. Step drill bits are perfect for drilling and enlarging multiple-holes in thin sections of sheet metals, pipes, plexiglass, plastics, wood up to a thickness of 5mm.

2. 135° Split Point Tip: increases cutting speed with self-centering and the drills do not run off center.

3. A variety of hole diameters can be drilled using only one tool.

4. The dimension of drilled hole is exact.

5. Two Flute Design: provides longer life and better chip removal.

6. The Spiral Groove: creates better, less noise, less force has to be used.

7. Titanium coating provides up to 2 times the life over high speed steel.

8. Only for rotary use.
