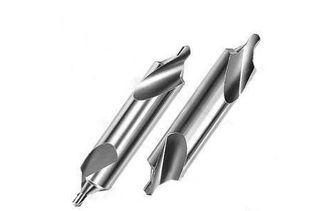

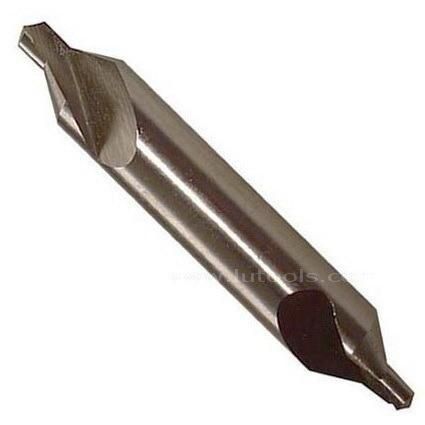

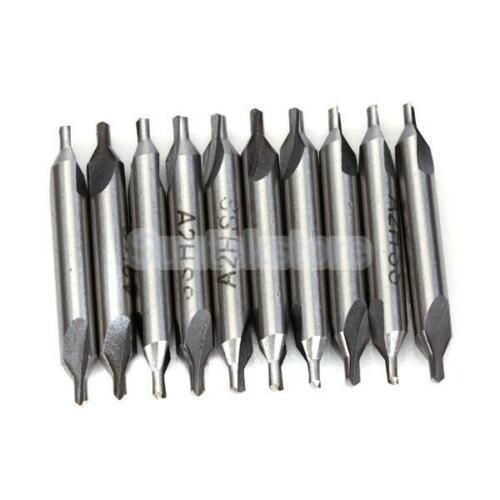

HSS Center Drill Bit Plain Type

Hangzhou Fanxi Tools Co., Ltd.
  • Customized：Non-Customized
  • Type：Center Drill Bit
  • Material：High Speed Steel
  • Usage：Metal Drilling
  • Transport Package：plastic box, hanging bag, blister etc.
  • Specification：1-10mm

Base Info

  • Model NO.：TD-025
  • Trademark：FANXI
  • Origin：P. R. China
  • HS Code：8207509000
  • Production Capacity：20, 000PCS,Month

Description

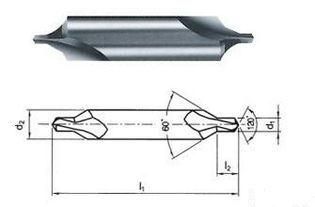

Metric Size: ( DIN333 Type A, Plain Type )
 Drill Dia.Body Dia.Flute LengthOverall Length
 1.0mm3.151.931.5
 1.25mm3.152.231.5
 1.6mm42.835.5
 2.0mm53.340
 2.5mm6.34.145
 3.15mm84.950
 4.0mm106.256
 5.0mm12.57.563
 6.3mm169.271
 8.0mm2011.580
 10.0mm2514.2100Inch Size: ( Plain Type )Size #Drill Dia.Body Dia.Flute LengthOverall Length1#3/64"1/8"3/64"1-1/4"2#5/64"3/16"5/64"1-7/8"3#7/64"1/4"7/64"2"4#1/8"5/16"1/8"2-1/8"4-1/2#9/64"3/8"9/64"2-1/2"5#3/16"7/16"3/16"2-3/4"6#7/32"1/2"7/32"3"7#1/4"5/8"1/4"3-1/4"8#5/16"3/4"5/16"3-1/2"9#11/32"7/8"11/32"3-5/8"10#3/8"1"3/8"3-3/4"
