• Model NO.：TD-015
• Hardness：HRC 65-67 Drilling Bit
• Transport Package：Paper Box, PVC Bag, Plastic Box etc.
• Specification：DIN345
• Trademark：FANXI
• Origin：P. R. China
• HS Code：8207509000
• Production Capacity：20, 000PCS,Month

Basic Info.

Model NO. TD-015 Hardness HRC 65-67 Drilling Bit Transport Package Paper Box, PVC Bag, Plastic Box etc. Specification DIN345 Trademark FANXI Origin P. R. China HS Code 8207509000 Production Capacity 20, 000PCS/Month

Product Description

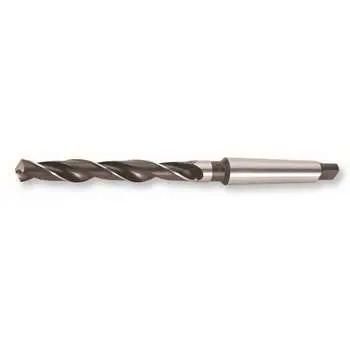

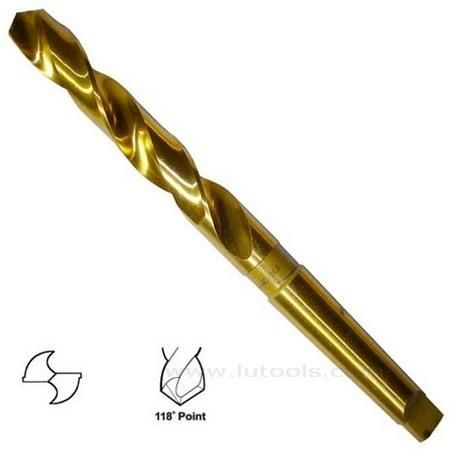

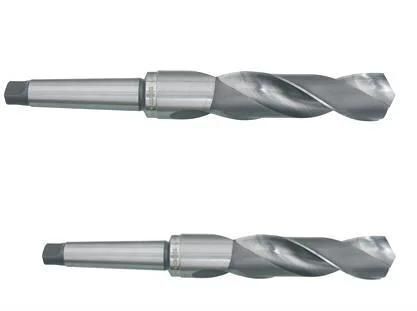

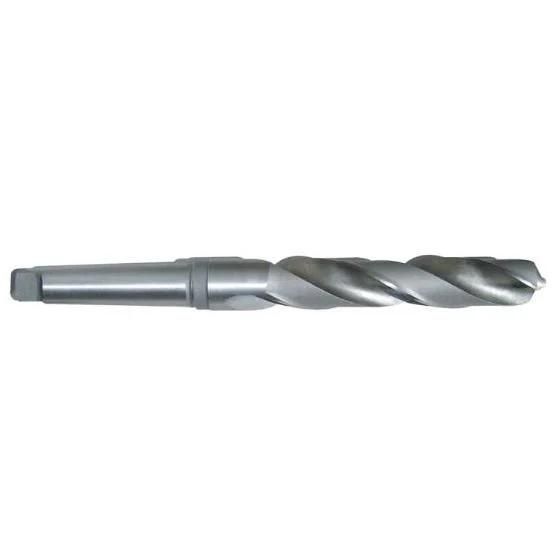

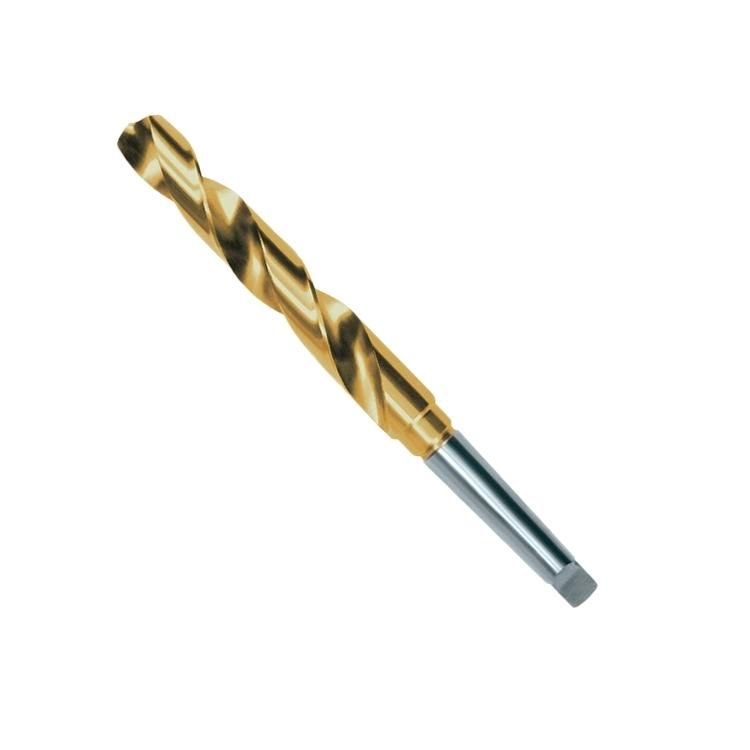

HSS Taper Shank Twist Drill Fully Ground Titanium Coated
Hardened high speed steel body provides additional safeguard, Right hand cutting. Standard two flute design.
Fully ground body, for drilling holes in a variety or normal steel, cast-steel alloyed and unalloyed, grey cast, malleable cast iron, die-cast metal, iron sinter, nickel-silver, graphite cast iron, short-chipping aluminium alloys, bronze and brass.
Point angle ground to 118 degree.
Taper shanks to be used in a taper socket which are sized by the standard morsetaper sizes.
Drill Bits Set are available on request.

Metric Size available ( DIN345 Standard ):
5mm ~ 13.2mm 1# Morse Taper
13.5mm ~ 23.0mm 2# Morse Taper
23.25mm ~ 31.75mm 3# Morse Taper

Inch Size available ( ANSI B94.11M Standard ):
3/16" ~ 15/32" 1# Morse Taper
31/64" ~ 25/32" 2# Morse Taper
51/64" ~ 1-1/16" 3# Morse Taper
1-5/64" ~ 1-1/4" 4# Morse Tape
