• Model NO.：SCY-2350E
• RoHS：Orange
• Transport Package：Woodencase,Carton
• Specification：CE RoHS
• Trademark：CAYKEN
• Origin：Shanghai China
• Production Capacity：200sets Rer Month

Basic Info.

Model NO. SCY-2350E RoHS Orange Transport Package Woodencase/Carton Specification CE RoHS Trademark CAYKEN Origin Shanghai China Production Capacity 200sets Rer Month

Product Description

Product Category: Diamond Drill Series>Velocity adjustable diamond drill series

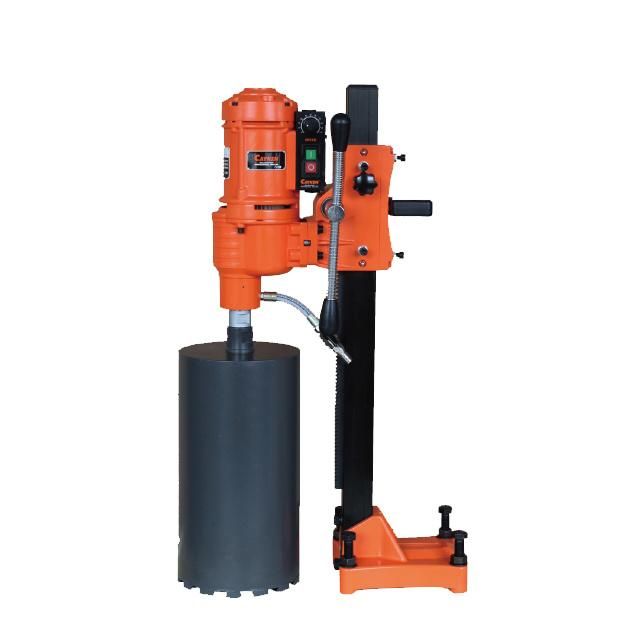

Product Name: SCY-2350E

Drilling range: θ 15-235mm

Rated voltage: 110/220V

Rated frequency: 50-60Hz

Rated input power: 4180W

No-load speed: 0-600r/min


Diamond drill, also called concrete drill is a new type of tool which can drill on RC, brick and stone, rock, China and fireproof materials. It is hold such characteristics as working without dust, high efficiency, smooth wall of hole and accurate size. It is available in many fields of construction, quality-checking, airfield runway, tunnel of road, railroad and railroad bridge.

The velocity-adjustable diamond core drilling machine have function of soft-starting, constant power, overloading protection and steoless speed-regulating, etc.

Product Model	SCY-1800E	SCY-2050E	SCY-2350E	SCY-2550E
Max Drill Range	180MM	205MM	235MM	255MM
Rated Voltage	110/220V	110/220V	110/220V	110/220V
Rated Frequency	50-60HZ	50-60HZ	50-60HZ	50-60HZ
Rared Input Power	3800W	4000W	4180W	4350W
No-Load Speed	0-750RPM	0-700RPM	0-600RPM	0-580RPM
Spindle	1 1/4''-7 UNC	1 1/4''-7 UNC	1 1/4''-7 UNC	1 1/4''7UNC
Max Stroke	500mm	500mm	500mm	500mm
WEIGHT:	22KGS	22KGS	23KGS	25KGS
