• Model NO.：TD-017
• Origin：P. R. China
• HS Code：8207509000
• Production Capacity：20, 000PCS,Month

Basic Info.

Model NO. TD-017 Origin P. R. China HS Code 8207509000 Production Capacity 20, 000PCS/Month

Product Description

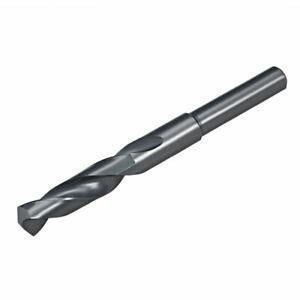

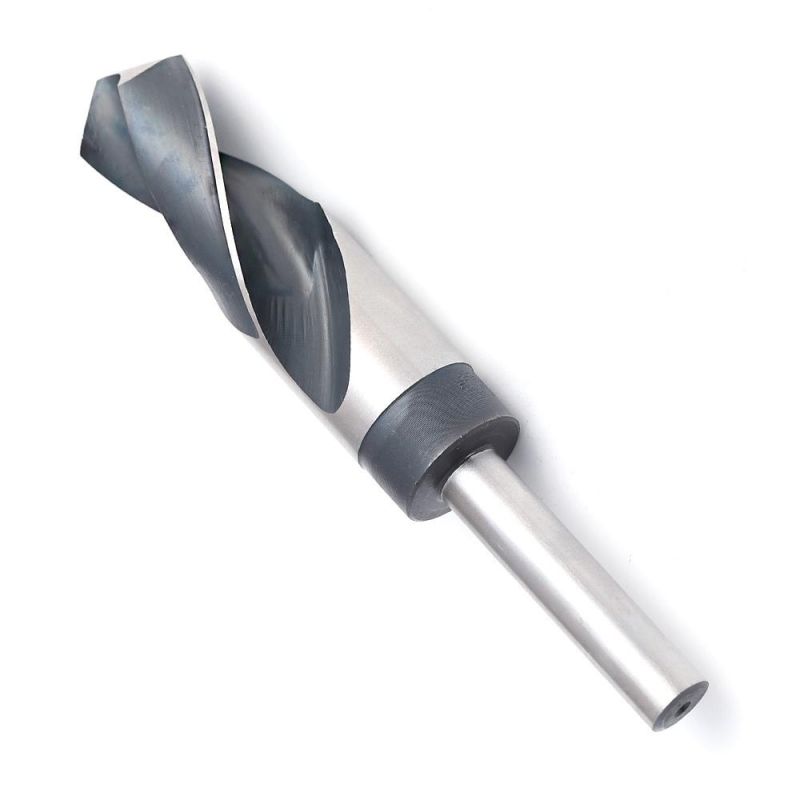

HSS Sliver & Deming Drill Bits 3/4" Reduced Shank
Made from High speed steel, Standard right hand spiral.

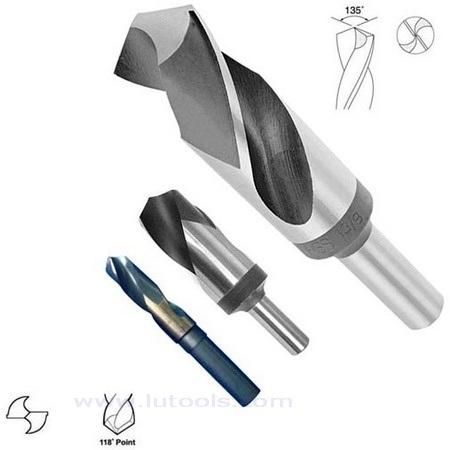

135 degree split point for quick start and no walk application.
118 degree point angle design for general purpose are available on request.
HSS cobalt high speed steel are available on request.

3/4" Reduced Shank Drills are used for drilling holes larger than the capacity of a 3/4" drill chuck. Reduced shank drills should only be used for light to medium duty Drilling applications as they do not have the torque strength of a straight shank drill.
Reduced shank is not as hard as the body of drill to allow more flex and less breakage.
For heavy duty drilling of larger holes requiring reduced diameter straight shank drills, Suitable for most drilling operations in a wide array of materials having low and medium tensile strength ratings.
For machine drilling in ferrous or non-ferrous metals. Ground oxide finish flutes retain lubricants and ease chip welding when drilling cast iron, steel, etc.

Black oxide finish or Bright finish or Titanium Coated are available on request.
Round Shank or 3 Flat Shank are available on request.
Drill Bits Set are available on request.
Size available ( ANSI B94.11M Standard ):
All drills have 3/4" Reduced Shank, 3" Flute Length and 6" Overall Length.
