• Model NO.：PFT090
• Flute Type：U Flute
• Surface Finish：Sand Blasted
• Standard：DIN8035 and ANSI
• Tip Material：Tungsten Carbide
• Tip Type：Single Tip
• Transport Package：Plastic Tube, Hanging Card, PVC Box,Bag
• Specification：TUV, CE, ISO
• Trademark：Perfect
• Origin：Jiangsu Province, China
• HS Code：8205100000
• Production Capacity：5000PCS, Per Day

Product NameHeavy Duty Carbide SingleTip Hex Shank Hammer Drill Bit for Concrete Stone Mable Masonry DrillingBody Material40Cr Steel with Heat TreatmentTip MaterialTungsten Carbide Process

Milled Flutes and Welded Tip

Tip Type

Single Tip   (Cross Head, Centric Tip, X Head  are available)

Shank

Hex Shank   (SDS Plus Shank, SDS Max Shank, Spline Shank,and SDS Tapcon Shank  are available)

Flute Type

U Flute   ( L Flute, S4 Flute are available)

Size

4*110mm - 40*1200mm  (5/32" * 4" to 1 3/4" * 40")

Surface Finish

Sand Blasted

PackageOne Piece in One PVC Pouch Or Plastic Hanger or PVC Tube or PVC Double Blister Features

1.Professional quality for efficient and fast hammer drilling in hard materials like concrete, granite, brick and other similar building materials.

2.Premium carbon steel with heat treatment improves core strength for maximum durability and extended life.

3.Hardened, premium carbide insert tip is strong and stays sharp longer for finer material break up and easier drilling.increases strength and durability.

4.Copper braze material gives high heat resistance for reduced tip loss,Carbide tip securely embedded in the steel body.

5. U flute ensures fast, efficient removal of drilling dust and debris to increase speed and prevent clogging.

6.Wear mark identifies when bit has worn to an inappropriate level for precision anchoring.

7.The Hex drive bits are attached to an electro-pneumatic hammer drill via a hex designed keyless chuck.

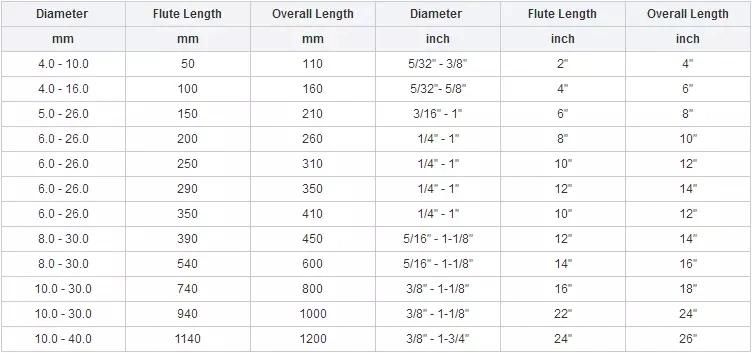

Product Sizes
