Tin Coated Impact Hex Shank Variable Helix Chip Breaker HSS Drill Bit
Xuzhou Perfect Industry Technology Co., Limited- Customized:Customized
- Standard:AISI, DIN338, Jobber Length
- Length:Jobber-length
- Type:Twist Drill Bit
- Material:HSS and HSS Cobalt
- Usage:Metal Drilling, Metal Stainless Steel Aluminium PVC Iron
Base Info
- Model NO.:PFT 071
- Point Angle:Split Point with Chip Breaker
- Surface:Tin-Coated
- Size:1-20mm, 1,16"-1", #1-#90, a-Z
- Processing:Fully Ground
- Shank:Hex Shank
- Transport Package:Metal Box
- Specification:TUV, CE, ISO
- Trademark:Perfect
- Origin:Jiangsu Province, China
- HS Code:8205100000
- Production Capacity:5000PCS, Per Day
Description
DIN338 (Stub DIN1897, Long DIN340, Extra Long DIN1869,
Blacksmith Reduced Shank 10mm, 13mm, DIN345 Taper Shankare Available)
Jobber Length (Stub Screw Machine Length, Long Taper Length, Airctraft Extensoin,
Extra Long 12", 18", 24", Silver & Deming 1/2" Reduced Shank are Available)
135 Split Point With Chip Breaker
(118 Degree Regular Point, Turbo Max Point, Pilot Point are Available)
Hex Shank (Straight Shank, Tri-Flats Shank, Double R Hex Shank, Reduced Shank,
Threaded Hex Shank, Taper Shank are Available)
Variable Helix Type W and Type H
(Slow Spiral Type H, Fast Spiral Type W, Left Hand Spiral are Available)
1.Designed with a Variable Helix that with an aggressive 35° cutting edge which ends at 15°
2.With Rapid Chip Removal to limit heat buildup to Stay Sharper Longer.
3.The 135° split point tip delivers a precision start and prevents walking for fast, accurate holes.
4.Come with a hex shank so you can toss it in your impact driver and go.
5.Taper Connection Hex Shank specifically designed for better grip in a standard drill chuck.

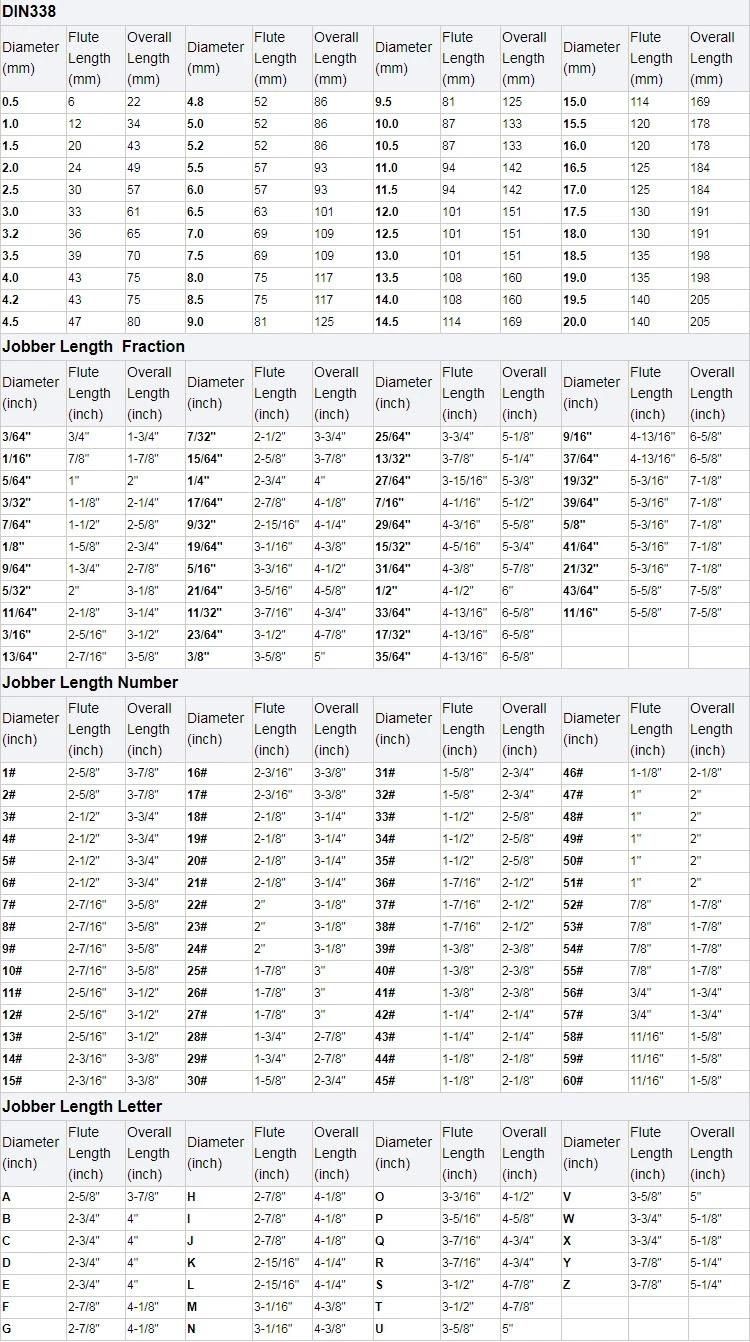

Product sizes

Other specification is also available according to your requirements. (OEM, ODM )
Pls. contact us freely for more information, I will reply you ASAP!
Hope you will enjoy a comfortable cooperation with us!
Shipping
1. FedEx/DHL/UPS/TNT for samples
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.
