Hex Shank Parabolic Flute Heavy Duty HSS Pilot Point Tip Drill Bit for Metal

Xuzhou Perfect Industry Technology Co., Limited
  • Customized：Customized
  • Standard：AISI, Jobber Length
  • Length：Jobber-length
  • Type：Twist Drill Bit
  • Material：HSS Cobalt M35 Co5%
  • Usage：Metal Drilling, Metal Stainless Steel Aluminium PVC Iron

Base Info

  • Model NO.：PFT067
  • Point Angle：118 Degree
  • Surface：Amber Color
  • Size：1,16"-1,2"
  • Processing：Fully Ground
  • Shank：Hex Shank
  • Helix Angle：Type N Spiral Flute Right Hand
  • Transport Package：PVC Pouch,Plastic Box
  • Specification：TUV, CE, ISO
  • Trademark：Perfect
  • Origin：Jiangsu Province, China
  • HS Code：8207509000
  • Production Capacity：5000PCS, Per Day

Description

Procuct NameFully Ground HEX Shank Parabolic Flute  HSS Pilot Point Drill Bit for MetalMaterialHSS   (HSS Cobalt M35 is Available)ProcessFully Ground  (Rolled & Polished, Rolled, Milled are Available)Standard

Jobber Length     (Stub Screw Machine Length, Long Taper Length, Airctraft Extensoin,

                               Extra Long 12", 18", 24", Silver & Deming 1/2" Reduced Shank are Available)

DIN338                  (Stub DIN1897, Long DIN340, Extra Long DIN1869,

                               Blacksmith Reduced Shank 10mm, 13mm, DIN345 Taper Shank are Available)

Size1/16"-1/2"Point TypePilot Point   (118 Degree Regular Point, 135 Degree Split Point, Turbo Max Point are Available)Shank Type

Shank  : Hex Shank  (Striaght Shank, Tri-Flats Shank, Double R Hex Shank, Reduced Shank,

                                Threaded Shank, Taper Shank are Available)

Helix AngleRegular Spiral Type N    (Slow Spiral Type H, Fast Spiral Type W, Left Hand Spiral are Available)Web & Flute TypeHeavy Duty with Parabolic Flute    (Heavy Duty Web with Regular Flute isAvailable)Surface FinishTitanium    (Bright, Black Oxide, Amber Color, Black & Gold, Black & Bright are Available)Package10/5 Pcs in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell.Features1. Pilot Point Tip starts on contact for clean, accurate holes and reduces lock-up on breakthrough.
2. No-Spin Shank eliminates the frustration of bit spinning in the chuck.
3. Tapered web provides greater durability to reduce breaking.
4. Reinforced housing and metal impact plate for blade hook protection and longer life.

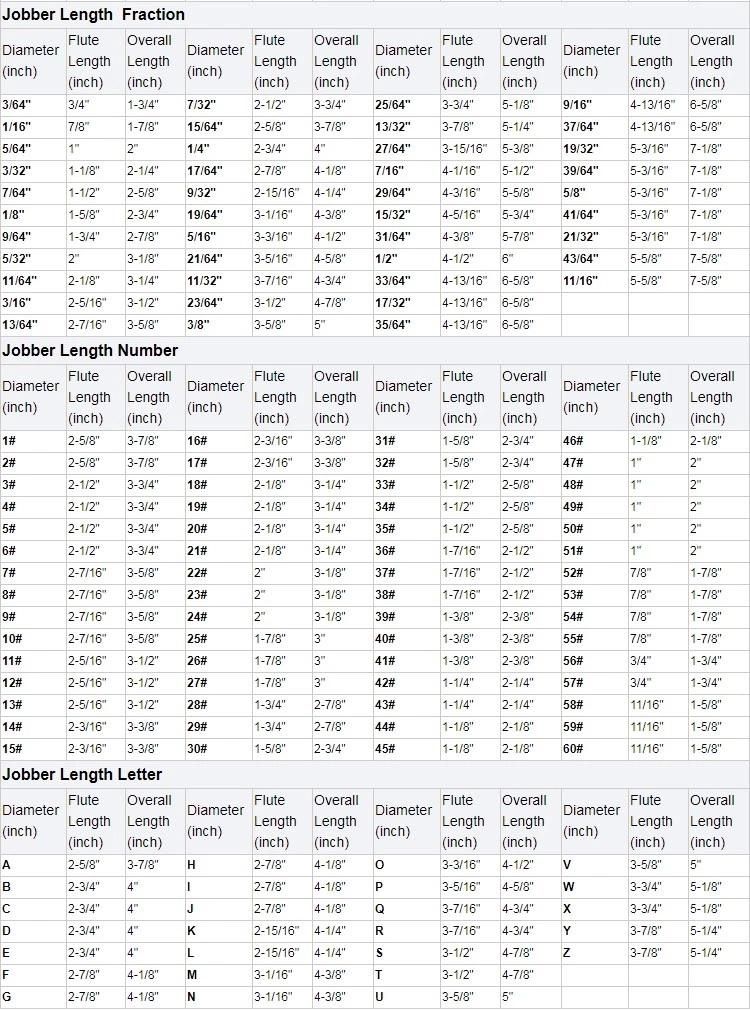

 Product sizes
Hex Shank Parabolic Flute Heavy Duty HSS Pilot Point Tip Drill Bit for Metal
Other specification is also available according to your requirements. (OEM, ODM )
Pls. contact us freely for more information, I will reply you ASAP!
Hope you will enjoy a comfortable cooperation with us!


Shipping
1. FedEx/DHL/UPS/TNT for samples
 2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
 3. Customers specifying freight forwarders or negotiable shipping methods!
 4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.
