• Model NO.：PFT095
• Point Angle：118,135 Degree Split Point
• Surface：Black and Gold
• Size：1-20mm, 1,16"-1,2′′, #1-#90, a-Z
• Processing：Fully Ground
• Shank：Straight Shank
• Helix Angle：Type N Spiral Flute Right Hand
• Application：for Metal Stainless Steel Aluminium PVC Iron Drill
• Transport Package：Metal Box
• Specification：TUV, CE, ISO
• Trademark：Perfect
• Origin：Jiangsu Province, China
• HS Code：8205100000
• Production Capacity：5000PCS, Per Day

Product NameChrome Molybdenum Coated DIN338 Straight Shank HSS Twist Drill BitMaterial HSS  (HSS Cobalt is Available)Process Fully Ground   (Rolled & Polished, Rolled, Milled are Available)Standard

 DIN338               (Stub DIN1897, Long DIN340, Extra Long DIN1869,

                             Blacksmith Reduced Shank 10mm, 13mm, DIN345 Taper Shank are Available)

 Jobber Length  (Stub Screw Machine Length, Long Taper Length, Airctraft Extensoin,

                             Extra Long 12", 18", 24", Silver & Deming 1/2" Reduced Shank are Available)

Size 1 - 20mm, 1/16" - 1" , A - Z, 1# - 90#Point Type 135 Degree Split Point   (118 Degree Regular Point, Turbo Max Point, Pilot Point are Available)Shank Type

  Straight Shank  (Tri-Flats Shank, Hex Shank, Double R Hex Shank, Reduced Shank, Threaded Hex Shank,

                              Taper Shank are Available)

Helix Angle Regular Spiral Type N  (Slow Spiral Type H, Fast Spiral Type W, Left Hand Spiral are Available)Web & Flute Type Regular Web & Flute  (Thick Web with Parabolic Flute, Heavy Duty Web with Regular Flute are Available)Surface Finish Black & Gold  (Bright, Black Oxide, Amber Color, Titanium, Black & Bright are Available)Package 10/5 Pcs in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell.Features

 1.High-speed steel tools are good for most general purpose applications, offering a combination of hardness   and toughness for wear resistance.

 2.Universal 118° point shape for drilling a wide selection of materials.

 3.Precision ground point, flutes, body, clearance and drill diameter for the ultimate in accuracy and performance.
 4.Ground flutes provide fast chip removal to maximize accuracy and efficiency along the full working surface

 of the bit.
 5.DIN 338 jobber series drill bits are ideal for many trade and industrial projects.

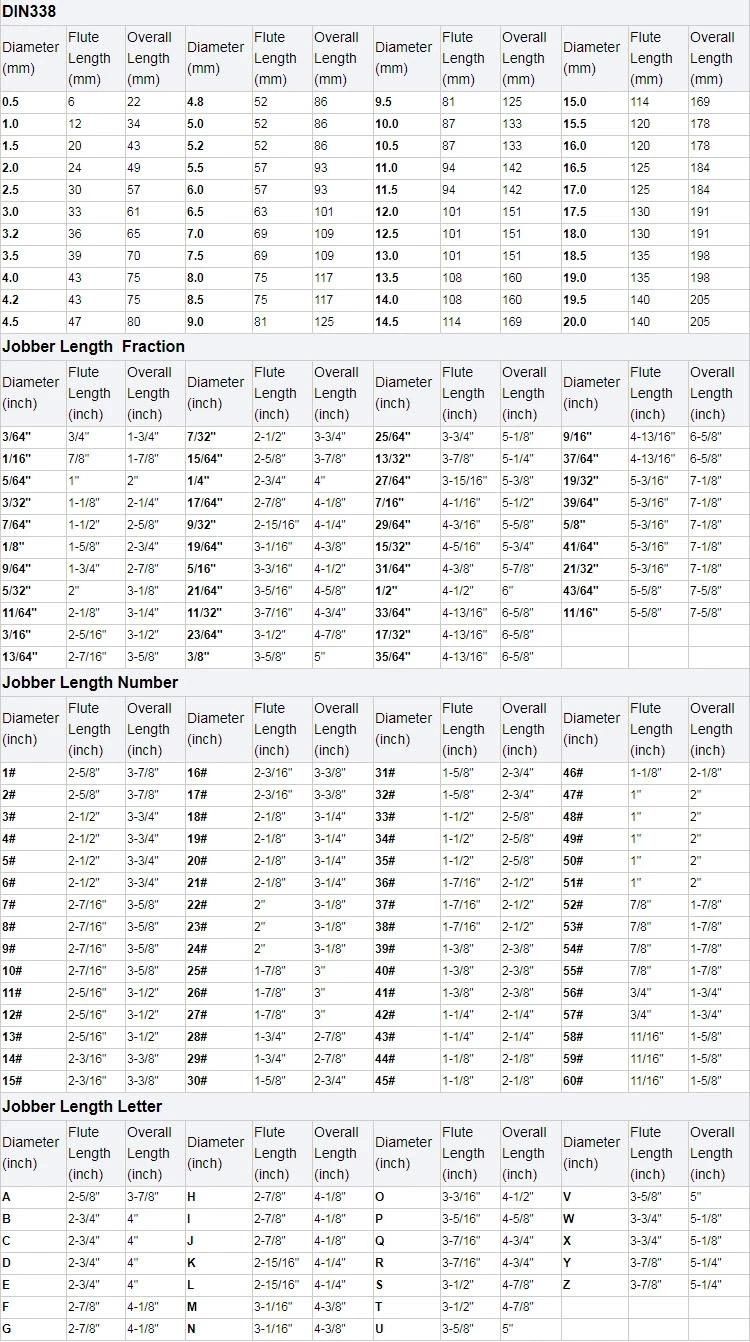

Product sizes:
