• Model NO.：SED-HTRG
• Dia Size：1mm-20mm
• Production Art：Fully Ground or Forged
• Min Quantity：1000PCS,Size
• Packing：PVC Bag,Setcase,Plastic Box,Metal Box
• Surface Finish：Tin-Coated
• Transport Package：PVC Bag, Blister Card, Plastic Box, Metal Box etc
• Specification：ISO9001, SGS, CE
• Trademark：EASYDRILL
• Origin：China
• HS Code：820750900
• Production Capacity：200, 000PCS,Month

Product Name DIN338 Rolled jobber Length HSS twist drill bits with tin-coated for MetalMaterial HSS  (HSS Cobalt is Available)Process Rolled & Polished   (Fully Ground, Roll Forged, Milled are Available)Standard

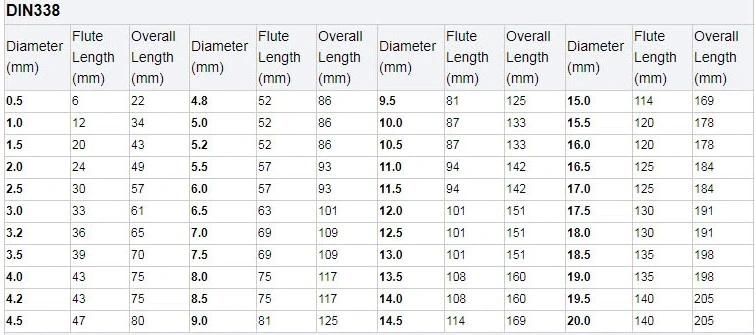

 DIN338                 (Stub DIN1897, Long DIN340, Extra Long DIN1869,

                               Blacksmith Reduced Shank 10mm, 13mm, DIN345 Taper Shank are Available)

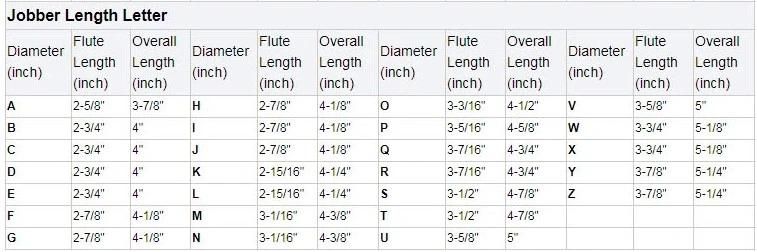

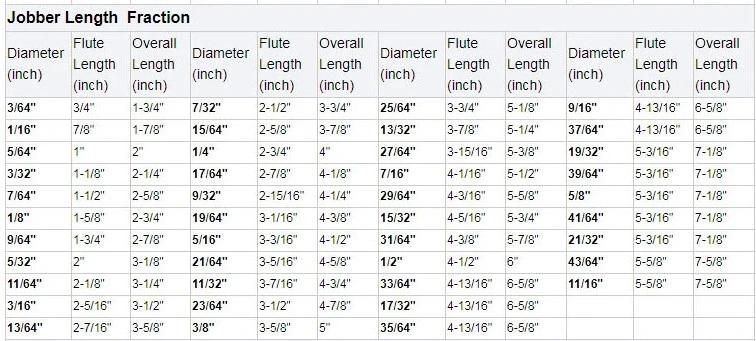

 Jobber Length    (Stub Screw Machine Length, Long Taper Length, Airctraft Extensoin,

                               Extra Long 12", 18", 24", Silver & Deming 1/2" Reduced Shank are Available)

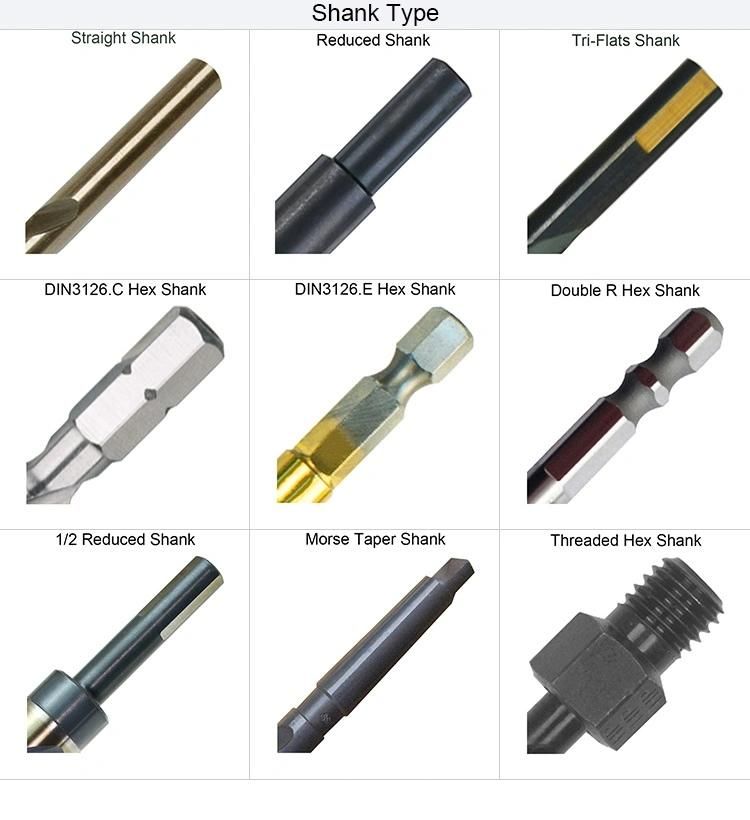

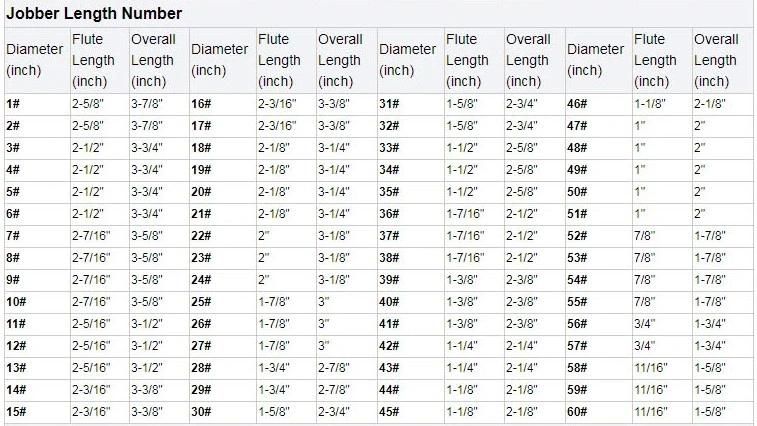

Size 1 - 20mm, 1/16" - 1" , A - Z, 1# - 90#Point Type 118 Degree Regular Point  (135 Degree Split Point, Turbo Max Point, Pilot Point are Available)Shank Type

 Straight Shank      (Hex Shank, Tri-Flats Shank, Double R Hex Shank, Reduced Shank,

                                 Threaded Hex Shank, Taper Shank are Available)

Helix Angle Regular Spiral Type N  (Slow Spiral Type H, Fast Spiral Type W, Left Hand Spiral are Available)Web & Flute Type Regular Web & Flute  (Thick Web with Parabolic Flute, Heavy Duty Web with Regular Flute are Available)Surface Finish Bright  (Black Oxide, Amber Color, Titanium, Black & Gold, Black & Bright are Available)Package 10/5 Pcs in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell.Features

 1.High quality HSS brocas for drilling holes in metal sheet.

 2.Universal 118° point shape for drilling a wide selection of materials.

 3.Precision ground point, flutes, body, clearance and drill diameter for the ultimate in accuracy and performance.
 4.Ground flutes provide fast chip removal to maximize accuracy and efficiency along the full working surface

 of the bit.

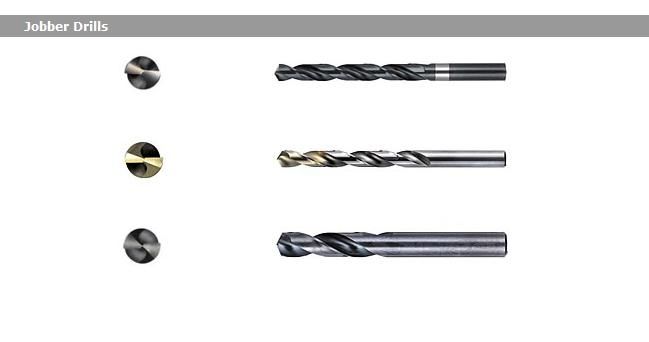

 5.DIN 338 jobber series drill bits are ideal for many trade and industrial projects.
