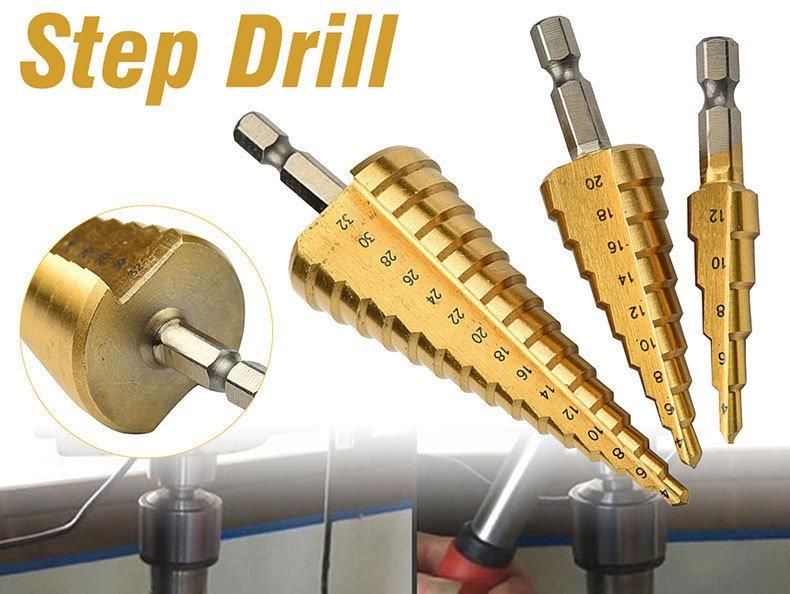

4PCS HSS Drills Metric Titanium HSS Step Drill Bit Set for Sheet Tube Metal Drilling in Wooden Case (SED-SD4-SFW)

SHANGHAI EASYDRILL INDUSTRIAL CO., LTD.
  • Customized：Customized
  • Standard：DIN
  • Length：Jobber-length
  • Type：Center Drill Bit
  • Material：High Speed Steel
  • Usage：Metal Drilling

Base Info

  • Model NO.：SED-SD4-SFW
  • Dia Size：3-12mm, 4-12mm, 4-20mm, 4-32mm
  • Production Art：Fully Ground or Forged
  • Min Quantity：200PCS
  • Packaging：PVC Bag,Setcase,Plastic Box,Metal Box
  • Surface Finish：Tin-Coated
  • Transport Package：PVC Bag, Blister Card, Plastic Box, Metal Box etc
  • Specification：ISO9001, SGS, CE
  • Trademark：EASYDRILL
  • Origin：China
  • HS Code：820750900
  • Production Capacity：20, 000sets,Month

Description

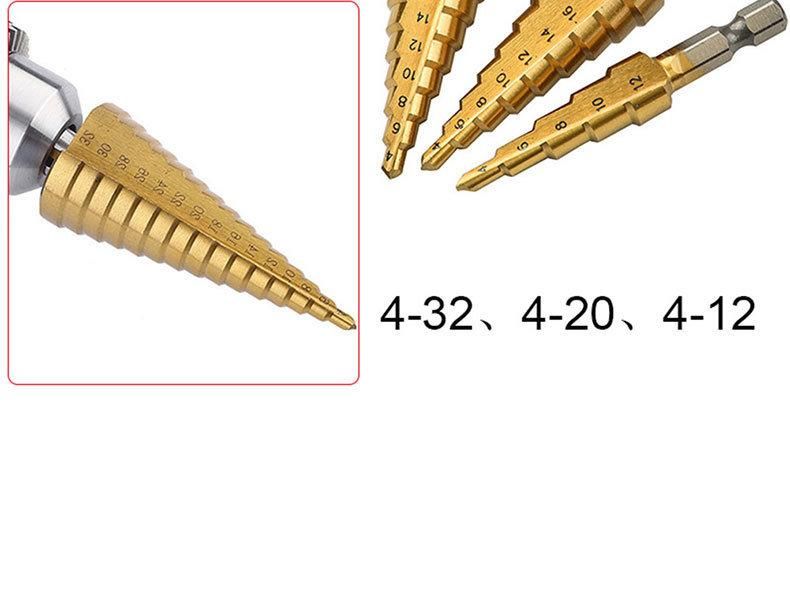

Procuct Name4Pcs 3 Flats Shank Straight Flute Titanium  HSS Step Drill Bit Set for Metal Tube Sheet Drilling in Wooden CaseSize4-12mm, 4-20mm, 4-32mm, 4-39mm// 3-12mm, 4-12mm, 4-20mm, 4-32mmMaterialHSS   (Cobalt M35 is Available)Flute TypeStraight Flute   (Spiral Flute is Available)Flute NumberTwo Flutes   (Single Flute, Three Flutes are Available)Shank Three Flats Shank   (Quick Change Hex Shank, Round Shank, Double R Shank are Available)Surface FinishTiN   (Bright, Black & Amber, Co-coated, Black Oxide, Black & Bright, TiAIN are Available)Package4Pcs in Wooden CaseFeatures

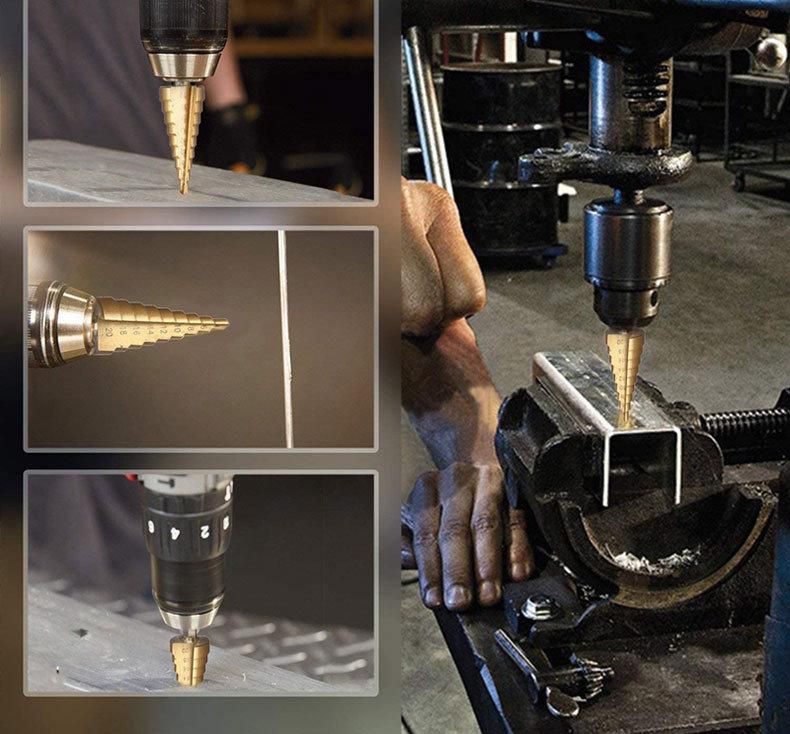

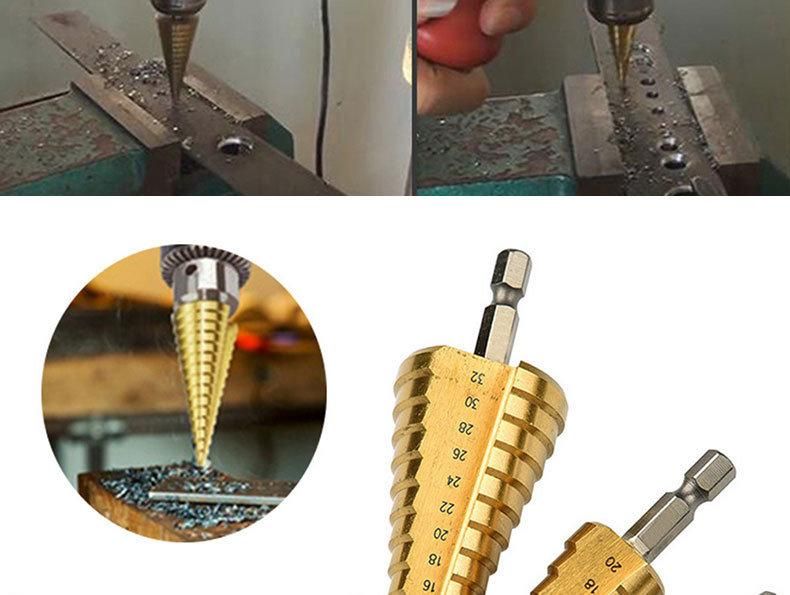

1. Step drill bits are perfect for drilling and enlarging multiple-holes in thin sections of sheet metals, pipes, plexiglass, plastics, wood up to a thickness of 5mm.

2. 135° Spilt Point Tip: increases cutting speed with self-centering and the drills do not run off center.

3. A variety of hole diameters can be drilled using only one tool.

4. The dimension of drilled hole is exact.

5. Two Flute Design: provides longer life and better chip removal.

6. Titanium coating provides up to 2 times the life over high speed steel.

7. Only for rotary use.
