• Model NO.：TD-009
• Transport Package：Paper Bag, Paper Box, PVC Bag, Plastic Box etc.
• Specification：DIN338, DIN340, DIN1897
• Trademark：FANXI
• Origin：P. R. China
• HS Code：8207509000
• Production Capacity：100, 000PCS,Month

Basic Info.

Model NO. TD-009 Transport Package Paper Bag, Paper Box, PVC Bag, Plastic Box etc. Specification DIN338, DIN340, DIN1897 Trademark FANXI Origin P. R. China HS Code 8207509000 Production Capacity 100, 000PCS/Month

Product Description

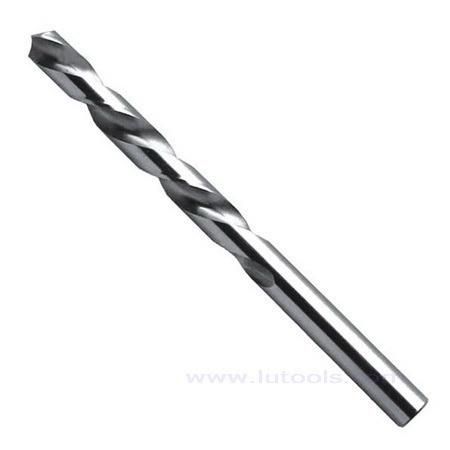

HSS Twist Drill Bits Roll-forged & Polished
Economical high speed steel bit for general drilling.
Hot roll-forged flute with special heat treatment gives additional toughness with increased durability of the drill bit.

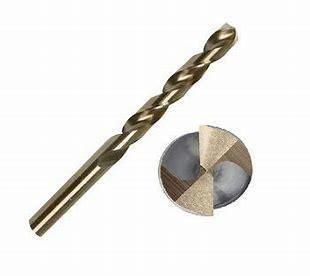

118 degree point angle design for general purpose, or 135 degree split point angle.
Polished flute for the most accurate hole dimensions and high concentricity.
For drilling in steel, cast steel, malleable iron, sintered metal, non-ferrous metal and plastic.
Drill Bits Set are available on request.

Metric Size are available ( DIN338 Standard ):
1.0mm ~ 13.0mm by 0.1mm
Set are available:
1.5 ~ 6.5mm x 13 PCS set
1.0 ~ 10mm x 19 PCS set
1.0 ~ 13mm x 25 PCS set

Inch Size are available ( ANSI B94.11M-1993 Standard ):
Fractional Size: 1/16" ~ 1/2"
Letter Size: A ~ Z
Wire Gage Size: 1# ~ 60#
Set are available:
1/16" ~ 1/4" x 13 PCS set
1/16" ~ 3/8" x 21 PCS set
1/16" ~ 1/2" x 29 PCS set
115 PCS set etc.
