HSS Twist Drill Bits Fully Ground with Black Oxide Finish (TD-005)
Hangzhou Fanxi Tools Co., Ltd.- Type：Twist Drill Bit
- Material：High Speed Steel
- Usage：Metal Drilling
- Shank：Straight Shank
- Transport Package：Paper Bag, Paper Box, Blister, Hanging Bag etc.
- Specification：DIN338
Base Info
- Model NO.：TD-005
- Trademark：FANXI
- Origin：P. R. China
- HS Code：8207509000
- Production Capacity：100, 000PCS,Month
Description
Basic Info.
Model NO. TD-005 Trademark FANXI Origin P. R. China HS Code 8207509000 Production Capacity 100, 000PCS/MonthProduct Description

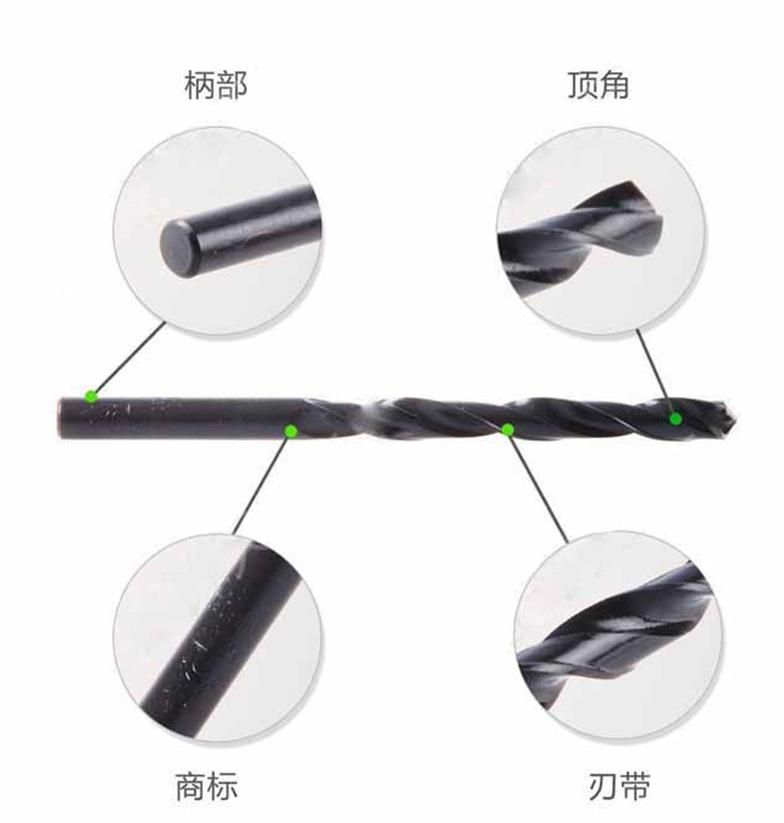

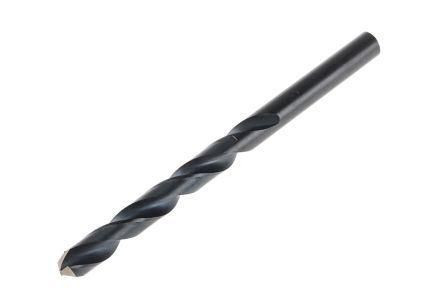

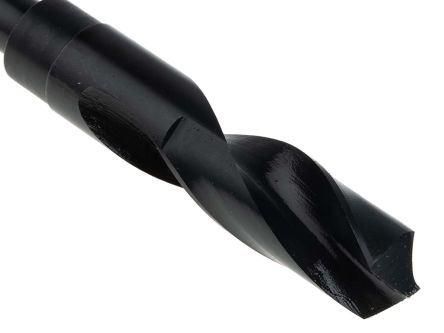

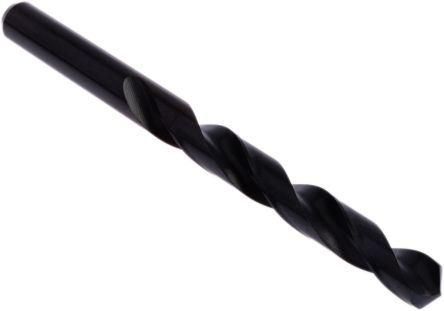

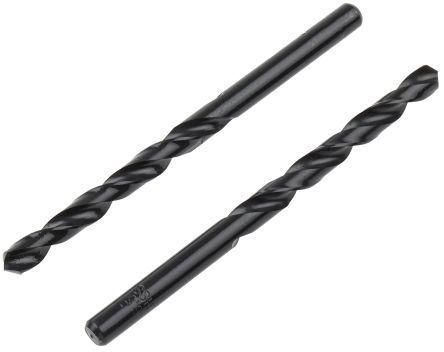

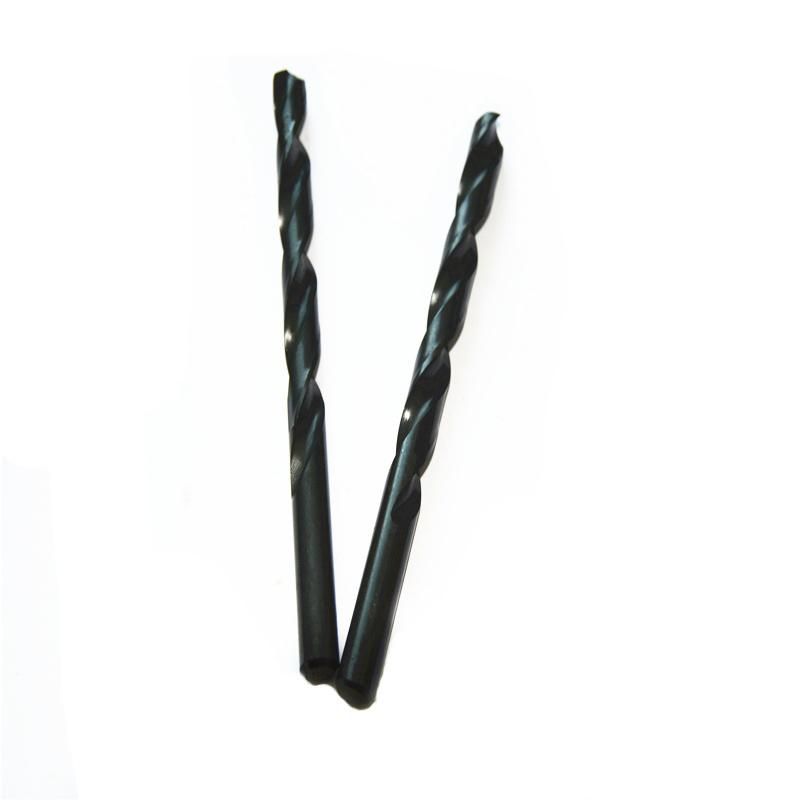

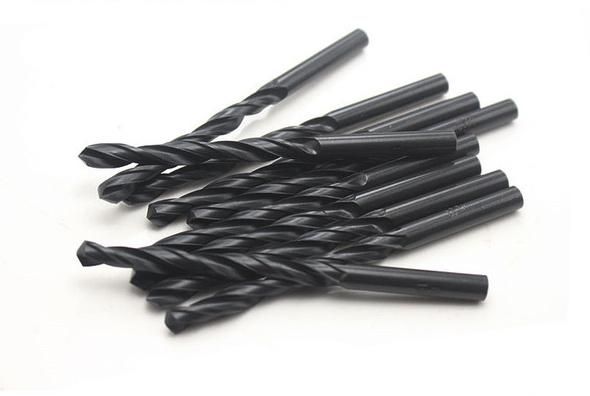

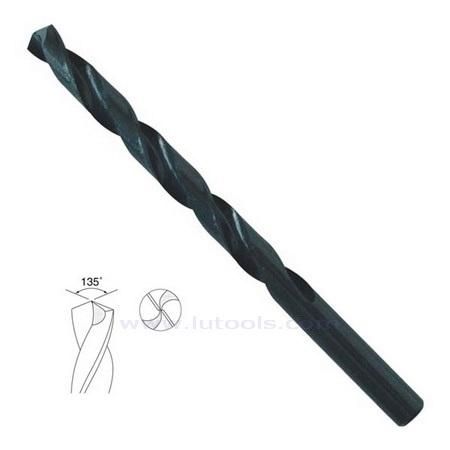

HSS Twist Drill Bits Fully Ground with Black Oxide FinishEconomical high speed steel bit for general drilling.
Hot roll-forged flute with special heat treatment gives additional toughness with increased durability of the drill bit.
118 degree point angle design for general purpose, or 135 degree split point angle.
Black oxide finish for greater resistance to wear.
For drilling in steel, cast steel, malleable iron, sintered metal, non-ferrous metal and plastic.
Drill Bits Set are available on request.
Metric Size are available (DIN338 Standard):
1.0mm ~ 13.0mm by 0.1mm

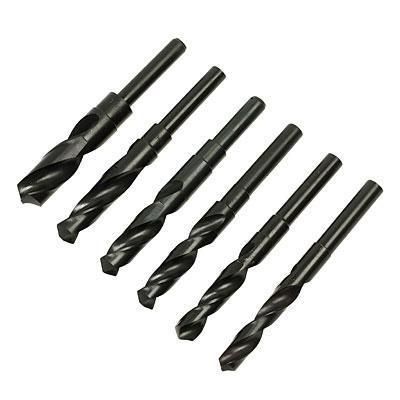

Sets are available:
1.5 ~ 6.5mm x 13 PCS set
1.0 ~ 10mm x 19 PCS set
1.0 ~ 13mm x 25 PCS set
Inch Size are available (ANSI B94.11M-1993 Standard):
Fractional Size: 1/16" ~ 1/2"
Letter Size: A ~ Z
Wire Gage Size: 1# ~ 60#
Set are available:
1/16" ~ 1/4" x 13 PCS set
1/16" ~ 3/8" x 21 PCS set
1/16" ~ 1/2" x 29 PCS set
115 PCS set etc
