SDS-Plus Hammer Drill Bits General Flute

Hangzhou Fanxi Tools Co., Ltd.
  • Length：Jobber-length
  • Type：Twist Drill Bit
  • Material：40cr
  • Usage：Masonry Drilling
  • Transport Package：plastic tube or plastic hanging bag
  • Specification：DIN8035

Base Info

  • Model NO.：HD-001
  • Trademark：FANXI
  • Origin：P. R. China
  • HS Code：8207509000
  • Production Capacity：100, 000PCS,Month

Description

Basic Info.

Model NO. HD-001 Trademark FANXI Origin P. R. China HS Code 8207509000 Production Capacity 100, 000PCS/Month

Product Description

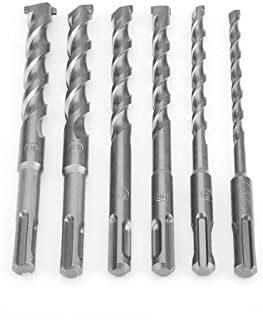

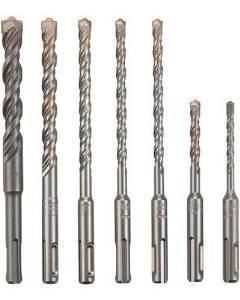

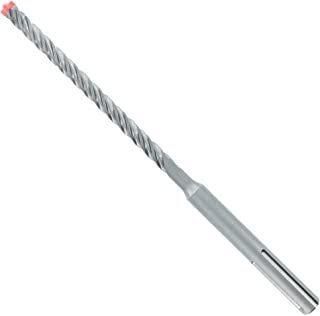

SDS-plus Hammer Drill Bits (General Flute type A)
2 Flute, 2 Cutter
Fit into all hammers with the SDS-plus system.
Extremely robust and wear resistant.
Small land and wide flutes design for less heat build up and maximum dual removal.
Conforms to the demands of the institute for construction engineering.
Value plus quality for efficient and fast hammer drilling in hard materials like concrete, granite, brick and other similar building materials.

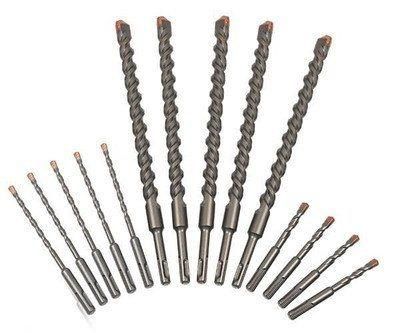

Drill Bits set are available.
Inch size are available too.SDS-Plus Hammer Drill Bits General Flute
DiameterWorking LengthTotal Length
4mm45mm110mm
4mm95mm160mm
5mm45mm110mm
5mm95mm160mm
5mm147mm210mm
5mm247mm310mm
5.5mm45mm110mm
5.5mm95mm160mm
5.5mm147mm210mm
5.5mm197mm260mm
5.5mm247mm310mm
6mm45mm110mm
6mm97mm160mm
6mm147mm210mm
6mm197mm260mm
6mm397mm460mm
6.5mm45mm110mm
6.5mm97mm160mm
6.5mm147mm210mm
6.5mm197mm260mm
7mm45mm110mm
7mm97mm160mm
7mm147mm210mm
8mm45mm110mm
8mm97mm160mm
8mm147mm210mm
8mm197mm260mm
8mm247mm310mm
8mm397mm460mm
8mm545mm610mm
9mm97mm160mm
9mm147mm210mm
10mm45mm110mm
10mm97mm160mm
10mm147mm210mm
10mm197mm260mm
10mm247mm310mm
10mm297mm360mm
10mm397mm460mm
10mm537mm600mm
10mm937mm1000mm
11mm95mm160mm
11mm145mm210mm
11mm195mm260mm
11mm235mm300mm
12mm85mm160mm
12mm135mm210mm
12mm185mm260mm
12mm235mm310mm
12mm385mm460mm
12mm525mm600mm
12mm920mm1000mm
13mm80mm160mm
13mm130mm210mm
13mm180mm260mm
13mm220mm300mm
13mm380mm460mm
14mm80mm160mm
14mm120mm200mm
14mm180mm260mm
14mm220mm300mm
14mm380mm460mm
14mm520mm600mm
14mm920mm1000mm
15mm80mm160mm
15mm120mm200mm
15mm180mm260mm
15mm380mm460mm
16mm80mm160mm
16mm120mm200mm
16mm180mm250mm
16mm230mm300mm
16mm380mm460mm
16mm520mm600mm
16mm720mm800mm
16mm920mm1000mm
17mm120mm200mm
18mm120mm200mm
18mm175mm250mm
18mm220mm300mm
18mm380mm460mm
18mm520mm600mm
18mm920mm1000mm
19mm120mm200mm
19mm380mm460mm
20mm120mm200mm
20mm220mm300mm
20mm380mm460mm
20mm520mm600mm
20mm920mm1000mm
22mm175mm250mm
22mm370mm450mm
22mm520mm600mm
22mm920mm1000mm
24mm175mm250mm
24mm370mm450mm
25mm175mm250mm
25mm370mm450mm
25mm520mm600mm
25mm920mm1000mm
26mm175mm250mm
26mm370mm450mm
28mm370mm450mm
30mm380mm460mm
