T6-131 High Quality Double/Triple Tube Core Barrels
Changsha Miracleland Import & Export Co., Ltd.- Customized:Customized
- Certification:CE, ISO
- Usage:Core Drilling, Mining Exploration
- Material:Carbon Steel
- Condition:New
- Size:T6 Series
Base Info
- Model NO.:T6-131
- Advantage:Strong Compatibility
- Quality:High Quality
- Stability:Good
- Transport Package:in Plywood Case
- Specification:1.5m 3m
- Trademark:csmiracleland
- Origin:Changsha, Hunan, China
- HS Code:8431432000
- Production Capacity:50 Sets,Month
Description
Basic Info.
Model NO. T6-131 Advantage Strong Compatibility Quality High Quality Stability Good Transport Package in Plywood Case Specification 1.5m 3m Trademark csmiracleland Origin Changsha, Hunan, China HS Code 8431432000 Production Capacity 50 Sets/MonthProduct Description

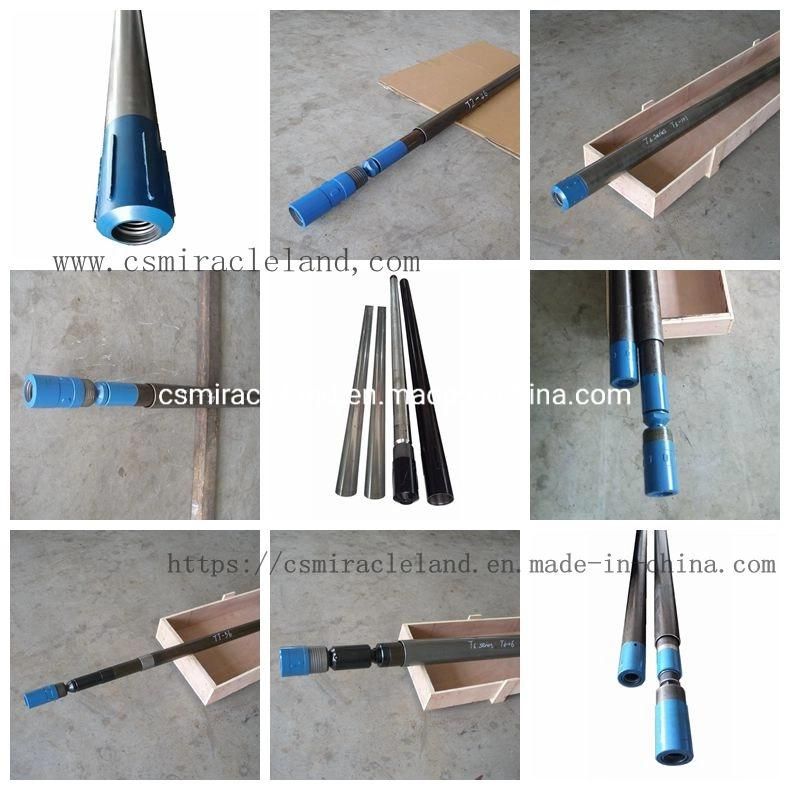

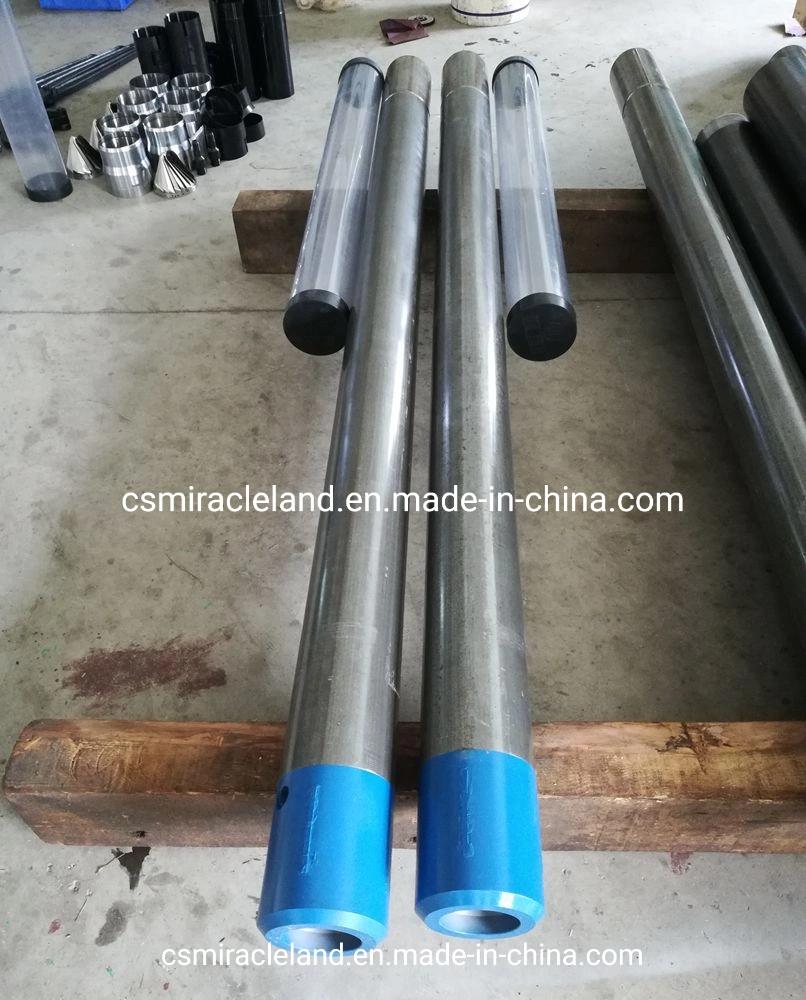

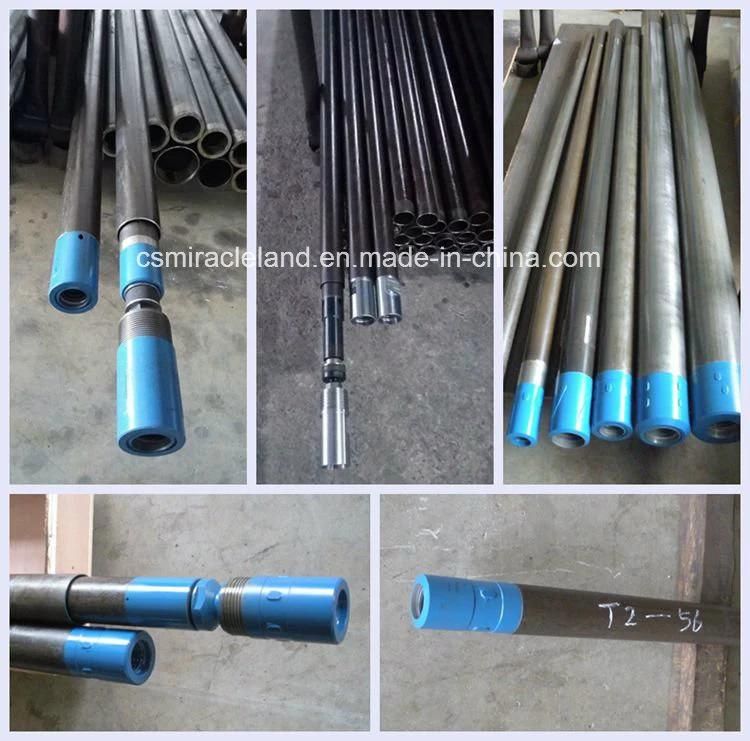

T6 Series Double Tube Core Barrels These are a continuation of the T2 series, but of a sturdier design and available in larger diameters, 76, 86, 101, 116. 131 and 146mm. Also available is the T6H which produces H size hole. They are applied in surface mining and geotechnical drilling.General purpose conventional core barrels designed for coring in soft to hard homogenous and slightly broken formations with water, mud, polymer or air flushing. Although designed as double tube core barrels, all can be converted to triple tube by incorporating PVC coreliners.

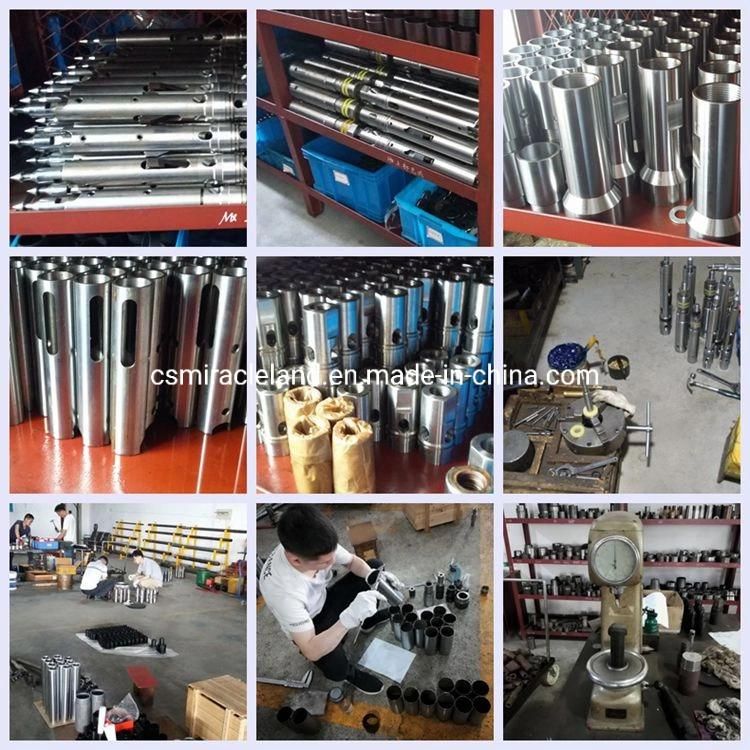

The inner and outer tubes are manufactured to our own specification from cold drawn tube of a very high tensile strength and straightness. The head is manufactured from heat treated alloy steel to ensure a long life.
Size
Core Barrel Size: |
Wireline series: AQ, BQ, NQ, HQ, PQ, PQ3, HQ3, NQ3, BQ3, NQ2, WL-56, WL-66, WL-76 |
T2 series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101 |
TT series: TT 46, TT 56 |
T6 series: T6 76, T6 86, T6 101, T6 116, T6 131, T6 146 |
T6S series: T6S 76, T6S 86, T6S 116, T6S 131, T6S 146 |
B series: B46, B56, B66, B76, B86, B101, B116, B131, B146 |
MLC series: NMLC, HMLC |
LTK series: LTK48, LTK60 |
WF series: HWF, PWF, SWF, UWF, ZWF |
WT series: RWT, EWT, AWT, BWT, NWT, HWT (Single Tube, Double Tube) |
WG series: EWG, AWG, BWG, NWG, HWG (Single Tube, Double Tube) |
WM series: EWM, AWM, BWM, NWM, HWM |
Other sizes: AX, BX, NX, HX, TBW, NQTT, HQTT, TNW, 412F, BTW, TBW, M101 |
