Drilling Tools

Home > Product > Drill Bit

Pgm German Quality Tct Multipurpose Universal Drill Quick Change for Masonry Metal Wood Stone Brick Tile Chipboard Plywood Tile Drilling

ZHENJIANG HTT TOOL CO., LTD.
  • Customized：Customized
  • Standard：DIN
  • Length：60mm to 600mm
  • Type：Twist Drill Bit
  • Material：Tungsten Carbide
  • Usage：Wood Drilling, Metal Drilling, Masonry Drilling

Base Info

  • Model NO.：3380
  • Carbide Tip Type：Ceratizit Bc05
  • Steel Shaft Type：40cr
  • Surface Treatment：Color Flute & Polished Roundness
  • Shank Type：DIN6.35e
  • Flute Type：H
  • Tip Grinding：Diamond Ground Tip 4face Edges
  • Welding Type：AVS. (Automatic Vacuum Soldering)
  • Certificate：Pgm
  • Transport Package：Paper Hanger, PVC Bag, Skin Pack, Blister Pack
  • Specification：3mm to 16mm diameter
  • Trademark：OEM, HTT
  • Origin：China
  • HS Code：8207509000
  • Production Capacity：2400000

Description

Basic Info.

Model NO. 3380 Carbide Tip Type Ceratizit Bc05 Steel Shaft Type 40cr Surface Treatment Color Flute & Polished Roundness Shank Type DIN6.35e Flute Type H Tip Grinding Diamond Ground Tip 4face Edges Welding Type AVS. (Automatic Vacuum Soldering) Certificate Pgm Transport Package Paper Hanger, PVC Bag, Skin Pack, Blister Pack Specification 3mm to 16mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 2400000

Product Description

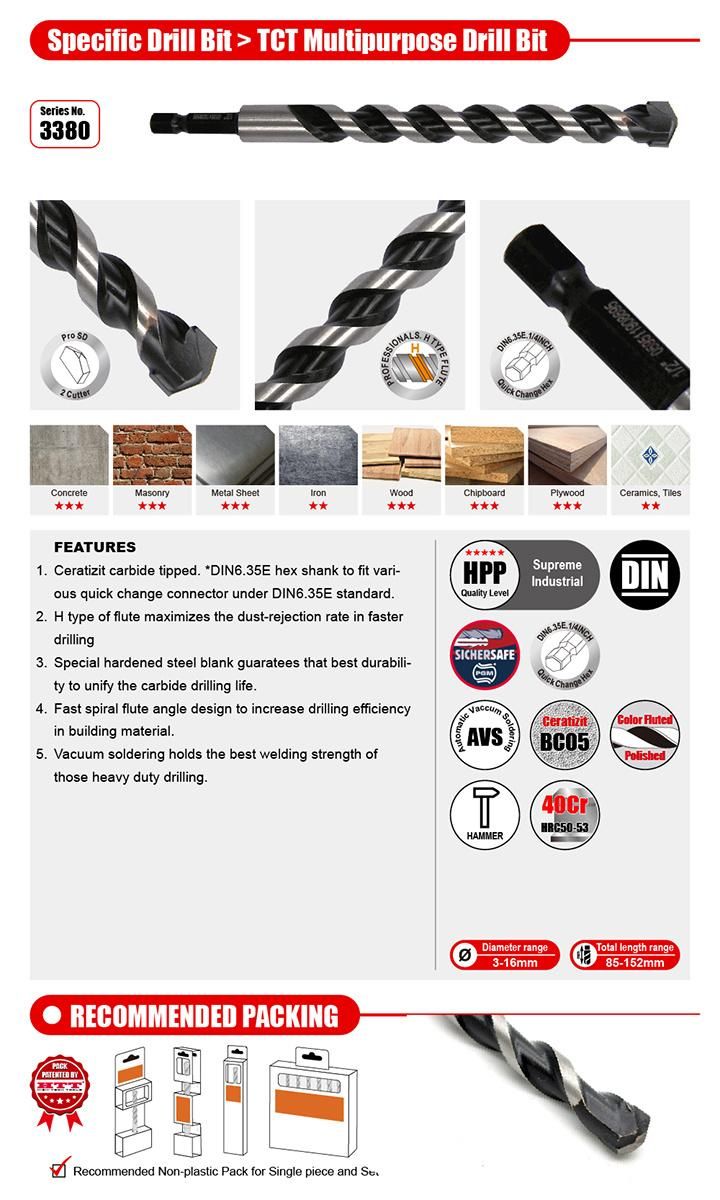

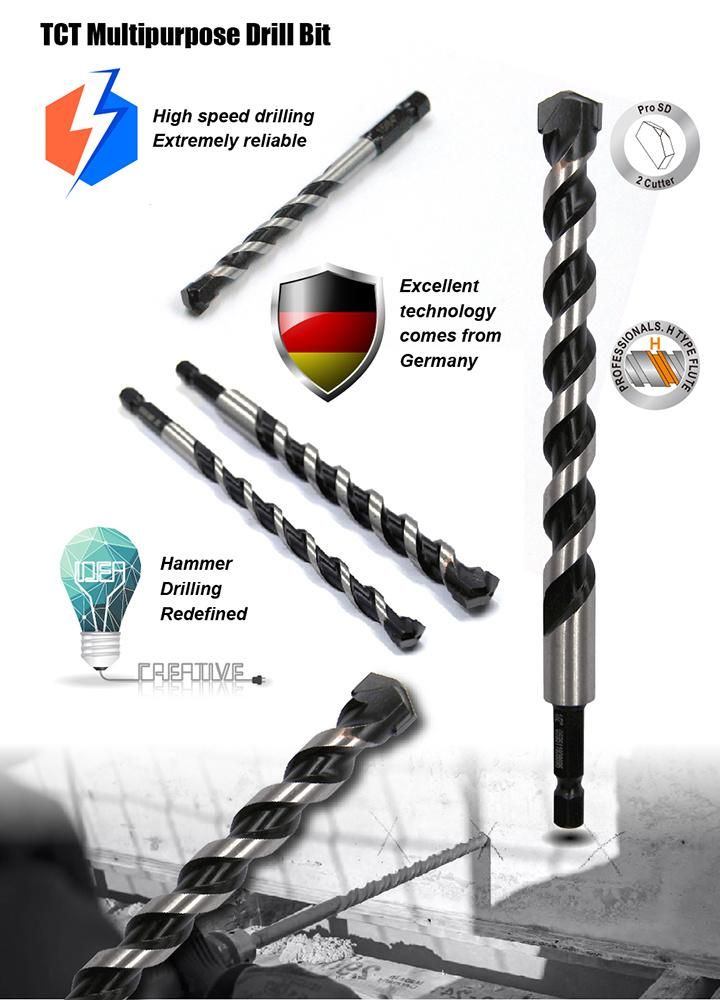

*TCT Universal Drill Bit with DIN6.35E quick-change hex shank, color fluted, and polished roundness for multi-purpose drilling symbol, Ceratizit BC05 carbide tipped with AVS. technology on Supreme HPP quality performance.

*Diamond ground special angle and sharp edges guarantee the cutting performance in the different materials on higher speed and constant stability.

*Carbide tips are supplied by Ceratizit made in Luxemburg to guarantee higher durability and wear resistance.

*H flute design maximizes the drilling dust rejection rate to fast the drilling speed with more comfortable operation feelings.

*1PC structure of quick-change drill bit, not attached hex shank to guarantee the Lower vibration for an easy longer-time drilling job and max. torque strength.

*DIN6.35E (1/4 quick-change hex) shank design avoids the chuck slipping on the drill shank and guarantees the best torque while drilling stones. It fits all of those DIN6.35E quick-change connectors and chucks of those power drills.

* SGS-approved anti-rust oil treatment to protect the final users under Reach standard.

* PGM certificated carbide size, carbide welded symmetry, and rotary run-out straightness for industrial professional applications.
Pgm German Quality Tct Multipurpose Universal Drill Quick Change for Masonry Metal Wood Stone Brick Tile Chipboard Plywood Tile DrillingPgm German Quality Tct Multipurpose Universal Drill Quick Change for Masonry Metal Wood Stone Brick Tile Chipboard Plywood Tile DrillingPgm German Quality Tct Multipurpose Universal Drill Quick Change for Masonry Metal Wood Stone Brick Tile Chipboard Plywood Tile DrillingPgm German Quality Tct Multipurpose Universal Drill Quick Change for Masonry Metal Wood Stone Brick Tile Chipboard Plywood Tile DrillingPgm German Quality Tct Multipurpose Universal Drill Quick Change for Masonry Metal Wood Stone Brick Tile Chipboard Plywood Tile Drilling
*Other special sizes are also available on the customers' special requests.
Item NumberDiameter(mm)Working Length(mm)Overall Length(mm)
3380.030060 32560
3380.030070 33070
3380.030085 34085
3380.030090 35090
3380.030095 35095
3380.030100 350100
3380.030152 3100152
3380.035060 3.52560
3380.035070 3.53070
3380.035085 3.54085
3380.040075 43075
3380.040085 44085
3380.040090 45090
3380.040100 460100
3380.040105 460105
3380.040150 4110150
3380.040180 4130180
3380.045085 4.54085
3380.045090 4.54590
3380.045150 4.5110150
3380.050085 54085
3380.050090 54590
3380.050095 55095
3380.050100 560100
3380.050105 560105
3380.050150 5110150
3380.050180 5130180
3380.050250 5200250
3380.050300 5250300
3380.050400 5260400
3380.050500 5360500
3380.055085 5.54085
3380.055090 5.55090
3380.055095 5.55095
3380.055100 5.560100
3380.055150 5.5110150
3380.060085 64085
3380.060090 65090
3380.060100 660100
3380.060115 665115
3380.060150 6110150
3380.060200 6130200
3380.060250 6180250
3380.060300 6230300
3380.060400 6340400
3380.060600 6460600
3380.065100 6.560100
3380.065115 6.565115
3380.065150 6.5110150
3380.065200 6.5130200
3380.065250 6.5180250
3380.065300 6.5230300
3380.065400 6.5340400
3380.070090 75090
3380.070100 760100
3380.070120 780120
3380.070150 7110150
3380.070300 7230300
3380.070400 7340400
3380.070500 7360500
3380.080100 860100
3380.080120 880120
3380.080125 880125
3380.080150 8110150
3380.080200 8130200
3380.080260 8190260
3380.080300 8230300
3380.080400 8340400
3380.080600 8460600
3380.090120 980120
3380.090150 9110150
3380.095120 9.580120
3380.095150 9.5110150
3380.100120 1080120
3380.100150 10110150
3380.100200 10135200
3380.100260 10190260
3380.100300 10230300
3380.100400 10340400
3380.100600 10460600
3380.110120 1180120
3380.110150 11110150
3380.120130 1280130
3380.120150 1290150
3380.120200 12150200
3380.120260 12150260
3380.120300 12230300
3380.120400 12340400
3380.120600 12460600
3380.130130 1380130
3380.130160 1390150
3380.140150 1490150
3380.140200 14135200
3380.140260 14200260
3380.140300 14230300
3380.140400 14340400
3380.140600 14460600
3380.160150 1690150
3380.160200 16135200
3380.160250 16200260
3380.160300 16230300
3380.160400 16340400
3380.160600 16460600
